2015 Bmw X3 Bolt Pattern 5x120

Wheel and tire specifications for the Bmw X3 2015. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Bmw X3

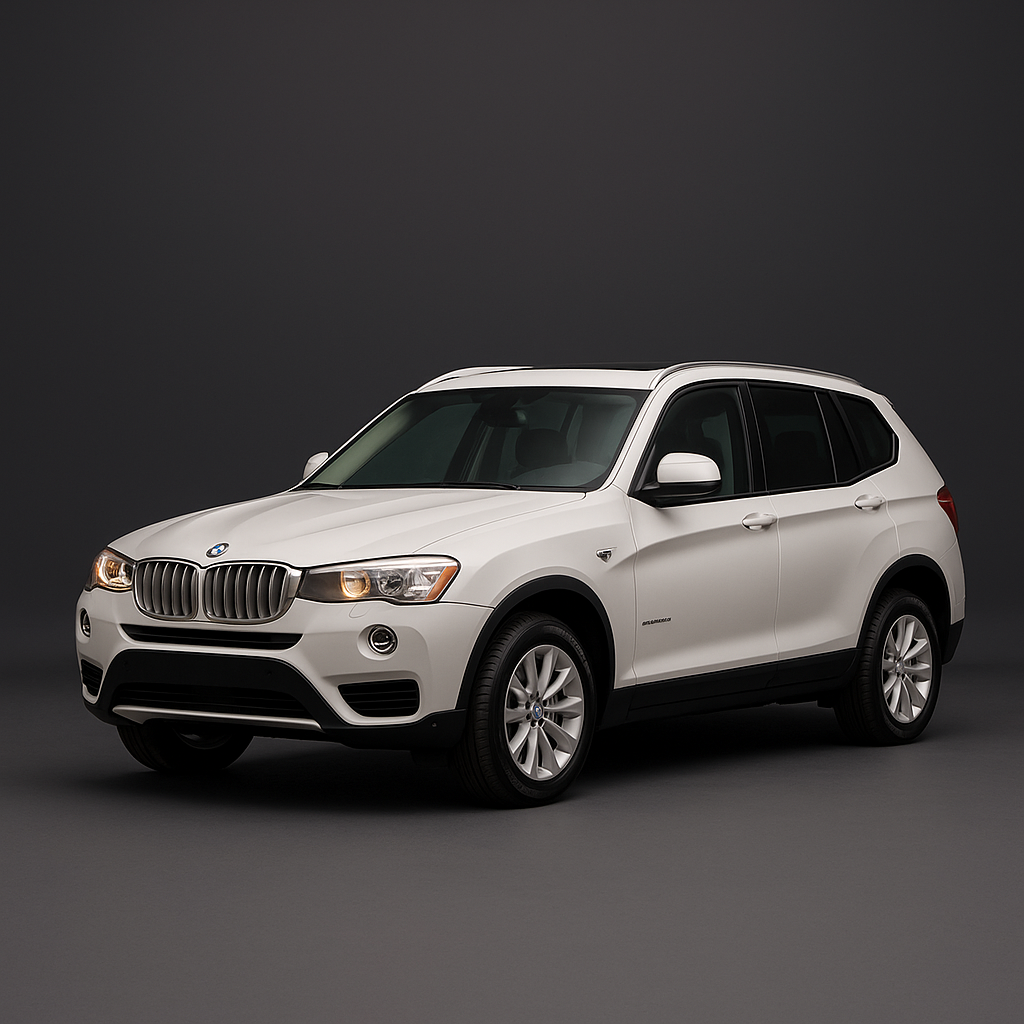

✨ AI-generated image for reference only

Vehicle Info

Bmw X3 2015
Generation
F25 LCI (2014–2017)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Bolt pattern, hub bore, lug count, thread size, and torque are common across all sDrive28i (RWD), xDrive28i, xDrive28d, and xDrive35i trims. Differences are in OE wheel/tire sizing.

Wheel Specifications

Bolt pattern
5x120
Center bore
72.6 mm
Thread size
M14 x 1.25
Torque
140 Nm
Lugs
5
Fastener type
lug bolts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.518x819x8.519x920x8.520x9

Wheel & tire specs guide — Bmw X3 2015

The 2015 Bmw X3 features a 5x120 bolt pattern, meaning it has 5 lug nuts arranged on a 120mm diameter circle, the center bore measures 72.6mm, the wheels are secured with M14 x 1.25 threaded lug nuts torqued to 140 Nm.

Bolt pattern, hub bore, lug count, thread size, and torque are common across all sDrive28i (RWD), xDrive28i, xDrive28d, and xDrive35i trims. Differences are in OE wheel/tire sizing.

From the factory, the Bmw X3 2015 is offered with OEM tires in the following sizes: 225/60R17, 245/50R18, 245/45R19, 275/40R19, 245/40R20, 275/35R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
