2010 Chevrolet Equinox Bolt Pattern 5x120

Wheel and tire specifications for the Chevrolet Equinox 2010. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Chevrolet Equinox

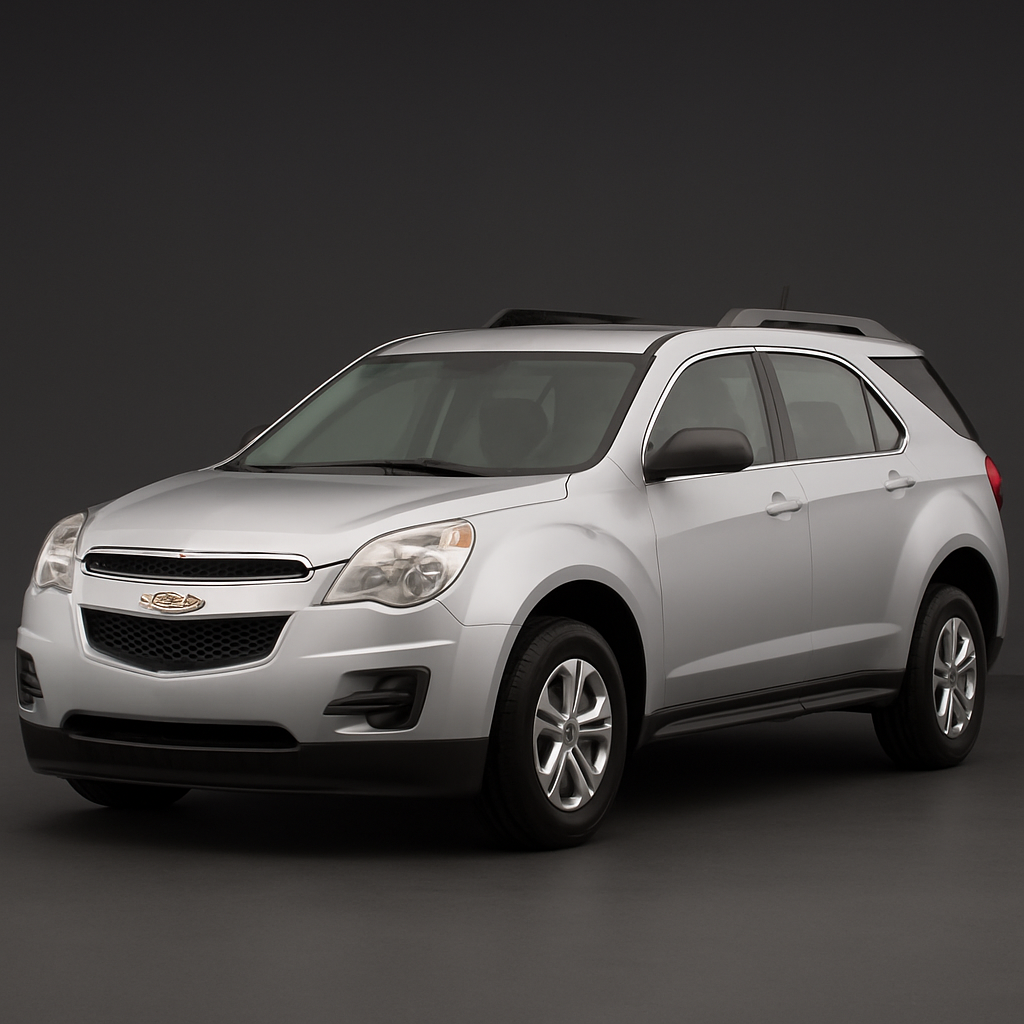

✨ AI-generated image for reference only

Vehicle Info

Chevrolet Equinox 2010
Generation
2nd Generation (2010–2015)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel hardware specifications (bolt pattern, center bore, stud thread, and lug count) do not vary by trim or drivetrain (2WD/4WD). Lug nut torque is commonly 136 Nm, but some sources indicate 170 Nm; verify with owner's manual.

Wheel Specifications

Bolt pattern
5x120
Center bore
66.9 mm
Thread size
M14 x 1.5
Torque
170 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x718x719x7

Wheel & tire specs guide — Chevrolet Equinox 2010

The 2010 Chevrolet Equinox features a 5x120 bolt pattern, meaning it has 5 lug nuts arranged on a 120mm diameter circle, the center bore measures 66.9mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 170 Nm.

Wheel hardware specifications (bolt pattern, center bore, stud thread, and lug count) do not vary by trim or drivetrain (2WD/4WD). Lug nut torque is commonly 136 Nm, but some sources indicate 170 Nm; verify with owner's manual.

From the factory, the Chevrolet Equinox 2010 is offered with OEM tires in the following sizes: 225/65R17, 235/55R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
