2014 Chevrolet Equinox Bolt Pattern 5x120

Wheel and tire specifications for the Chevrolet Equinox 2014. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Chevrolet Equinox

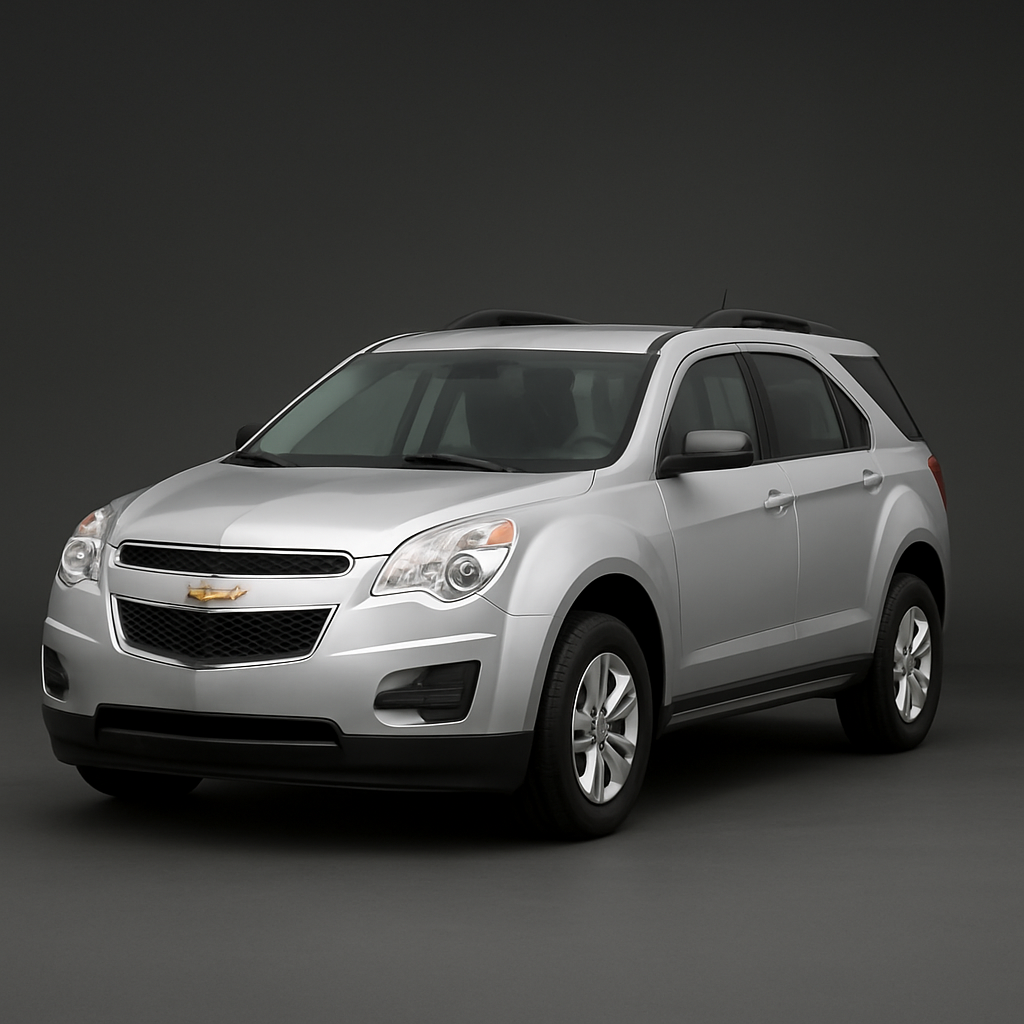

✨ AI-generated image for reference only

Vehicle Info

Chevrolet Equinox 2014
Generation
Second Generation (2010–2017)
Trim
Standard
Modification
AI Verified Specs
Note

All 2014 Equinox trims (FWD and AWD) use the same bolt pattern, hub bore, thread size, and lug count. Tire size and wheel diameter vary by trim and optional packages.

Wheel Specifications

Bolt pattern
5x120
Center bore
66.9 mm
Thread size
M14 x 1.5
Torque
190 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x718x719x7

Wheel & tire specs guide — Chevrolet Equinox 2014

The 2014 Chevrolet Equinox features a 5x120 bolt pattern, meaning it has 5 lug nuts arranged on a 120mm diameter circle, the center bore measures 66.9mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 190 Nm.

All 2014 Equinox trims (FWD and AWD) use the same bolt pattern, hub bore, thread size, and lug count. Tire size and wheel diameter vary by trim and optional packages.

From the factory, the Chevrolet Equinox 2014 is offered with OEM tires in the following sizes: 225/65R17, 235/55R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
