2012 Chevrolet Suburban Bolt Pattern 6x139.7

Wheel and tire specifications for the Chevrolet Suburban 2012. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Chevrolet Suburban

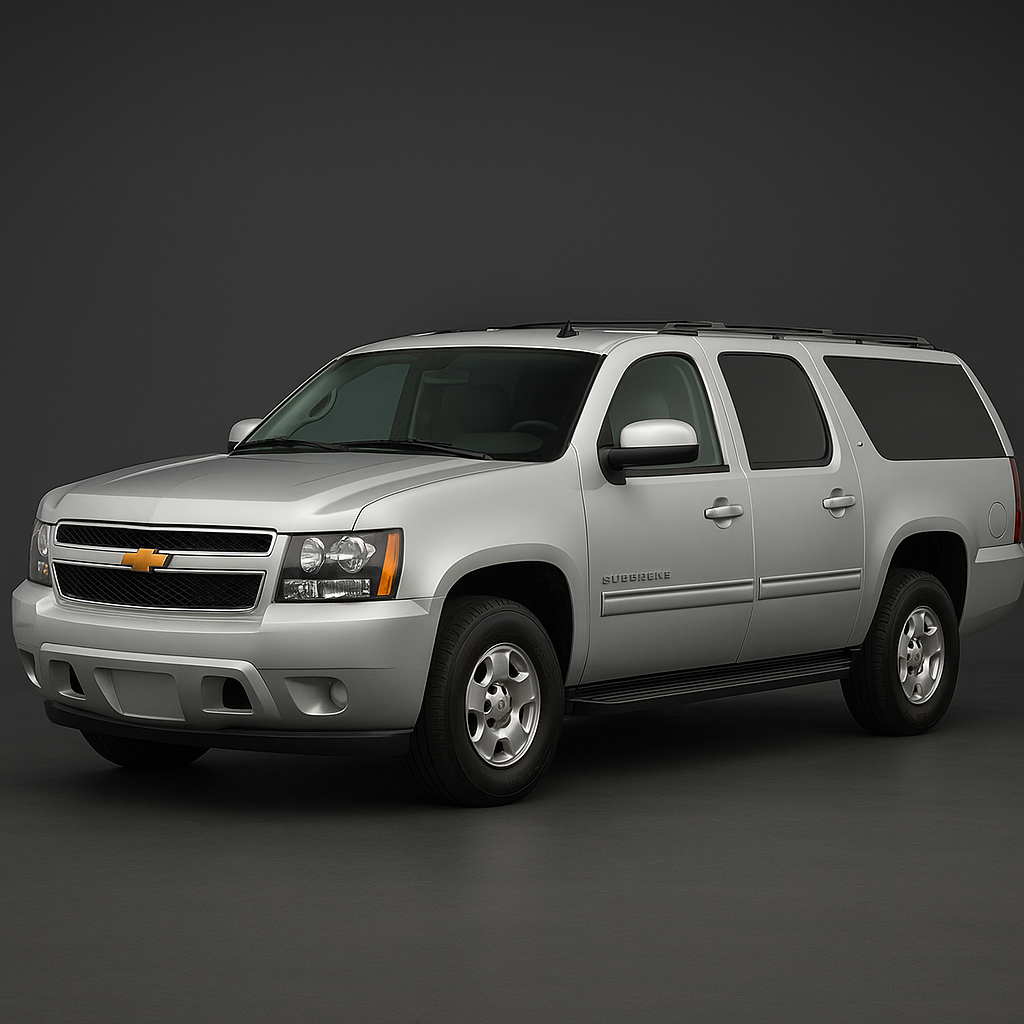

✨ AI-generated image for reference only

Vehicle Info

Chevrolet Suburban 2012
Generation
10th Generation (2007–2014)
Trim
Suburban 1500
Modification
AI Verified Specs
Note

Specifications are for the 1500 (half-ton) model, which includes both 2WD and 4WD variants. The Suburban 2500 (three-quarter-ton) model uses an 8x165.1 mm bolt pattern and 8 lugs.

Wheel Specifications

Bolt pattern
6x139.7
Center bore
78.1 mm
Thread size
M14 x 1.5
Torque
190 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.518x820x8.522x9

Wheel & tire specs guide — Chevrolet Suburban 2012

The 2012 Chevrolet Suburban features a 6x139.7 bolt pattern, meaning it has 6 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 78.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 190 Nm.

Specifications are for the 1500 (half-ton) model, which includes both 2WD and 4WD variants. The Suburban 2500 (three-quarter-ton) model uses an 8x165.1 mm bolt pattern and 8 lugs.

From the factory, the Chevrolet Suburban 2012 is offered with OEM tires in the following sizes: 265/70R17, 265/65R18, 275/55R20, 285/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
