2021 Ford Expedition Bolt Pattern 6x135

Wheel and tire specifications for the Ford Expedition 2021. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ford Expedition

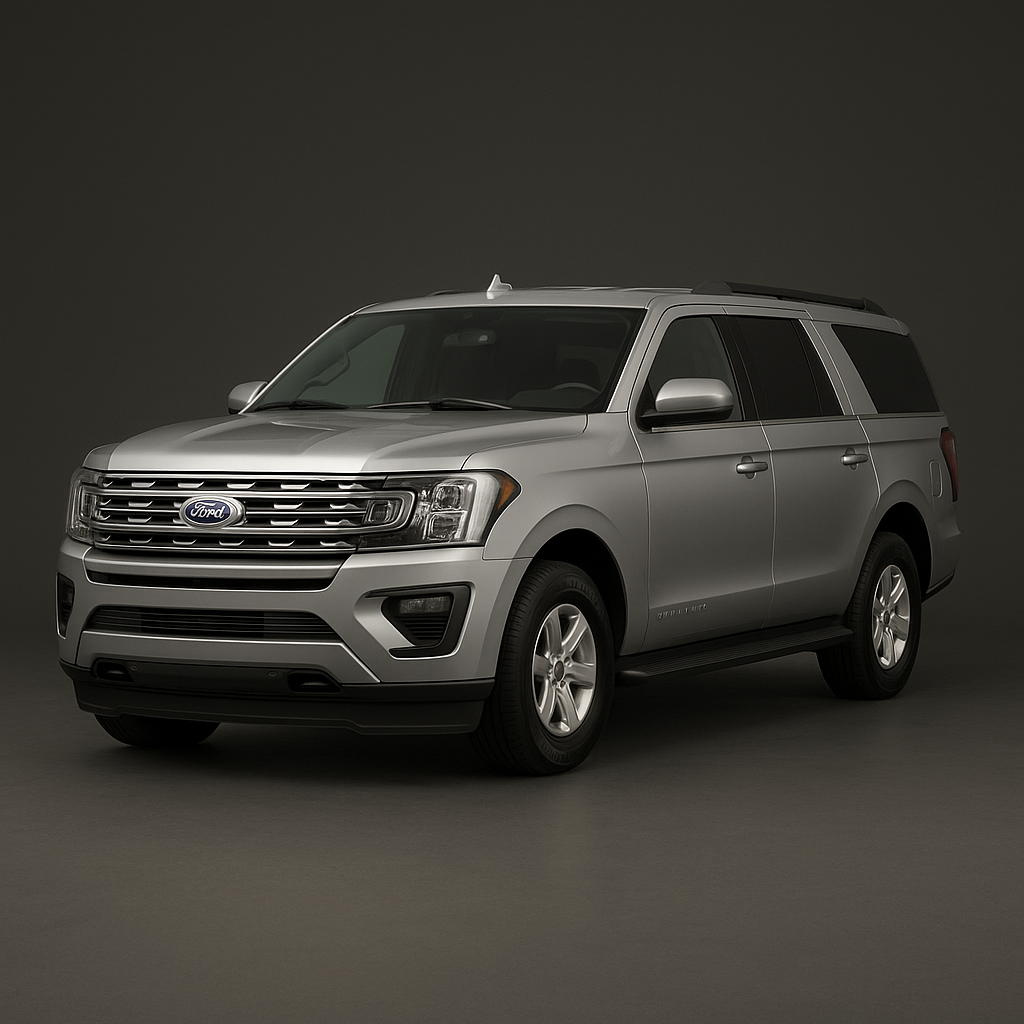

✨ AI-generated image for reference only

Vehicle Info

Ford Expedition 2021
Generation
4th Generation (U553) (2018–2021)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All 2021 Expedition/Expedition MAX/EL trims and drivetrains share the same bolt pattern, hub bore, stud size, and torque. Differences are primarily in 18" vs 20" vs 22" wheels and associated tire sizes, plus styling.

Wheel Specifications

Bolt pattern
6x135
Center bore
87.1 mm
Thread size
M14 x 1.5
Torque
204 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
18x8.520x8.522x9.5

Wheel & tire specs guide — Ford Expedition 2021

The 2021 Ford Expedition features a 6x135 bolt pattern, meaning it has 6 lug nuts arranged on a 135mm diameter circle, the center bore measures 87.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 204 Nm.

All 2021 Expedition/Expedition MAX/EL trims and drivetrains share the same bolt pattern, hub bore, stud size, and torque. Differences are primarily in 18" vs 20" vs 22" wheels and associated tire sizes, plus styling.

From the factory, the Ford Expedition 2021 is offered with OEM tires in the following sizes: 275/65R18, 275/55R20, 285/55R20, 285/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
