2002 Ford Explorer Bolt Pattern 5x114.3

Wheel and tire specifications for the Ford Explorer 2002. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

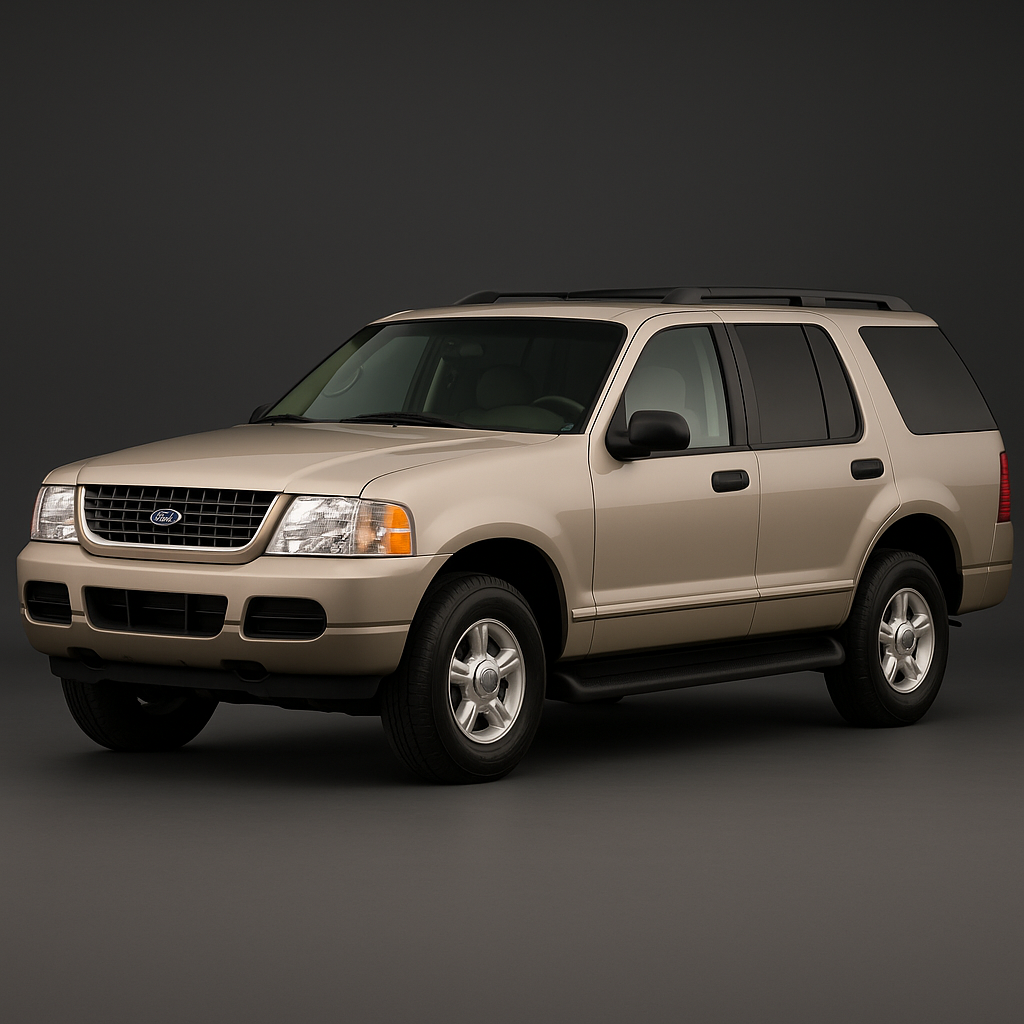

✨ AI-generated image for reference only

Vehicle Info

Ford Explorer 2002

Generation

3rd Generation (2002–2005)

Trim

Standard Trim

Modification

AI Verified Specs

Note

PCD, hub bore, number of lugs, and thread size are the same for 2WD and 4WD and across all trims. The Explorer Sport Trac has different wheel offsets and tire sizes.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

70.5 mm

Thread size

1/2-20 UNF

Torque

135 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

16x717x7.5

Wheel & tire specs guide — Ford Explorer 2002

The 2002 Ford Explorer features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 70.5mm, the wheels are secured with 1/2-20 UNF threaded lug nuts torqued to 135 Nm.

PCD, hub bore, number of lugs, and thread size are the same for 2WD and 4WD and across all trims. The Explorer Sport Trac has different wheel offsets and tire sizes.

From the factory, the Ford Explorer 2002 is offered with OEM tires in the following sizes: 235/70R16, 245/70R16, 245/65R17. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
