2006 Ford Explorer Bolt Pattern 5x114.3

Wheel and tire specifications for the Ford Explorer 2006. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

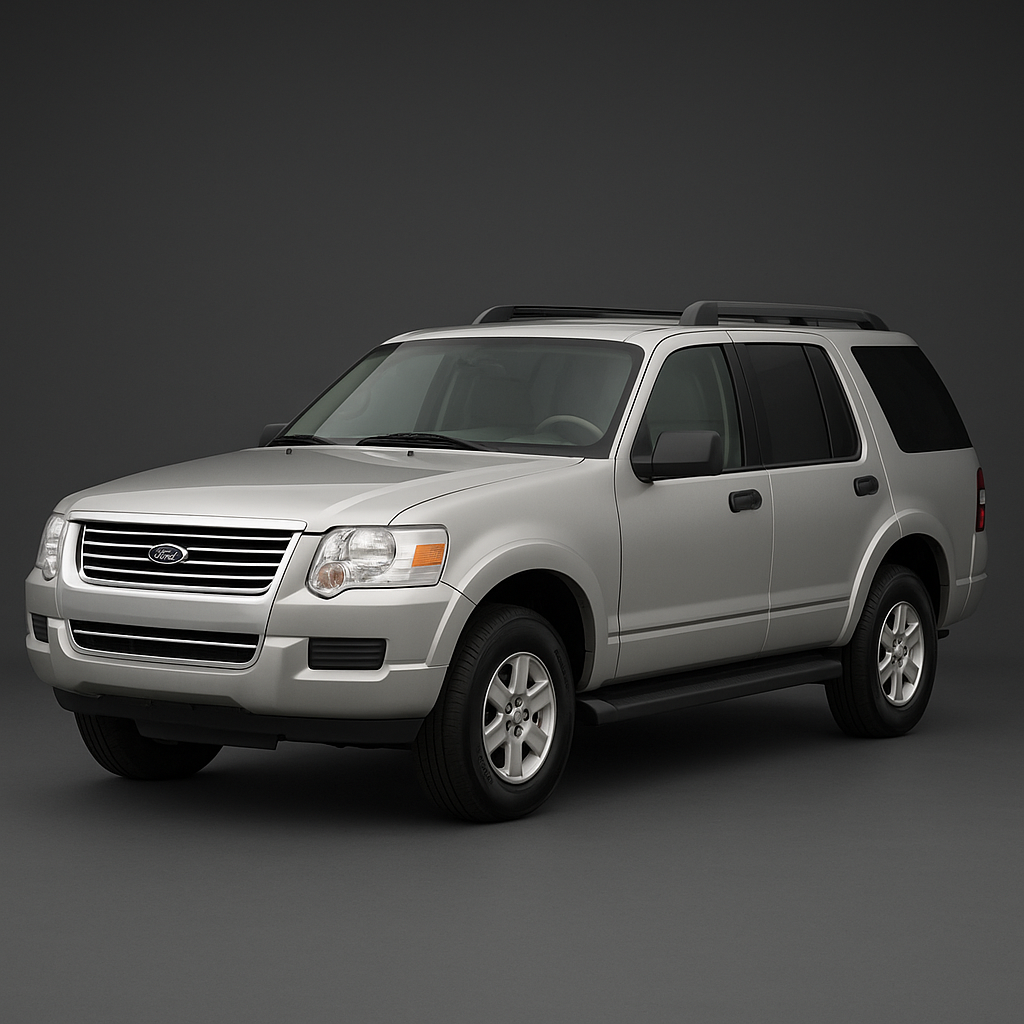

✨ AI-generated image for reference only

Vehicle Info

Ford Explorer 2006

Generation

4th Generation (U251) (2006–2010)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Wheel and tire specifications are common across 2WD and 4WD variants, and across different engine sizes (4.0L V6 and 4.6L V8). Trim levels primarily determined which wheel/tire combination was equipped from the common set. 255/50R20 is listed as an optional/upper-trim or aftermarket size in some databases, but is consistently listed as an OEM option.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

70.5 mm

Thread size

1/2-20 UNF

Torque

135 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

7Jx167.5Jx177.5Jx18

Wheel & tire specs guide — Ford Explorer 2006

The 2006 Ford Explorer features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 70.5mm, the wheels are secured with 1/2-20 UNF threaded lug nuts torqued to 135 Nm.

From the factory, the Ford Explorer 2006 is offered with OEM tires in the following sizes: 235/70R16, 245/65R17, 235/65R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
