2009 Ford Explorer Bolt Pattern 5x114.3

Wheel and tire specifications for the Ford Explorer 2009. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ford Explorer

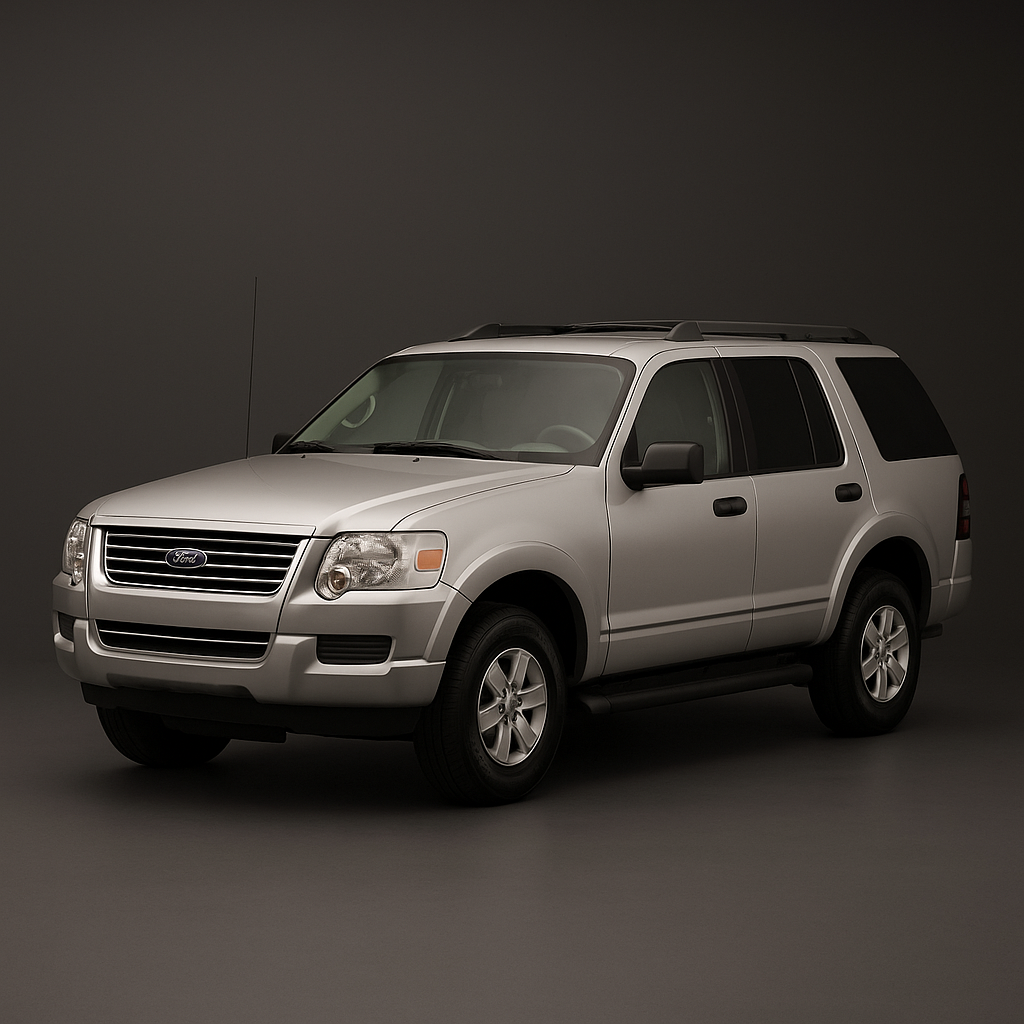

✨ AI-generated image for reference only

Vehicle Info

Ford Explorer 2009
Generation
4th Generation (2006–2010)
Trim
Standard Trim
Modification
AI Verified Specs
Note

OEM wheel/tire packages vary by trim and option package, but the bolt pattern and center bore remain consistent across the 2009 USDM range.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
70.5 mm
Thread size
1/2-20 UNF
Torque
135 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.516x717x7.518x7.5

Wheel & tire specs guide — Ford Explorer 2009

The 2009 Ford Explorer features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 70.5mm, the wheels are secured with 1/2-20 UNF threaded lug nuts torqued to 135 Nm.

OEM wheel/tire packages vary by trim and option package, but the bolt pattern and center bore remain consistent across the 2009 USDM range.

From the factory, the Ford Explorer 2009 is offered with OEM tires in the following sizes: 235/70R16, 245/65R17, 235/65R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
