2012 Ford Explorer Bolt Pattern 5x114.3

Wheel and tire specifications for the Ford Explorer 2012. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

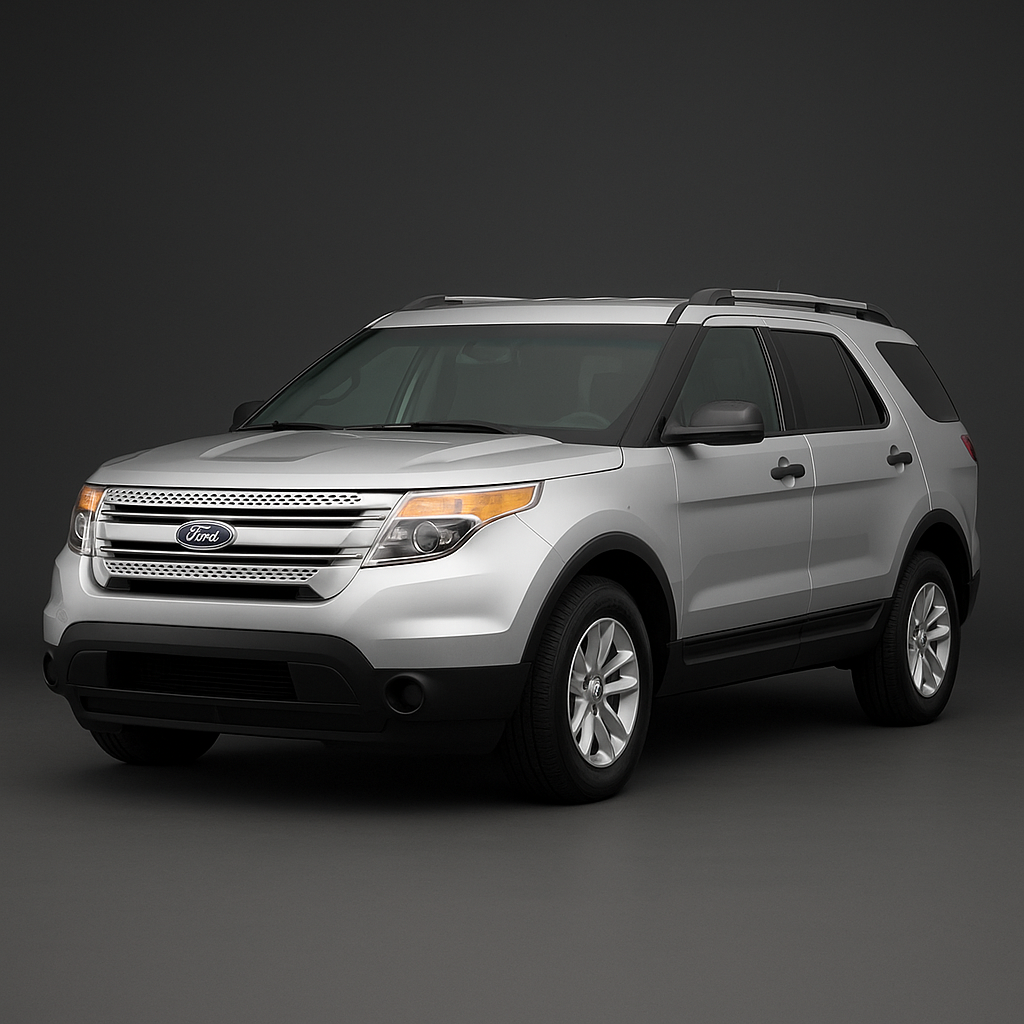

✨ AI-generated image for reference only

Vehicle Info

Ford Explorer 2012

Generation

5th Generation (U502) (2011–2019)

Trim

Base Trim

Modification

AI Verified Specs

Note

Wheel/tire fitment is primarily by trim package, not by drivetrain; FWD and 4WD share the same PCD, bore, thread size, and general offset range. Differences are primarily in wheel diameter/width and tire size by trim.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

63.4 mm

Thread size

M14 x 1.5

Torque

135 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x7.518x7.520x8.5

Wheel & tire specs guide — Ford Explorer 2012

The 2012 Ford Explorer features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 63.4mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 135 Nm.

From the factory, the Ford Explorer 2012 is offered with OEM tires in the following sizes: 245/65R17, 245/60R18, 255/50R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
