2017 Ford Explorer Bolt Pattern 5x114.3

Wheel and tire specifications for the Ford Explorer 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

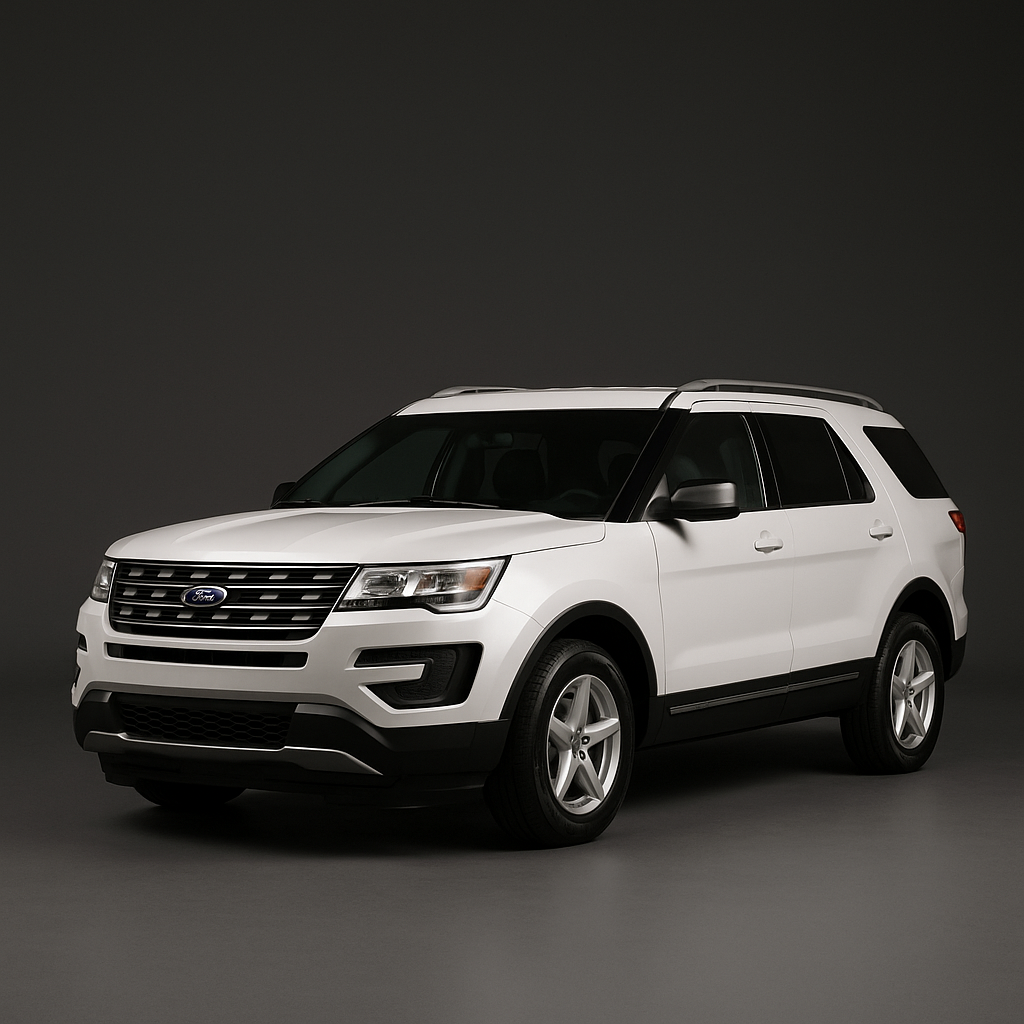

✨ AI-generated image for reference only

Vehicle Info

Ford Explorer 2017

Generation

5th Generation (2011–2019)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Bolt pattern, center bore, threads, lug torque, and number of lugs do not vary between FWD, 4WD/AWD, or trim levels (Base, XLT, Limited, Sport, Platinum). Differences are primarily in wheel diameter/width and OEM tire size. The thread size is 1/2-20 UNF according to Ford's own specifications, though some aftermarket sites may list M12x1.5 as an equivalent.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

63.4 mm

Thread size

M14 x 1.5

Torque

135 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

18x820x8.5

Wheel & tire specs guide — Ford Explorer 2017

The 2017 Ford Explorer features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 63.4mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 135 Nm.

From the factory, the Ford Explorer 2017 is offered with OEM tires in the following sizes: 245/60R18, 255/50R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
