2018 Ford F 150 Bolt Pattern 6x135

Wheel and tire specifications for the Ford F 150 2018. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ford F 150

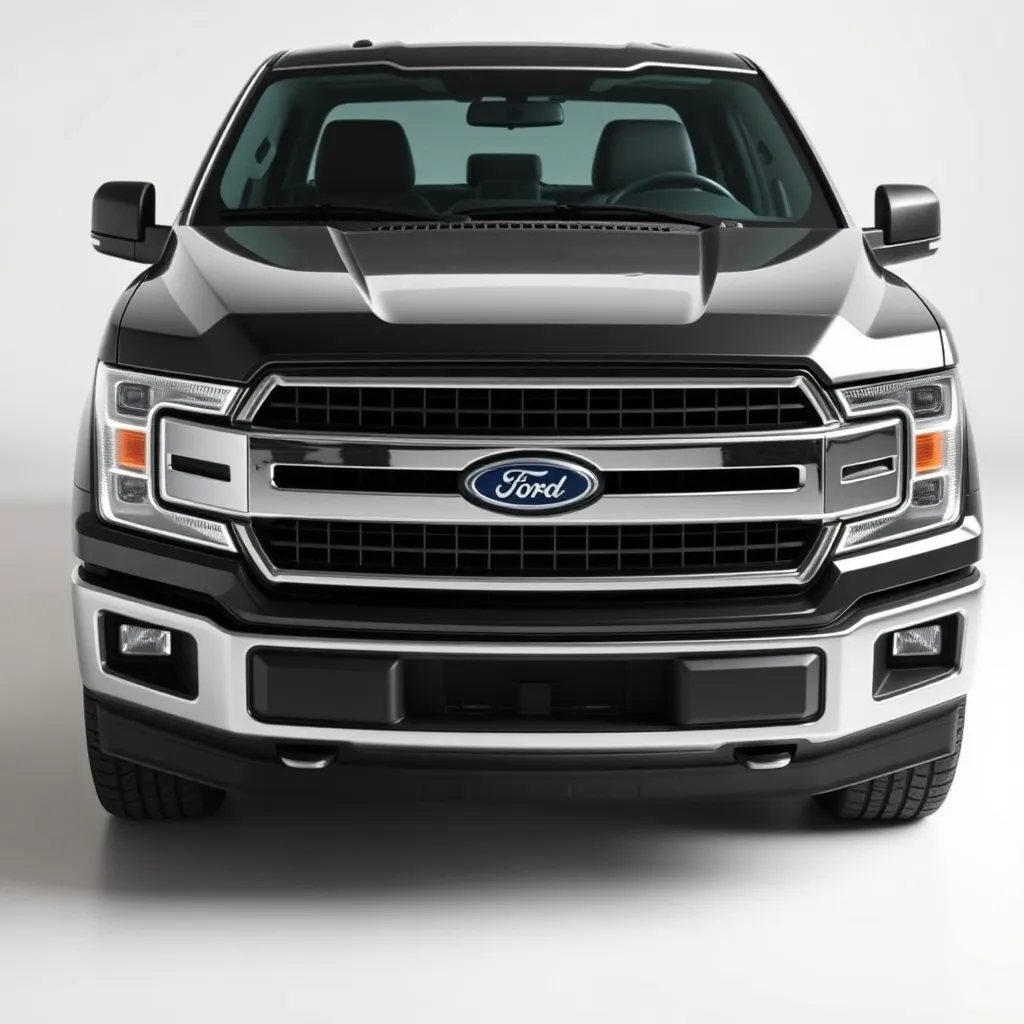

✨ AI-generated image for reference only

Vehicle Info

Ford F 150 2018
Generation
13th Generation (Facelift) (2018–2020)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Core wheel attachment specs (bolt pattern, center bore, stud size, torque, lug count) are shared across all 2018 F-150 trims and 2WD/4WD variants. Differences are in wheel diameter, width, tire size, and offset by trim and package. Raptor has specific wheel/tire setup.

Wheel Specifications

Bolt pattern
6x135
Center bore
87.1 mm
Thread size
M14 x 1.5
Torque
204 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.517x8.518x7.520x8.522x9

Wheel & tire specs guide — Ford F 150 2018

The 2018 Ford F 150 features a 6x135 bolt pattern, meaning it has 6 lug nuts arranged on a 135mm diameter circle, the center bore measures 87.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 204 Nm.

Core wheel attachment specs (bolt pattern, center bore, stud size, torque, lug count) are shared across all 2018 F-150 trims and 2WD/4WD variants. Differences are in wheel diameter, width, tire size, and offset by trim and package. Raptor has specific wheel/tire setup.

From the factory, the Ford F 150 2018 is offered with OEM tires in the following sizes: 245/70R17, 265/70R17, LT245/70R17, 265/60R18, 275/65R18, 275/55R20, 275/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
