2023 Ford F 150 Bolt Pattern 6x135

Wheel and tire specifications for the Ford F 150 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

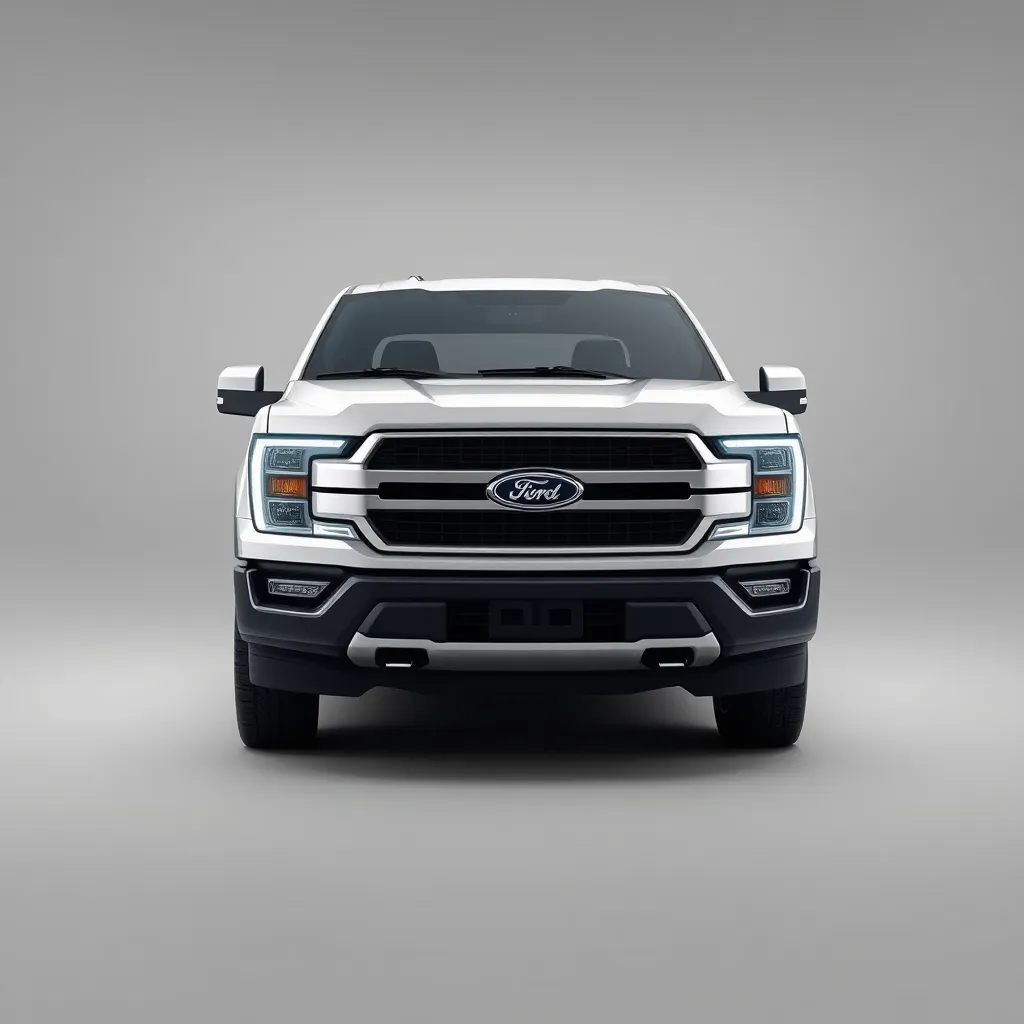

✨ AI-generated image for reference only

Vehicle Info

Ford F 150 2023

Generation

14th Generation (2021–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Wheel and tire sizes vary by trim, package, and 4x2 vs 4x4 configuration. The provided wheel and tire sizes are common OEM combinations. Typical OEM offset range is +34 to +44 mm for most non-Raptor models, with some higher trims and EV models up to +50 mm.

Wheel Specifications

Bolt pattern

6x135

Center bore

87.1 mm

Thread size

M14 x 1.5

Torque

204 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x7.518x7.5

Wheel & tire specs guide — Ford F 150 2023

The 2023 Ford F 150 features a 6x135 bolt pattern, meaning it has 6 lug nuts arranged on a 135mm diameter circle, the center bore measures 87.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 204 Nm.

From the factory, the Ford F 150 2023 is offered with OEM tires in the following sizes: 245/70R17, 265/70R17, 265/60R18, 275/65R18, 275/55R20, 275/50R22, 275/45R22, 315/70R17, 37x12.50R17. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
