2024 Ford Ranger Bolt Pattern 6x139.7

Wheel and tire specifications for the Ford Ranger 2024. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ford Ranger

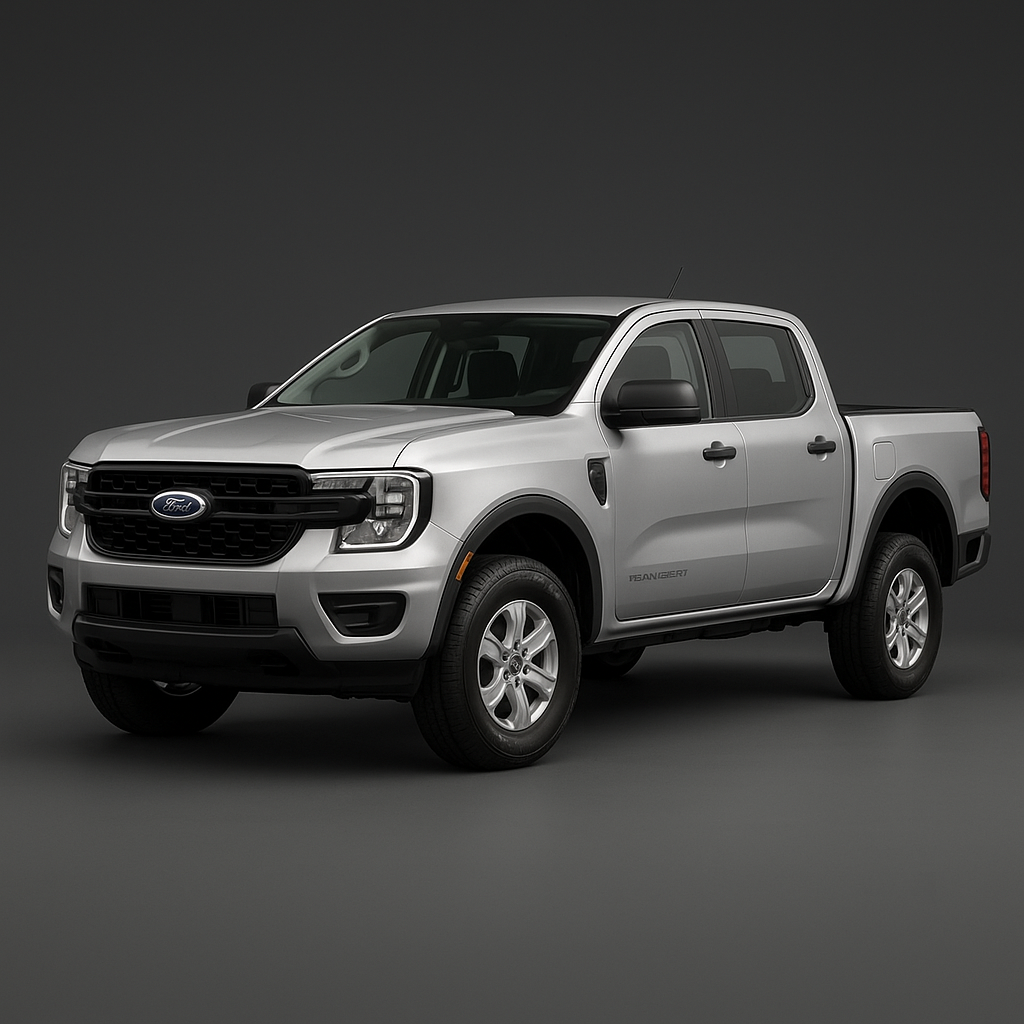

✨ AI-generated image for reference only

Vehicle Info

Ford Ranger 2024
Generation
5th Generation (2019–2026)
Trim
XL
Modification
AI Verified Specs
Note

No differences in bolt pattern, hub bore, thread size, or lug count between 2WD and 4WD variants or across trims. All USDM 2024 Ranger models use direct TPMS with in-wheel sensors.

Wheel Specifications

Bolt pattern
6x139.7
Center bore
93.1 mm
Thread size
M12 x 1.5
Torque
135 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.5

Wheel & tire specs guide — Ford Ranger 2024

The 2024 Ford Ranger features a 6x139.7 bolt pattern, meaning it has 6 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 93.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 135 Nm.

No differences in bolt pattern, hub bore, thread size, or lug count between 2WD and 4WD variants or across trims. All USDM 2024 Ranger models use direct TPMS with in-wheel sensors.

From the factory, the Ford Ranger 2024 is offered with OEM tires in the following sizes: 255/70R17. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
