2008 Honda Cr V Bolt Pattern 5x114.3

Wheel and tire specifications for the Honda Cr V 2008. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Honda Cr V

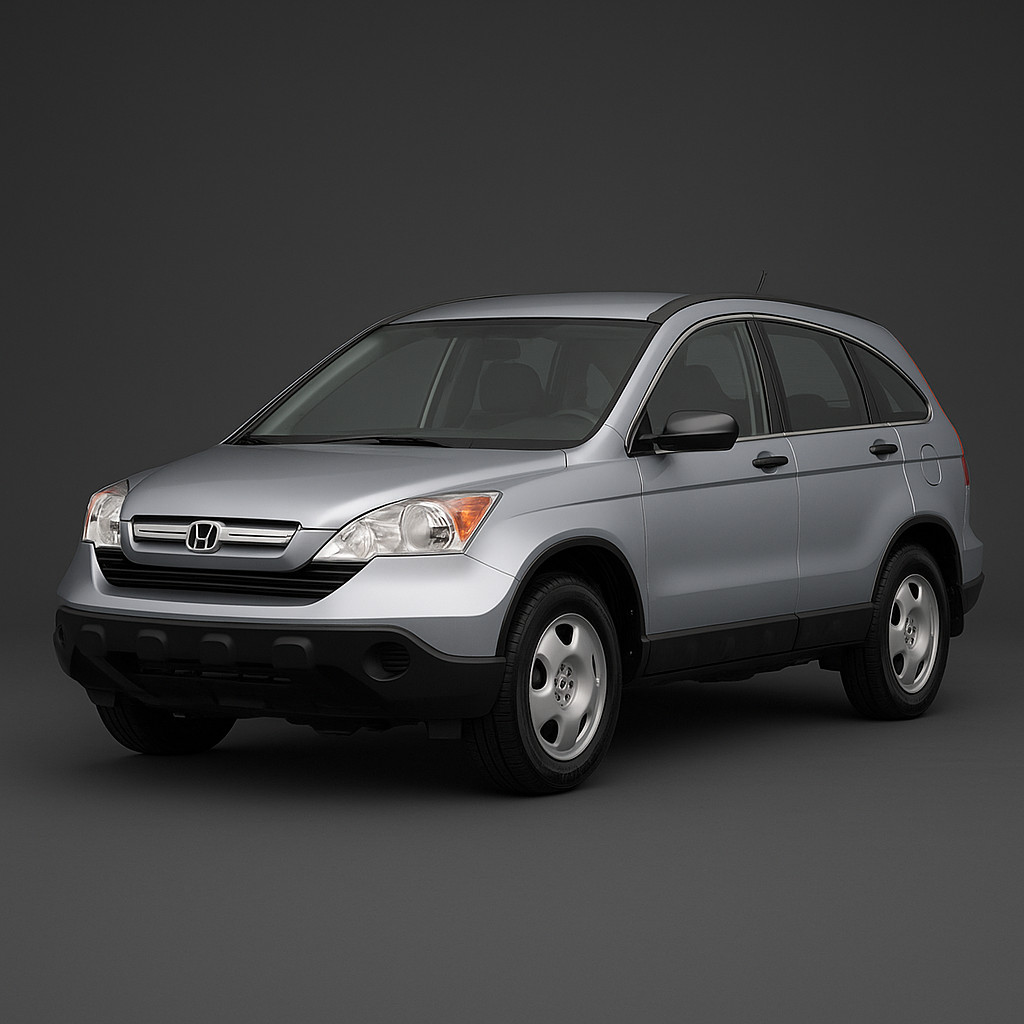

✨ AI-generated image for reference only

Vehicle Info

Honda Cr V 2008
Generation
3rd Generation (2007–2011)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All wheel hardware specifications (PCD, bore, threads, lug count, OEM size) are shared across LX, EX, EX-L and 2WD vs 4WD trims. TPMS is direct type, with sensors in each wheel. 16-inch wheels are standard for LX/EX, 17-inch wheels are optional for EX and standard for EX-L.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
64.1 mm
Thread size
M12 x 1.5
Torque
108 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.517x7

Wheel & tire specs guide — Honda Cr V 2008

The 2008 Honda Cr V features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 64.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 108 Nm.

All wheel hardware specifications (PCD, bore, threads, lug count, OEM size) are shared across LX, EX, EX-L and 2WD vs 4WD trims. TPMS is direct type, with sensors in each wheel. 16-inch wheels are standard for LX/EX, 17-inch wheels are optional for EX and standard for EX-L.

From the factory, the Honda Cr V 2008 is offered with OEM tires in the following sizes: 215/70R16, 225/65R17. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
