2019 Honda Passport Bolt Pattern 5x120

Wheel and tire specifications for the Honda Passport 2019. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Honda Passport

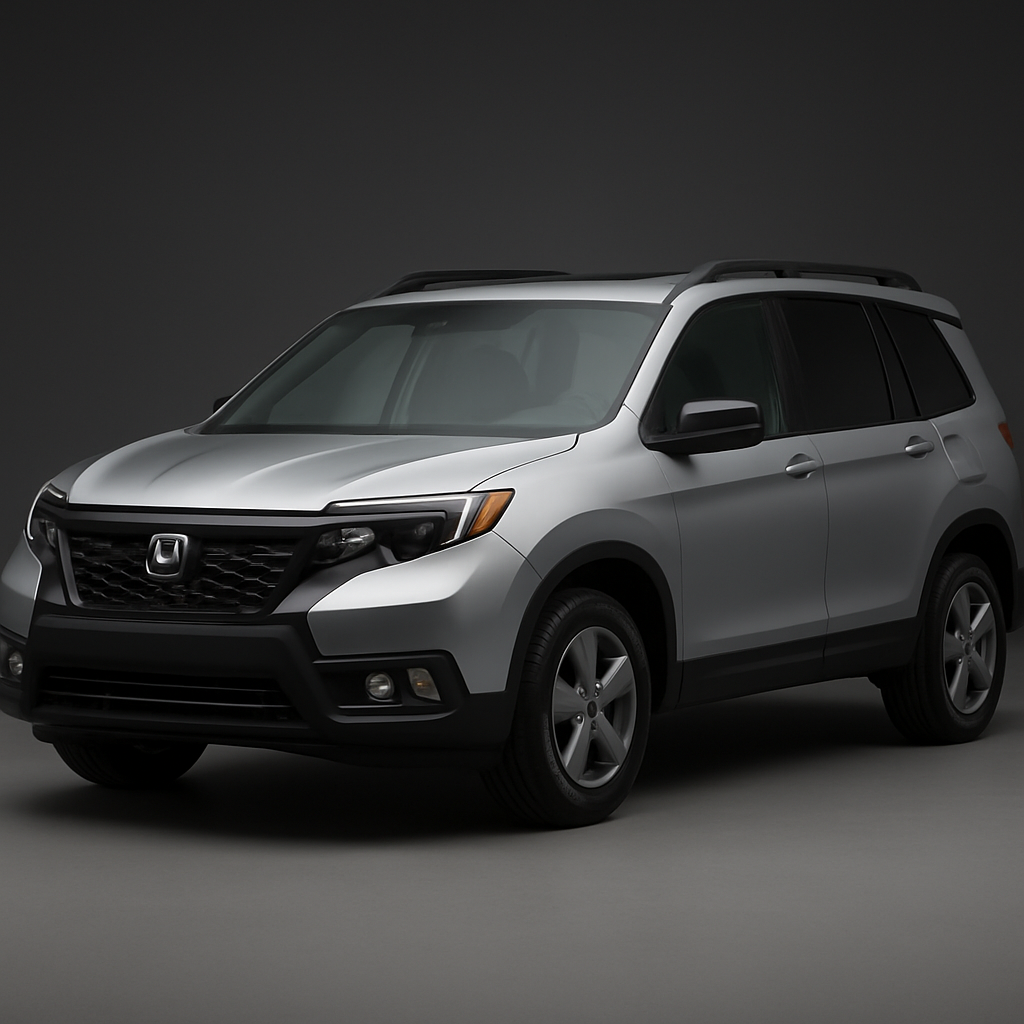

✨ AI-generated image for reference only

Vehicle Info

Honda Passport 2019
Generation
3rd Generation (2019–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All trims use 20-inch wheels. Sport and EX-L trims use 20x8J wheels with 245/50R20 tires. Touring and Elite trims use 20x8.5J wheels with 265/45R20 tires. All trims and both FWD/AWD variants share the same bolt pattern, center bore, stud count, thread size, and torque specifications.

Wheel Specifications

Bolt pattern
5x120
Center bore
64.1 mm
Thread size
M14 x 1.5
Torque
127 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
20x820x8.5

Wheel & tire specs guide — Honda Passport 2019

The 2019 Honda Passport features a 5x120 bolt pattern, meaning it has 5 lug nuts arranged on a 120mm diameter circle, the center bore measures 64.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 127 Nm.

All trims use 20-inch wheels. Sport and EX-L trims use 20x8J wheels with 245/50R20 tires. Touring and Elite trims use 20x8.5J wheels with 265/45R20 tires. All trims and both FWD/AWD variants share the same bolt pattern, center bore, stud count, thread size, and torque specifications.

From the factory, the Honda Passport 2019 is offered with OEM tires in the following sizes: 245/50R20, 265/45R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
