2017 Honda Pilot Bolt Pattern 5x120

Wheel and tire specifications for the Honda Pilot 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Honda Pilot

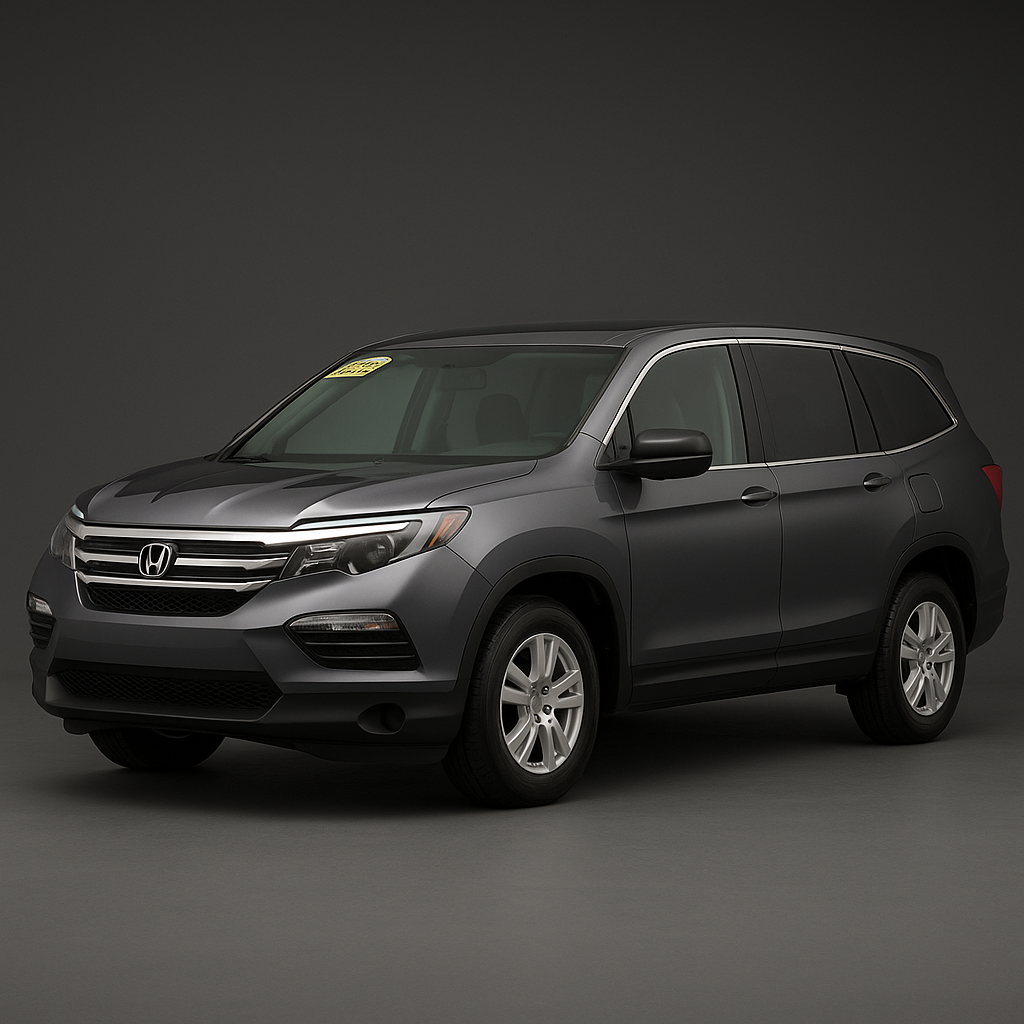

✨ AI-generated image for reference only

Vehicle Info

Honda Pilot 2017
Generation
3rd Generation (2016–2022)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel hardware (PCD, hub bore, threads, torque, lug count) is the same for 2WD and AWD variants. Only wheel diameter and tire size differ between base/mid trims (LX, EX, EX-L) and upper trims (Touring, Elite).

Wheel Specifications

Bolt pattern
5x120
Center bore
64.1 mm
Thread size
M14 x 1.5
Torque
127 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
18x820x8

Wheel & tire specs guide — Honda Pilot 2017

The 2017 Honda Pilot features a 5x120 bolt pattern, meaning it has 5 lug nuts arranged on a 120mm diameter circle, the center bore measures 64.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 127 Nm.

Wheel hardware (PCD, hub bore, threads, torque, lug count) is the same for 2WD and AWD variants. Only wheel diameter and tire size differ between base/mid trims (LX, EX, EX-L) and upper trims (Touring, Elite).

From the factory, the Honda Pilot 2017 is offered with OEM tires in the following sizes: 245/60R18, 245/50R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
