2024 Hyundai Palisade Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Palisade 2024. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Hyundai Palisade

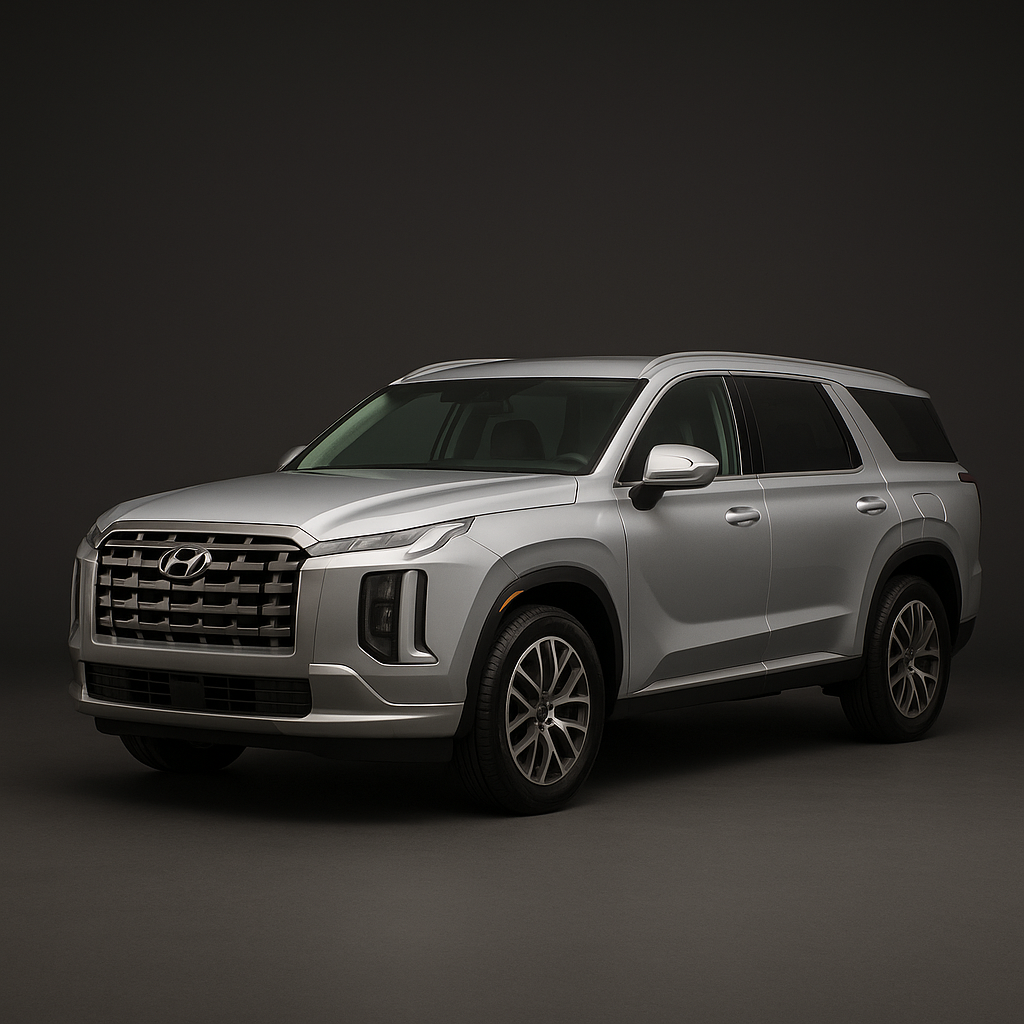

✨ AI-generated image for reference only

Vehicle Info

Hyundai Palisade 2024
Generation
LX2 (2019–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Bolt pattern, hub bore, thread size, and lug count are the same for all 2024 USDM Palisade trims (FWD and AWD). Variants are in wheel diameter, width, offset, and OEM tire size per trim.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
67.1 mm
Thread size
M12 x 1.5
Torque
107–127 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
18x7.520x7.5

Wheel & tire specs guide — Hyundai Palisade 2024

The 2024 Hyundai Palisade features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 107–127 Nm.

Bolt pattern, hub bore, thread size, and lug count are the same for all 2024 USDM Palisade trims (FWD and AWD). Variants are in wheel diameter, width, offset, and OEM tire size per trim.

From the factory, the Hyundai Palisade 2024 is offered with OEM tires in the following sizes: 245/60R18, 245/50R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
