2026 Hyundai Palisade Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Palisade 2026. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

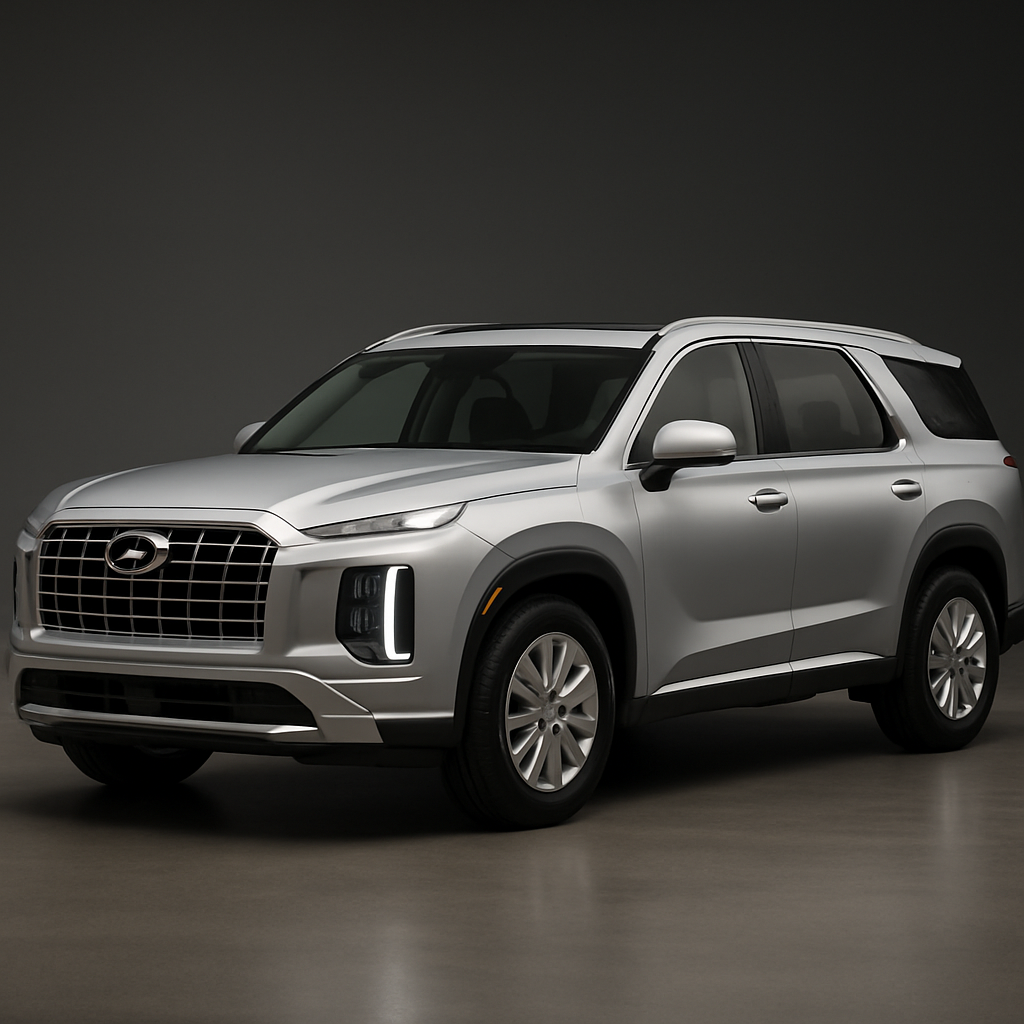

✨ AI-generated image for reference only

Vehicle Info

Hyundai Palisade 2026

Generation

LX3 (2025–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

PCD, center bore, and stud size are uniform across all trims and drivetrains (FWD/AWD). Different wheel diameters and tire sizes are available by trim level and option packages. Wheel tightening torque is an inference based on typical Hyundai SUV specs and 2025 Palisade data, not a direct 2026-specific figure.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

67.1 mm

Thread size

M12 x 1.5

Torque

107–127 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

18x818x7.520x821x8.5

Wheel & tire specs guide — Hyundai Palisade 2026

The 2026 Hyundai Palisade features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 107–127 Nm.

From the factory, the Hyundai Palisade 2026 is offered with OEM tires in the following sizes: 235/65R18, 255/60R18, 255/50R20, 265/45R21. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
