2013 Hyundai Santa Fe Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Santa Fe 2013. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

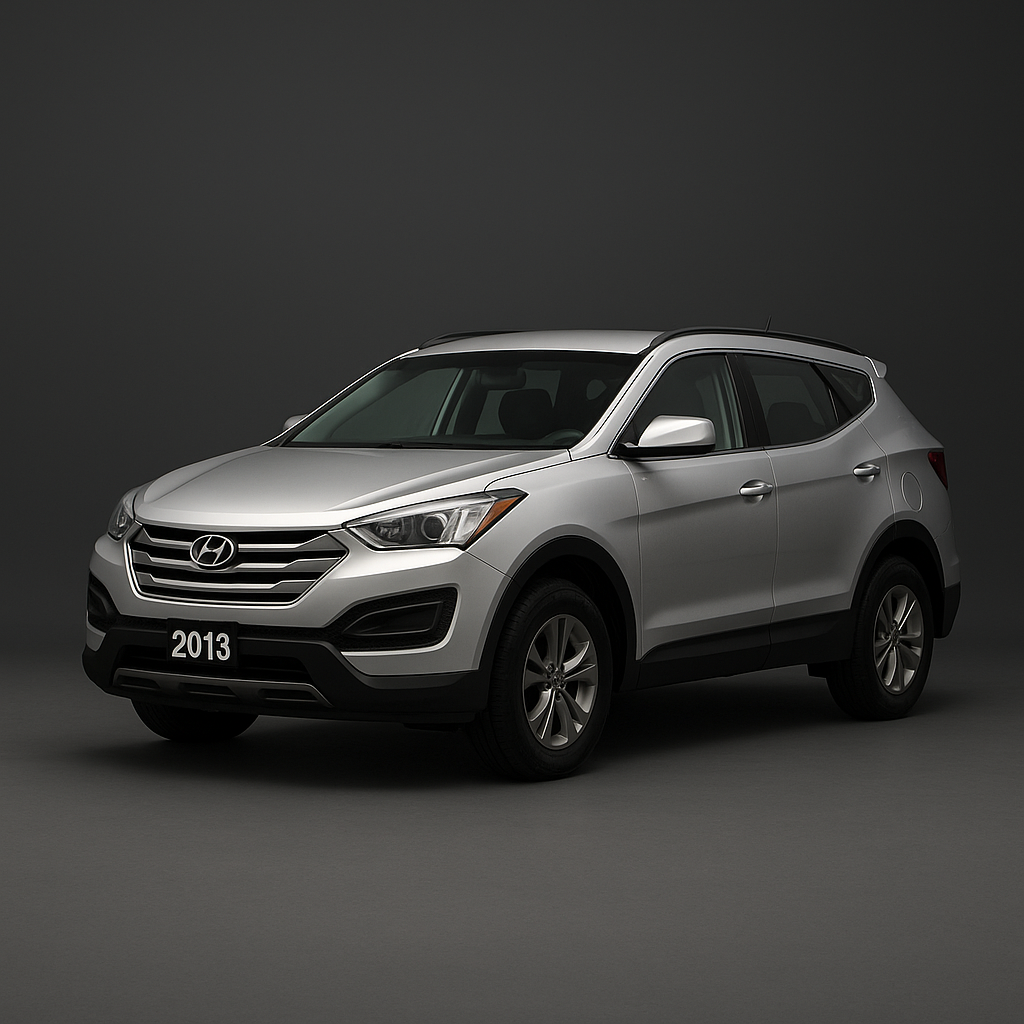

✨ AI-generated image for reference only

Vehicle Info

Hyundai Santa Fe 2013

Generation

3rd Generation (DM) (2013–2018)

Trim

Standard Trim

Modification

AI Verified Specs

Note

The Santa Fe and Santa Fe Sport variants may have different wheel widths and offsets for specific OEM tire sizes, but the bolt pattern remains 5x114.3 across all 2WD/FWD and AWD applications.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

67.1 mm

Thread size

M12 x 1.5

Torque

88–107 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x718x7.519x7.5

Wheel & tire specs guide — Hyundai Santa Fe 2013

The 2013 Hyundai Santa Fe features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 88–107 Nm.

The Santa Fe and Santa Fe Sport variants may have different wheel widths and offsets for specific OEM tire sizes, but the bolt pattern remains 5x114.3 across all 2WD/FWD and AWD applications.

From the factory, the Hyundai Santa Fe 2013 is offered with OEM tires in the following sizes: 235/65R17, 235/60R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
