2026 Hyundai Santa Fe Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Santa Fe 2026. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

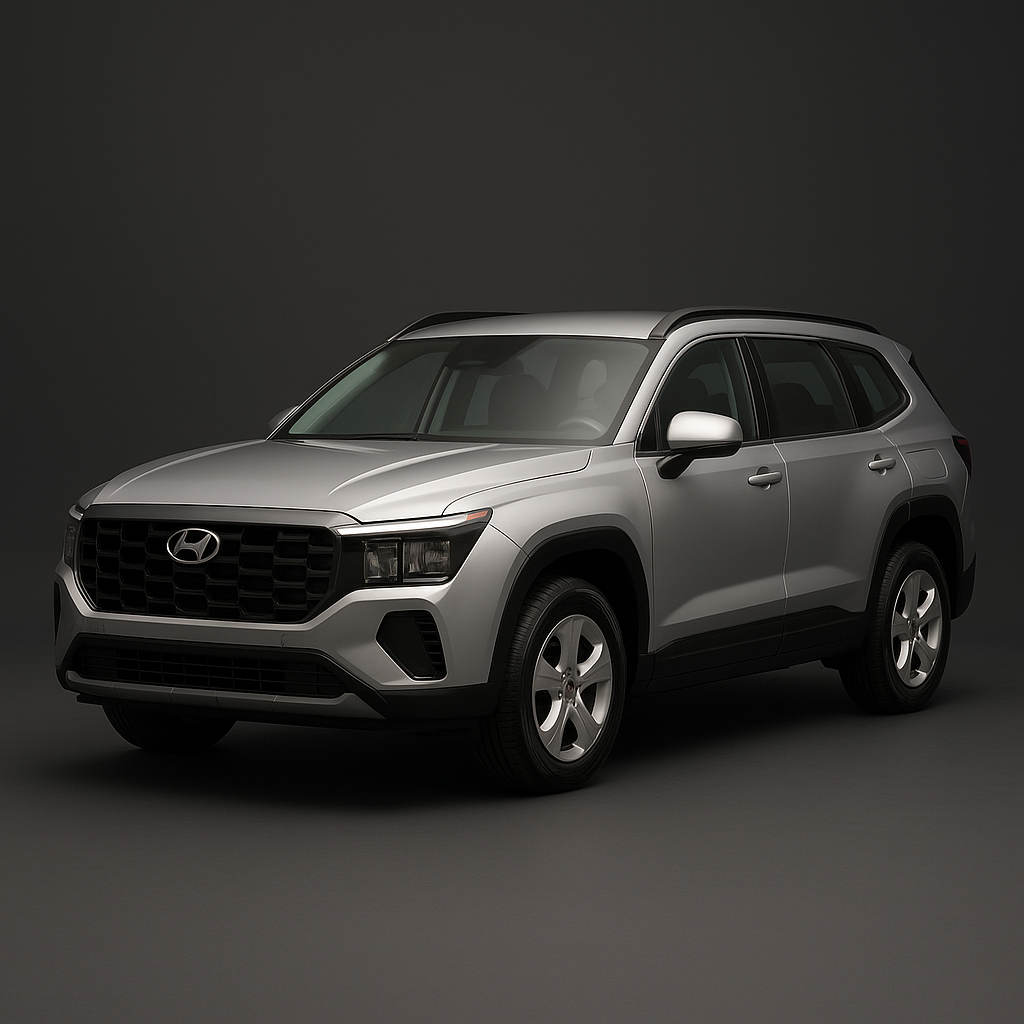

✨ AI-generated image for reference only

Vehicle Info

Hyundai Santa Fe 2026

Generation

5th Generation (MX5) (2023–present)

Trim

Hyundai Santa Fe

Modification

AI Verified Specs

Note

All 2026 Santa Fe US trims (gas and hybrid, FWD and AWD) share the same 5x114.3 / 67.1 mm / M12x1.5, 5-lug hardware. Variations are in tire size and wheel size/offset, mainly between SE/SEL, XRT, Limited, Calligraphy, and their hybrid counterparts. Offset values are based on detailed OEM specifications.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

67.1 mm

Thread size

M12 x 1.5

Torque

107–127 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

18x7.520x8.521x8.5

Wheel & tire specs guide — Hyundai Santa Fe 2026

The 2026 Hyundai Santa Fe features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 107–127 Nm.

From the factory, the Hyundai Santa Fe 2026 is offered with OEM tires in the following sizes: 235/60R18, 245/60R18, 255/45R20, 245/45R21. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
