2007 Hyundai Tucson Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Tucson 2007. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Hyundai Tucson

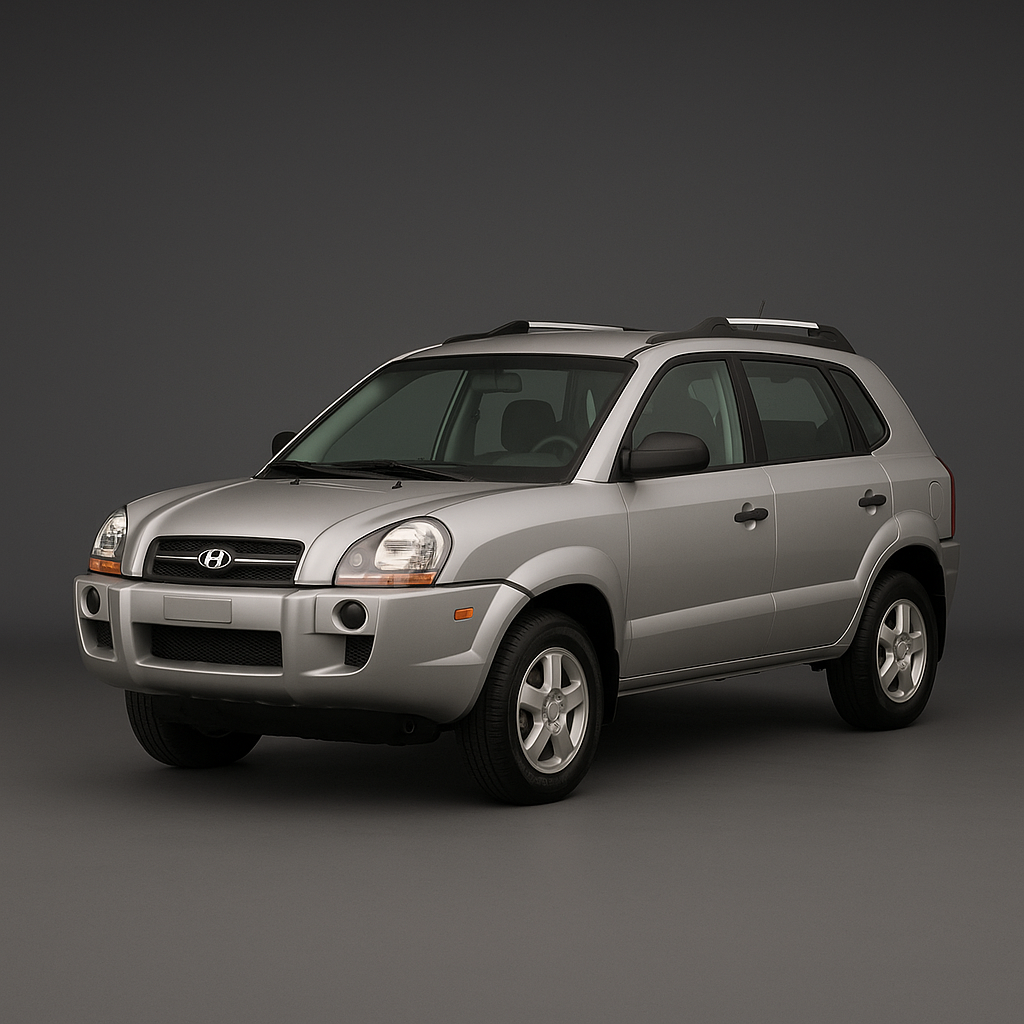

✨ AI-generated image for reference only

Vehicle Info

Hyundai Tucson 2007
Generation
1st Generation (JM) (2004–2009)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Bolt pattern, center bore, thread size, and lug count are the same across all 2007 Tucson trims and both FWD/2WD and AWD/4WD variants.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
67.1 mm
Thread size
M12 x 1.5
Torque
88–108 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.517x7

Wheel & tire specs guide — Hyundai Tucson 2007

The 2007 Hyundai Tucson features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 88–108 Nm.

Bolt pattern, center bore, thread size, and lug count are the same across all 2007 Tucson trims and both FWD/2WD and AWD/4WD variants.

From the factory, the Hyundai Tucson 2007 is offered with OEM tires in the following sizes: 215/65R16, 235/55R17. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
