2023 Hyundai Tucson Bolt Pattern 5x114.3

Wheel and tire specifications for the Hyundai Tucson 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Hyundai Tucson

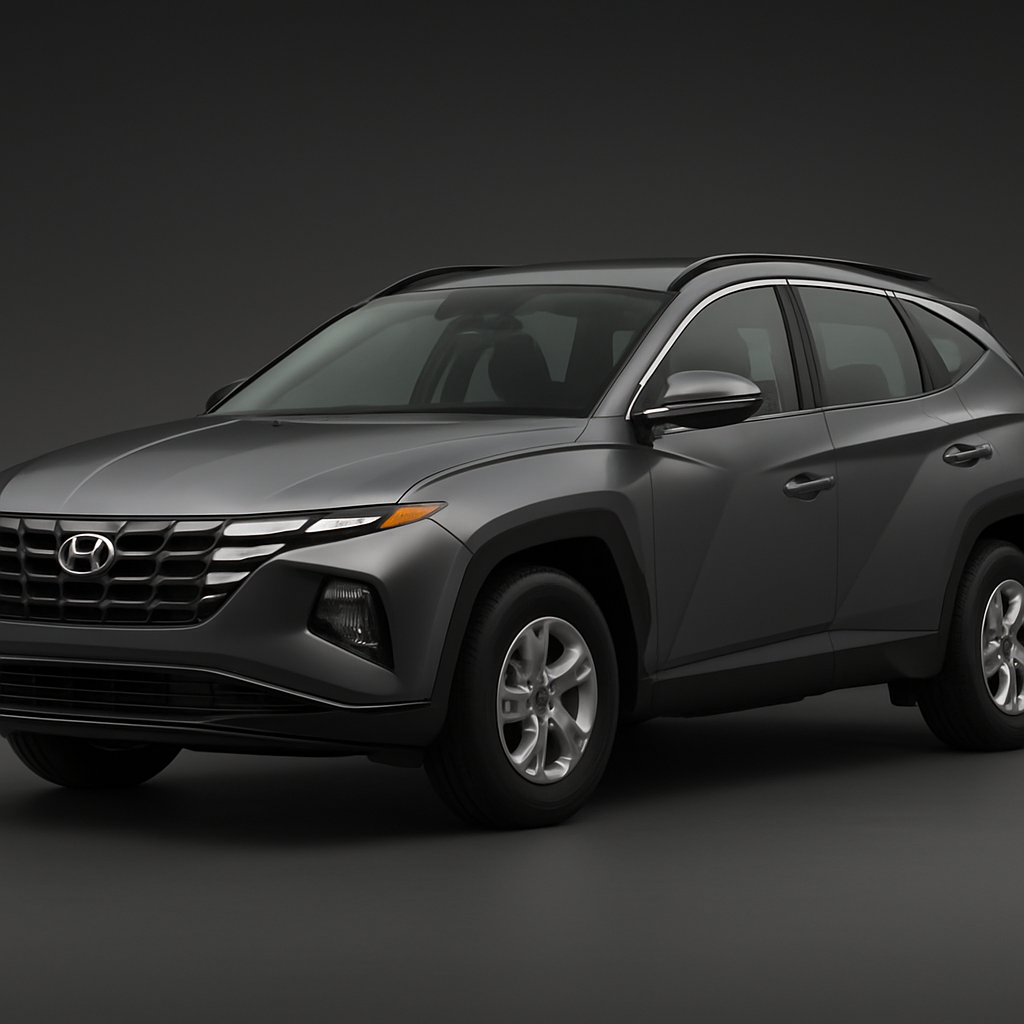

✨ AI-generated image for reference only

Vehicle Info

Hyundai Tucson 2023
Generation
4th Generation (2021–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Bolt pattern and center bore data were corrected based on stronger evidence from multiple sources. All trims share the same basic wheel fitment, only tire/wheel size varies.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
67.1 mm
Thread size
M12 x 1.5
Torque
107–127 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x718x718x7.519x7.5

Wheel & tire specs guide — Hyundai Tucson 2023

The 2023 Hyundai Tucson features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 107–127 Nm.

Bolt pattern and center bore data were corrected based on stronger evidence from multiple sources. All trims share the same basic wheel fitment, only tire/wheel size varies.

From the factory, the Hyundai Tucson 2023 is offered with OEM tires in the following sizes: 225/60R17, 225/65R17, 225/55R18, 235/60R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
