2025 Jeep Gladiator Bolt Pattern 5x127

Wheel and tire specifications for the Jeep Gladiator 2025. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Jeep Gladiator

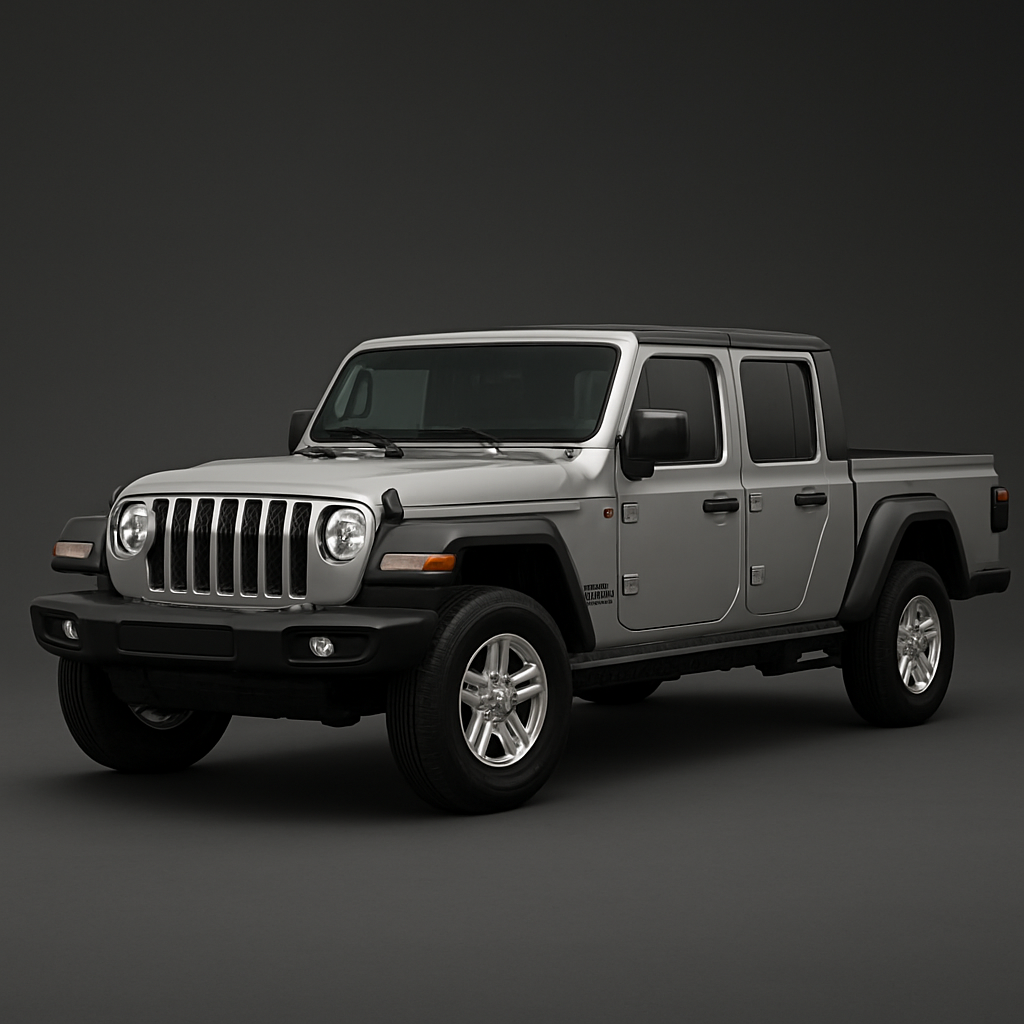

✨ AI-generated image for reference only

Vehicle Info

Jeep Gladiator 2025
Generation
JT (2020–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel hardware specifications (bolt pattern, center bore, lug thread, and lug nut torque) are consistent across all trims and do not vary by 2WD/4WD variants. OEM wheel offset ranges from +37 mm to +44.5 mm.

Wheel Specifications

Bolt pattern
5x127
Center bore
71.5 mm
Thread size
M14 x 1.5
Torque
176 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.518x7.520x8.0

Wheel & tire specs guide — Jeep Gladiator 2025

The 2025 Jeep Gladiator features a 5x127 bolt pattern, meaning it has 5 lug nuts arranged on a 127mm diameter circle, the center bore measures 71.5mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

Wheel hardware specifications (bolt pattern, center bore, lug thread, and lug nut torque) are consistent across all trims and do not vary by 2WD/4WD variants. OEM wheel offset ranges from +37 mm to +44.5 mm.

From the factory, the Jeep Gladiator 2025 is offered with OEM tires in the following sizes: 245/75R17, 255/75R17, 285/70R17, 255/70R18, 275/55R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
