2005 Jeep Grand Cherokee Bolt Pattern 5x127

Wheel and tire specifications for the Jeep Grand Cherokee 2005. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Jeep Grand Cherokee

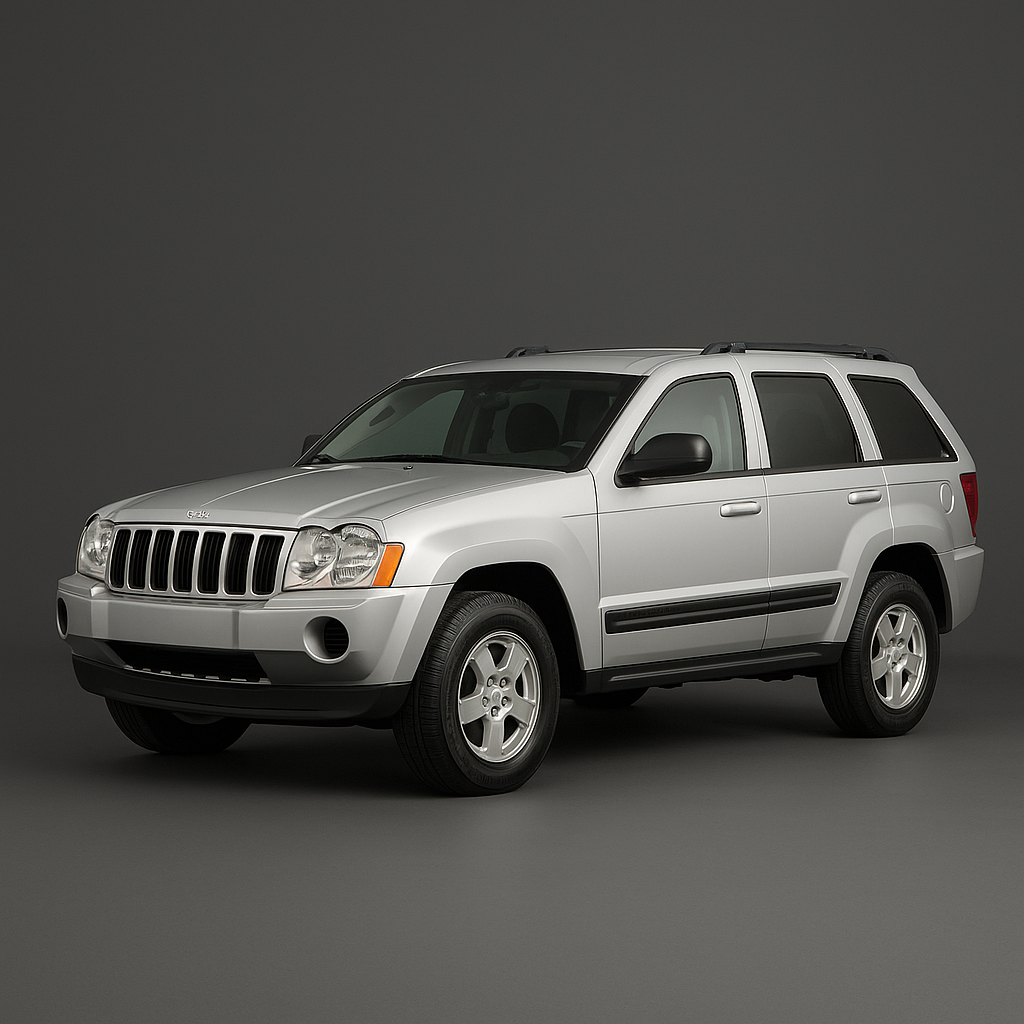

✨ AI-generated image for reference only

Vehicle Info

Jeep Grand Cherokee 2005
Generation
WK/WH (2005–2010)
Trim
Standard Trim
Modification
AI Verified Specs
Note

The 2005 Grand Cherokee (WK) was available in both 2WD and 4WD configurations across Laredo, Limited, and Overland trims. All variants share the same wheel bolt pattern, center bore, and thread size. The 16-inch wheel option was also available, likely carried over from the WJ/WG platform.

Wheel Specifications

Bolt pattern
5x127
Center bore
71.5 mm
Thread size
1/2-20 UNF
Torque
130 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x717x7.518x7.5

Wheel & tire specs guide — Jeep Grand Cherokee 2005

The 2005 Jeep Grand Cherokee features a 5x127 bolt pattern, meaning it has 5 lug nuts arranged on a 127mm diameter circle, the center bore measures 71.5mm, the wheels are secured with 1/2-20 UNF threaded lug nuts torqued to 130 Nm.

The 2005 Grand Cherokee (WK) was available in both 2WD and 4WD configurations across Laredo, Limited, and Overland trims. All variants share the same wheel bolt pattern, center bore, and thread size. The 16-inch wheel option was also available, likely carried over from the WJ/WG platform.

From the factory, the Jeep Grand Cherokee 2005 is offered with OEM tires in the following sizes: 225/75R16, 235/65R17, 245/65R17, 245/60R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
