2023 Jeep Grand Cherokee Bolt Pattern 5x127

Wheel and tire specifications for the Jeep Grand Cherokee 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

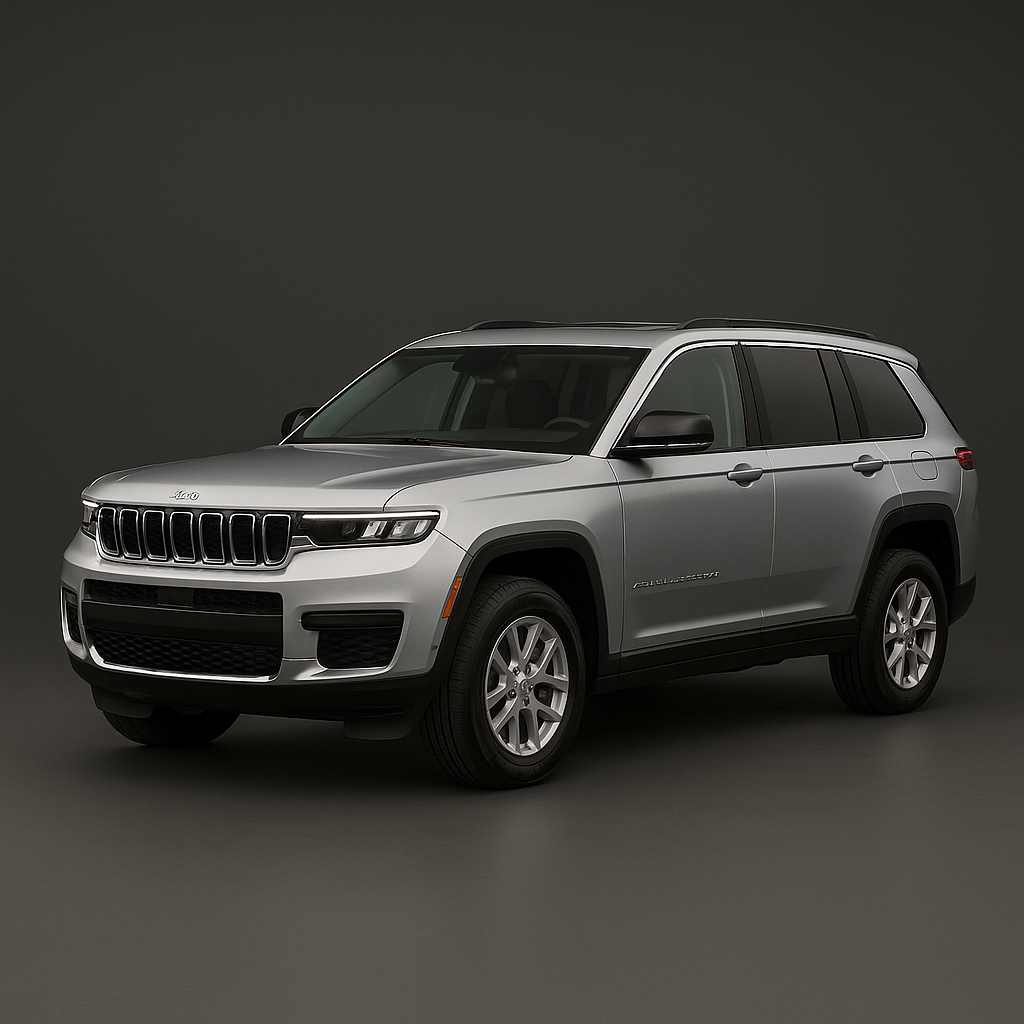

✨ AI-generated image for reference only

Vehicle Info

Jeep Grand Cherokee 2023

Generation

5th Generation (WL) (2022–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Core hardware (bolt pattern, hub bore, stud size, number of lugs) is common to all trims and both 2WD and 4WD variants. Wheel/tire variations are primarily by trim level and optional packages. Some specific low-content or export packages may use 17x8 wheels, which are less common in mainstream US retail trims.

Wheel Specifications

Bolt pattern

5x127

Center bore

71.5 mm

Thread size

M14 x 1.5

Torque

176 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x8J18x8J20x8.5J

Wheel & tire specs guide — Jeep Grand Cherokee 2023

The 2023 Jeep Grand Cherokee features a 5x127 bolt pattern, meaning it has 5 lug nuts arranged on a 127mm diameter circle, the center bore measures 71.5mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

From the factory, the Jeep Grand Cherokee 2023 is offered with OEM tires in the following sizes: 245/70R17, 265/60R18, 265/50R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
