2009 Jeep Wrangler Bolt Pattern 5x127

Wheel and tire specifications for the Jeep Wrangler 2009. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Jeep Wrangler

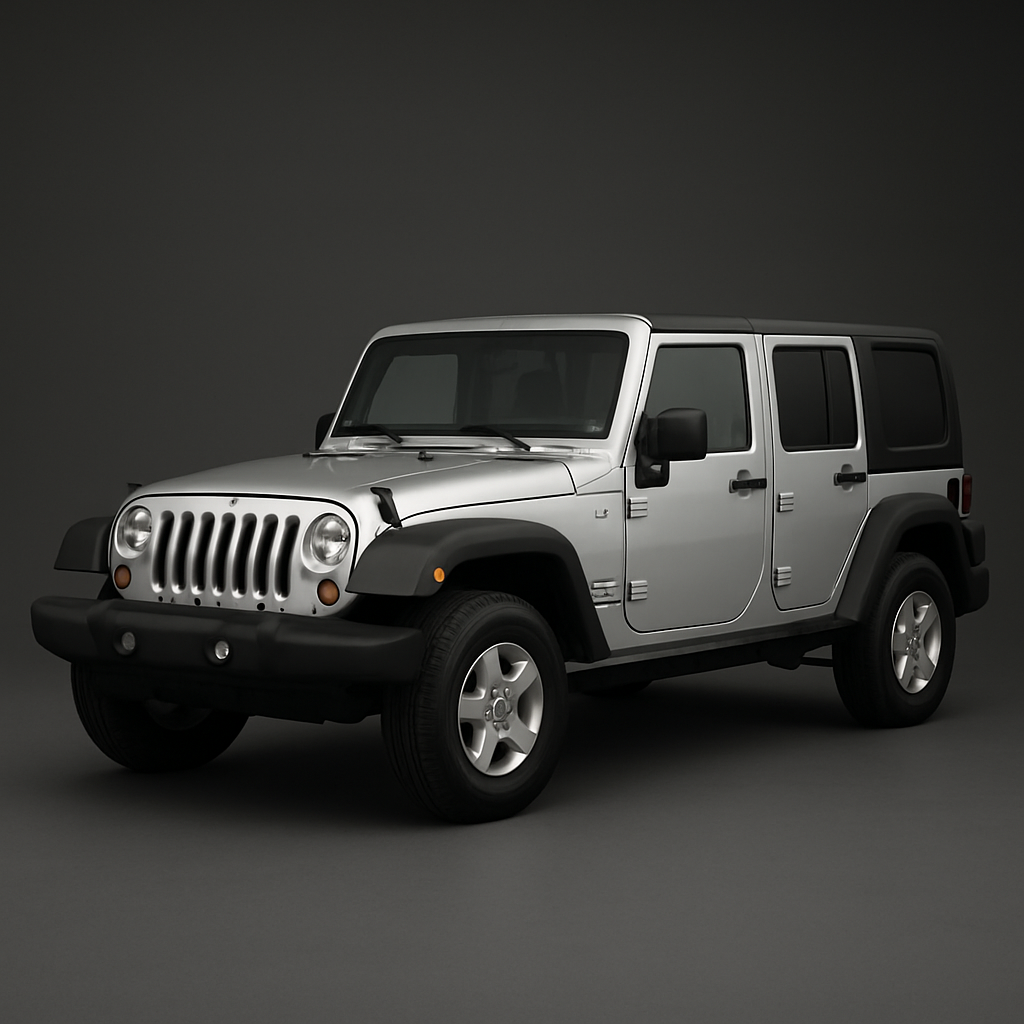

✨ AI-generated image for reference only

Vehicle Info

Jeep Wrangler 2009
Generation
JK (2007–2018)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All U.S. market 2009 Wrangler JK models are 4WD and share the same bolt pattern, center bore, lug count, and stud size. Differences are primarily in wheel diameter, width, and tire size by trim/package. The wheel tightening torque is approximately 100 ft-lb (136 Nm), with a broader acceptable range of 85-125 ft-lb (115-170 Nm).

Wheel Specifications

Bolt pattern
5x127
Center bore
71.5 mm
Thread size
1/2-20 UNF
Torque
129 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x717x7.518x7.5

Wheel & tire specs guide — Jeep Wrangler 2009

The 2009 Jeep Wrangler features a 5x127 bolt pattern, meaning it has 5 lug nuts arranged on a 127mm diameter circle, the center bore measures 71.5mm, the wheels are secured with 1/2-20 UNF threaded lug nuts torqued to 129 Nm.

All U.S. market 2009 Wrangler JK models are 4WD and share the same bolt pattern, center bore, lug count, and stud size. Differences are primarily in wheel diameter, width, and tire size by trim/package. The wheel tightening torque is approximately 100 ft-lb (136 Nm), with a broader acceptable range of 85-125 ft-lb (115-170 Nm).

From the factory, the Jeep Wrangler 2009 is offered with OEM tires in the following sizes: 245/75R16, 255/75R17, 255/70R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
