2013 Kia Sportage Bolt Pattern 5x114.3

Wheel and tire specifications for the Kia Sportage 2013. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Kia Sportage

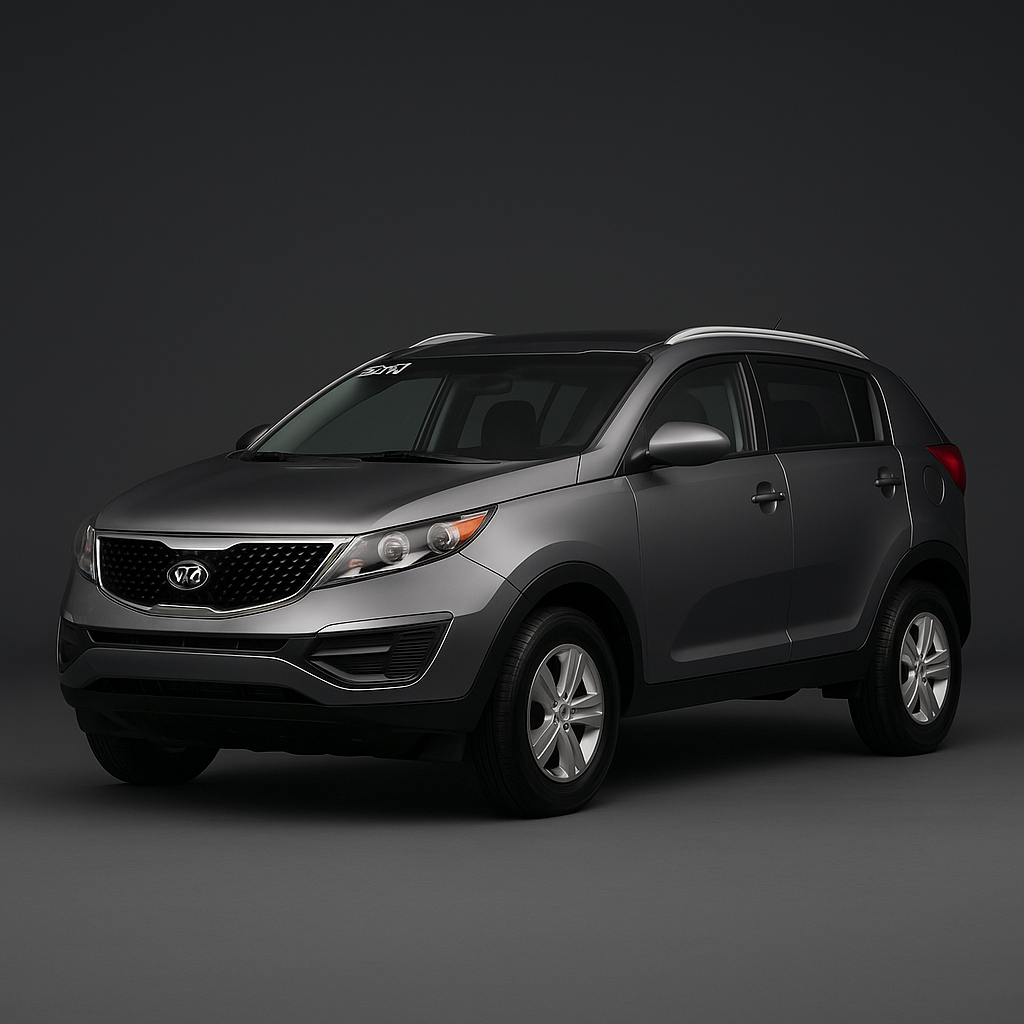

✨ AI-generated image for reference only

Vehicle Info

Kia Sportage 2013
Generation
3rd Generation (SL) (2010–2015)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel and tire specifications are largely common across trims (Base, LX, EX, SX) and between FWD and AWD variants. Differences are primarily in OEM tire size and wheel diameter/offset by trim. The wheel tightening torque is a safe, supported range.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
67.1 mm
Thread size
M12 x 1.5
Torque
88–107 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.517x718x7

Wheel & tire specs guide — Kia Sportage 2013

The 2013 Kia Sportage features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 88–107 Nm.

Wheel and tire specifications are largely common across trims (Base, LX, EX, SX) and between FWD and AWD variants. Differences are primarily in OEM tire size and wheel diameter/offset by trim. The wheel tightening torque is a safe, supported range.

From the factory, the Kia Sportage 2013 is offered with OEM tires in the following sizes: 215/70R16, 225/60R17, 235/55R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
