2017 Kia Sportage Bolt Pattern 5x114.3

Wheel and tire specifications for the Kia Sportage 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Kia Sportage

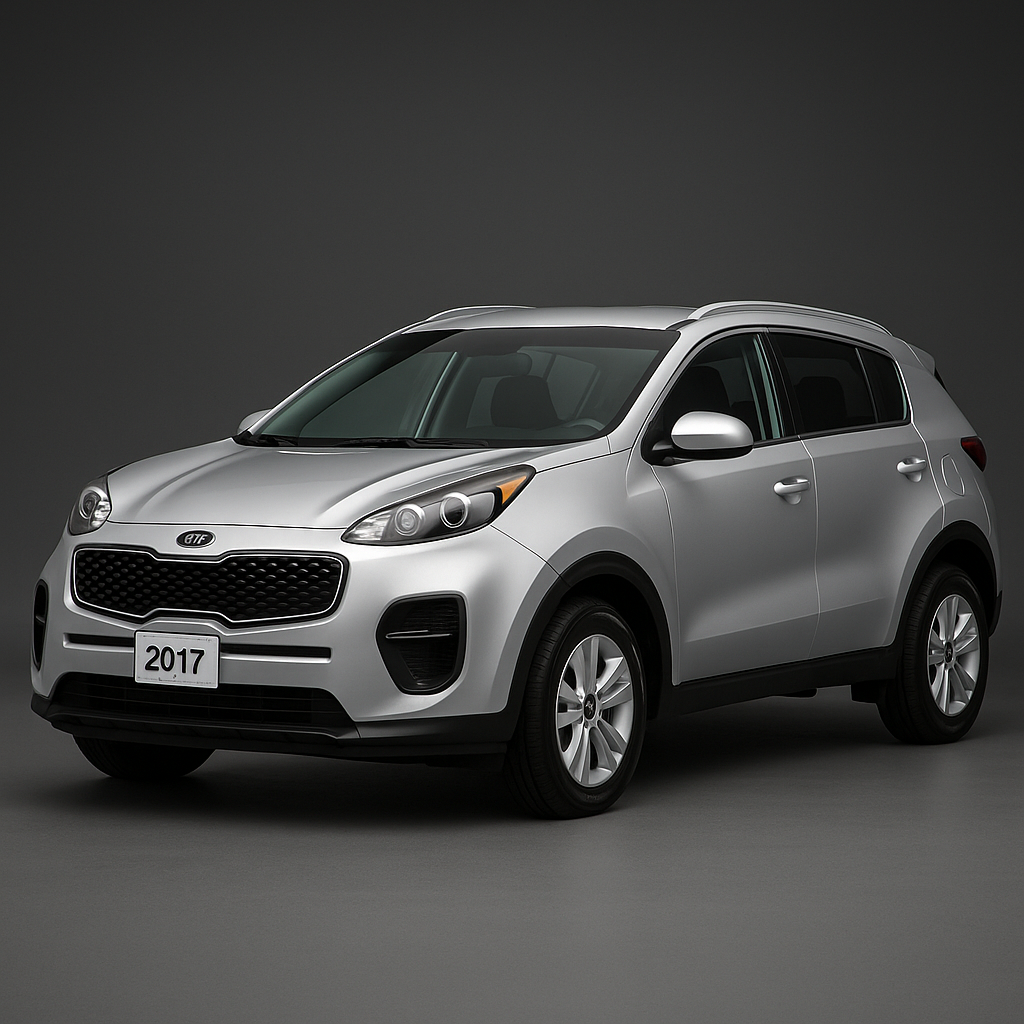

✨ AI-generated image for reference only

Vehicle Info

Kia Sportage 2017
Generation
4th Generation (QL) (2015–2021)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All 2017 Kia Sportage trims (FWD/AWD) share the same bolt pattern, center bore, lug count, thread, and torque specifications. Tire and wheel sizes vary by trim and engine.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
67.1 mm
Thread size
M12 x 1.5
Torque
107–127 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.517x718x719x7.5

Wheel & tire specs guide — Kia Sportage 2017

The 2017 Kia Sportage features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 107–127 Nm.

All 2017 Kia Sportage trims (FWD/AWD) share the same bolt pattern, center bore, lug count, thread, and torque specifications. Tire and wheel sizes vary by trim and engine.

From the factory, the Kia Sportage 2017 is offered with OEM tires in the following sizes: 215/70R16, 225/60R17, 225/55R18, 245/45R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
