2020 Lexus Nx Bolt Pattern 5x114.3

Wheel and tire specifications for the Lexus Nx 2020. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Lexus Nx

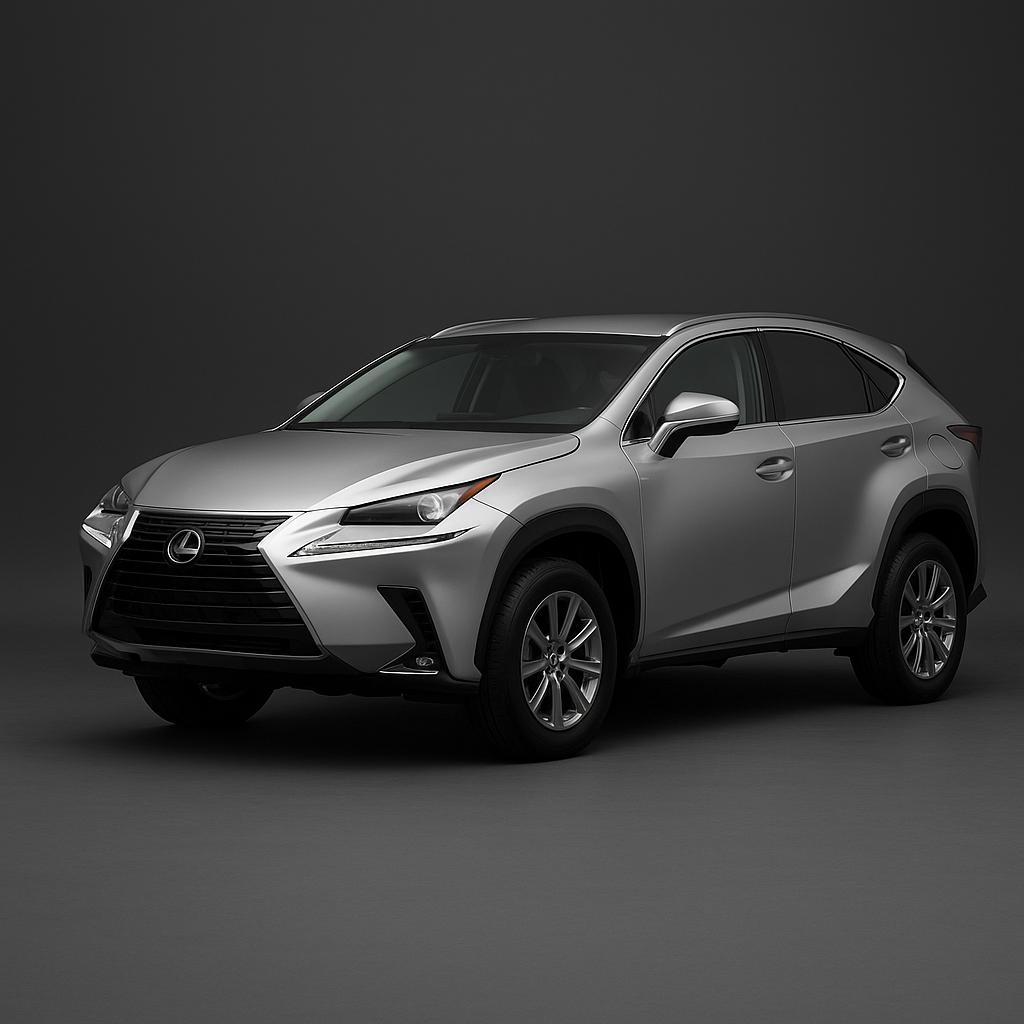

✨ AI-generated image for reference only

Vehicle Info

Lexus Nx 2020
Generation
1st Generation (AZ10) (2014–2021)
Trim
Standard Trim
Modification
AI Verified Specs
Note

The 2020 NX 300 / NX 300h line generally shares the same 5x114.3 / 60.1 mm hub specification across trims. Wheel size changes by trim/package, but there is no evidence that 2WD vs AWD changes the fundamental bolt pattern or hub bore. Wheel offset typically ranges from ET35-ET39.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
60.1 mm
Thread size
M12 x 1.5
Torque
103 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x718x7.519x7.520x8

Wheel & tire specs guide — Lexus Nx 2020

The 2020 Lexus Nx features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

The 2020 NX 300 / NX 300h line generally shares the same 5x114.3 / 60.1 mm hub specification across trims. Wheel size changes by trim/package, but there is no evidence that 2WD vs AWD changes the fundamental bolt pattern or hub bore. Wheel offset typically ranges from ET35-ET39.

From the factory, the Lexus Nx 2020 is offered with OEM tires in the following sizes: 225/65R17, 225/60R18, 235/55R18, 245/50R18, 225/55R19, 245/45R19, 245/40ZR20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
