2026 Mazda Cx 5 Bolt Pattern 5x114.3

Wheel and tire specifications for the Mazda Cx 5 2026. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

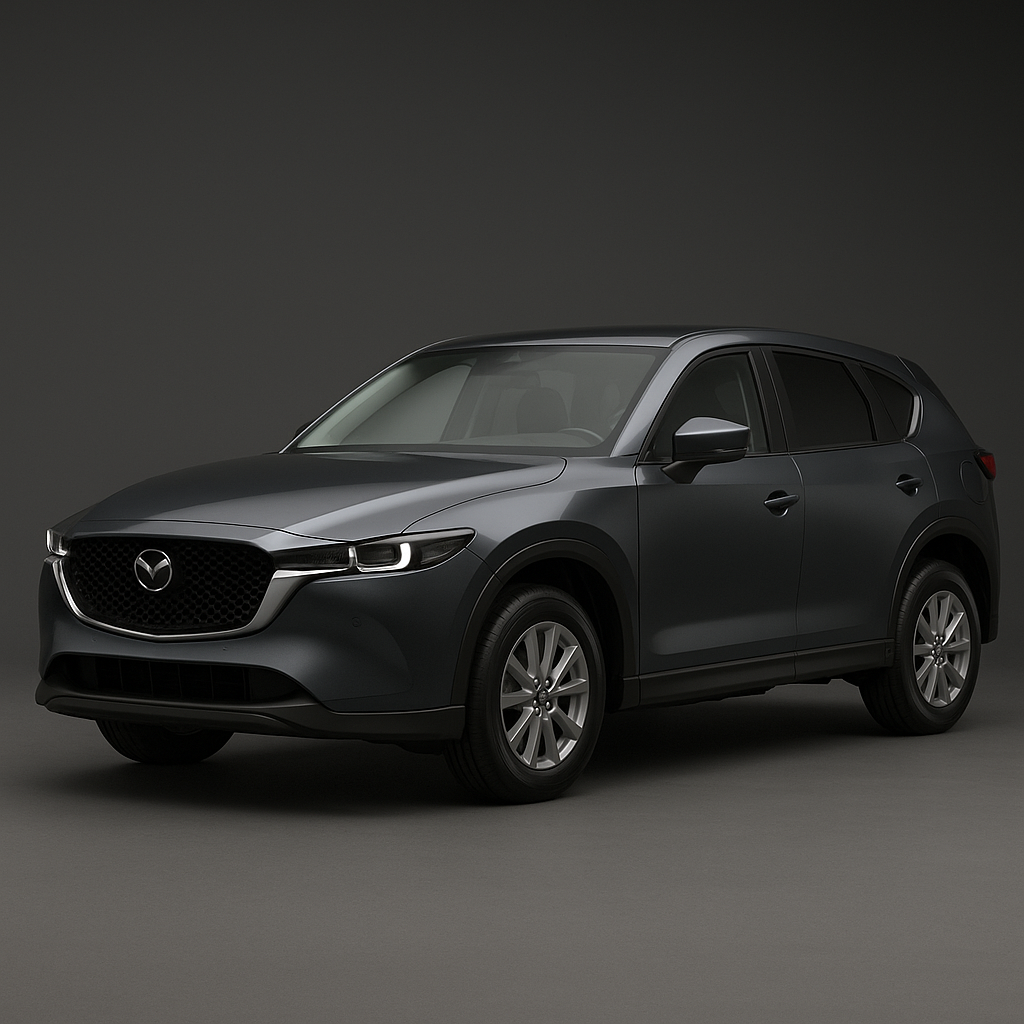

✨ AI-generated image for reference only

Vehicle Info

Mazda Cx 5 2026

Generation

KF Facelift (2021–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

No hardware differences (bolt pattern, hub bore, studs, torque) between 2WD and AWD 2026 CX-5. Only wheel diameter and tire sizes differ by trim level.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

67.1 mm

Thread size

M12 x 1.5

Torque

108–147 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x7J19x7J

Wheel & tire specs guide — Mazda Cx 5 2026

The 2026 Mazda Cx 5 features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 67.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 108–147 Nm.

No hardware differences (bolt pattern, hub bore, studs, torque) between 2WD and AWD 2026 CX-5. Only wheel diameter and tire sizes differ by trim level.

From the factory, the Mazda Cx 5 2026 is offered with OEM tires in the following sizes: 225/65R17, 225/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
