2018 Mercedes Cla Class Bolt Pattern 5x112

Wheel and tire specifications for the Mercedes Cla Class 2018. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Mercedes Cla Class

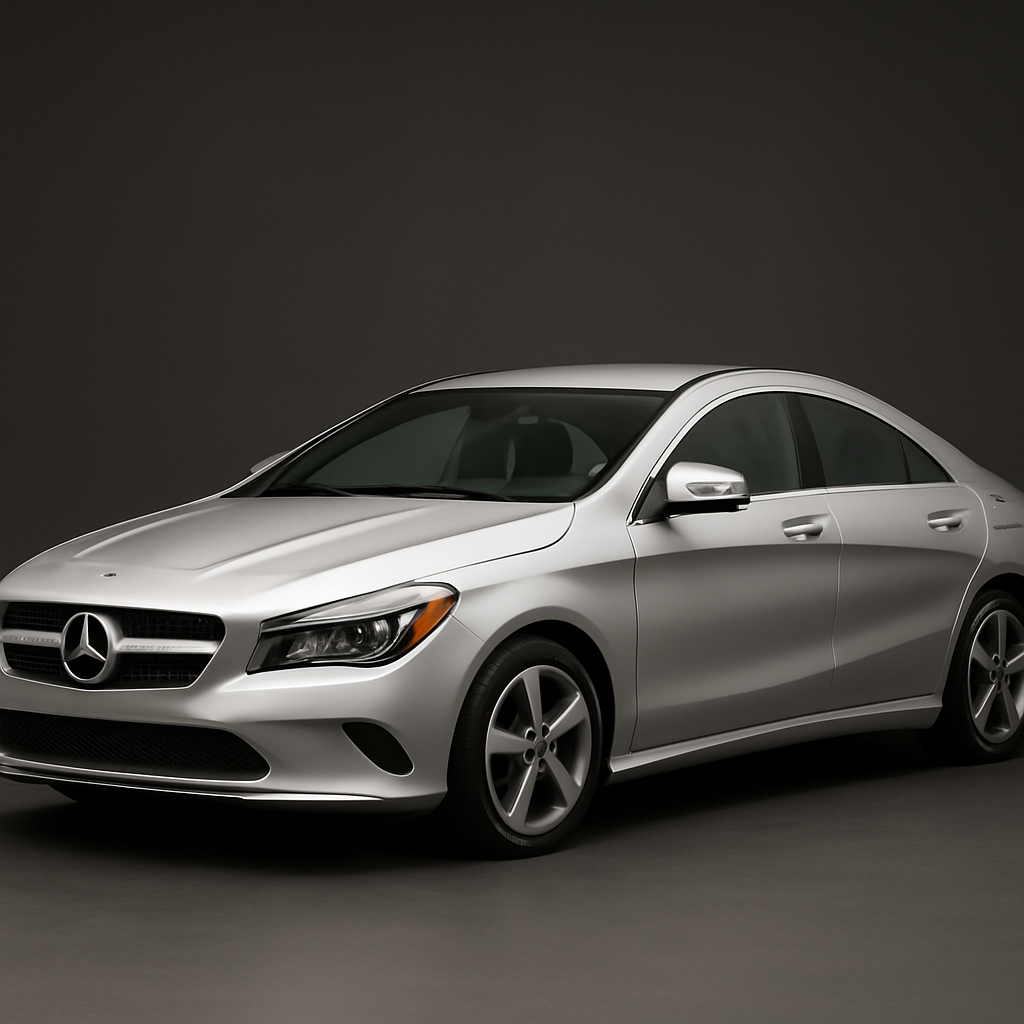

✨ AI-generated image for reference only

Vehicle Info

Mercedes Cla Class 2018
Generation
W117 (2013–2019)
Trim
CLA 250 / CLA 250 4MATIC
Modification
AI Verified Specs
Note

The 2018 CLA-Class includes CLA 250 (FWD), CLA 250 4MATIC (AWD), and AMG CLA 45 (AWD). All trims share the same fundamental wheel mounting specifications (bolt pattern, hub bore, lug count, thread size), but wheel diameters, widths, offsets, and tire sizes vary by trim and option package. Typical OEM wheel offsets are roughly ET38–ET56 depending on wheel size and trim.

Wheel Specifications

Bolt pattern
5x112
Center bore
66.6 mm
Thread size
M14 x 1.5
Torque
130 Nm
Lugs
5
Fastener type
lug bolts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.516x717x717x7.518x7.518x819x8

Wheel & tire specs guide — Mercedes Cla Class 2018

The 2018 Mercedes Cla Class features a 5x112 bolt pattern, meaning it has 5 lug nuts arranged on a 112mm diameter circle, the center bore measures 66.6mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 130 Nm.

The 2018 CLA-Class includes CLA 250 (FWD), CLA 250 4MATIC (AWD), and AMG CLA 45 (AWD). All trims share the same fundamental wheel mounting specifications (bolt pattern, hub bore, lug count, thread size), but wheel diameters, widths, offsets, and tire sizes vary by trim and option package. Typical OEM wheel offsets are roughly ET38–ET56 depending on wheel size and trim.

From the factory, the Mercedes Cla Class 2018 is offered with OEM tires in the following sizes: 205/55R16, 205/50R17, 225/45R17, 225/40R18, 225/40ZR18, 235/40ZR18, 245/35ZR18, 225/35ZR19, 235/35ZR19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
