2017 Mercedes Glc Class Bolt Pattern 5x112

Wheel and tire specifications for the Mercedes Glc Class 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Mercedes Glc Class

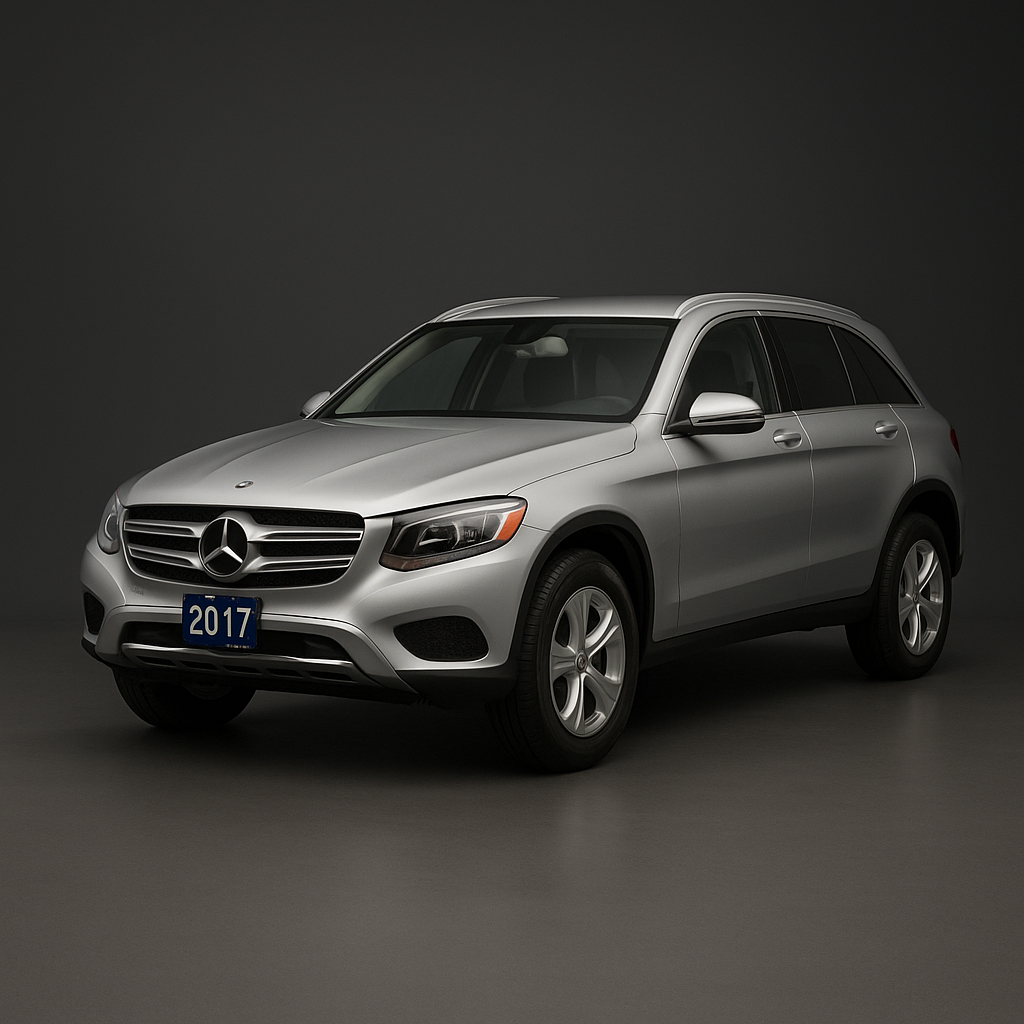

✨ AI-generated image for reference only

Vehicle Info

Mercedes Glc Class 2017
Generation
X253 (2015–2022)
Trim
GLC 300 (X253)
Modification
AI Verified Specs
Note

Hardware (PCD, hub bore, thread, lug count) is the same across 2WD and 4MATIC trims for the USDM 2017 GLC-Class. Wheel/tire sizes vary by trim and option packages.

Wheel Specifications

Bolt pattern
5x112
Center bore
66.6 mm
Thread size
M14 x 1.5
Torque
130 Nm
Lugs
5
Fastener type
lug bolts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.518x819x819x920x8.520x9.5

Wheel & tire specs guide — Mercedes Glc Class 2017

The 2017 Mercedes Glc Class features a 5x112 bolt pattern, meaning it has 5 lug nuts arranged on a 112mm diameter circle, the center bore measures 66.6mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 130 Nm.

Hardware (PCD, hub bore, thread, lug count) is the same across 2WD and 4MATIC trims for the USDM 2017 GLC-Class. Wheel/tire sizes vary by trim and option packages.

From the factory, the Mercedes Glc Class 2017 is offered with OEM tires in the following sizes: 235/65R17, 235/60R18, 235/55R19, 255/50R19, 255/45R20, 285/40R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
