2024 Mercedes Gle Class Bolt Pattern 5x112

Wheel and tire specifications for the Mercedes Gle Class 2024. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Mercedes Gle Class

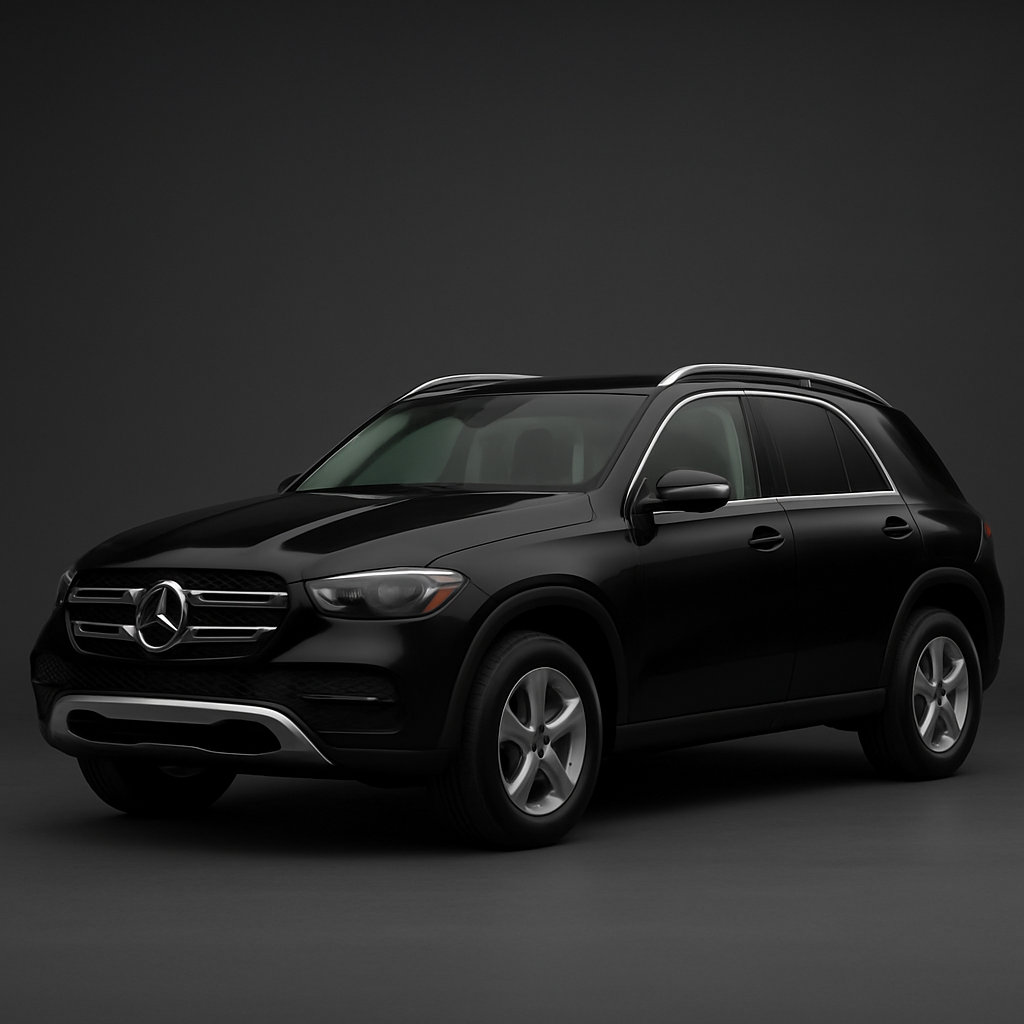

✨ AI-generated image for reference only

Vehicle Info

Mercedes Gle Class 2024
Generation
V167 Facelift (2023–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All USDM 2024 GLE-Class trims are 4MATIC (AWD); no RWD variants are offered. Wheel and tire sizes vary by trim and optional packages. Lug nut torque should be verified with the owner's manual or Mercedes-Benz dealer due to conflicting third-party information.

Wheel Specifications

Bolt pattern
5x112
Center bore
66.6 mm
Thread size
M14 x 1.5
Torque
150 Nm
Lugs
5
Fastener type
lug bolts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
18x?19x8.020x8.520x9.020x9.521x10.021x11.022x10.022x11.5

Wheel & tire specs guide — Mercedes Gle Class 2024

The 2024 Mercedes Gle Class features a 5x112 bolt pattern, meaning it has 5 lug nuts arranged on a 112mm diameter circle, the center bore measures 66.6mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 150 Nm.

All USDM 2024 GLE-Class trims are 4MATIC (AWD); no RWD variants are offered. Wheel and tire sizes vary by trim and optional packages. Lug nut torque should be verified with the owner's manual or Mercedes-Benz dealer due to conflicting third-party information.

From the factory, the Mercedes Gle Class 2024 is offered with OEM tires in the following sizes: 255/55R18, 255/50R19, 275/50R20, 275/45R21, 315/40R21, 285/40R22, 325/35R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
