2017 Nissan Frontier Bolt Pattern 6x114.3

Wheel and tire specifications for the Nissan Frontier 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Nissan Frontier

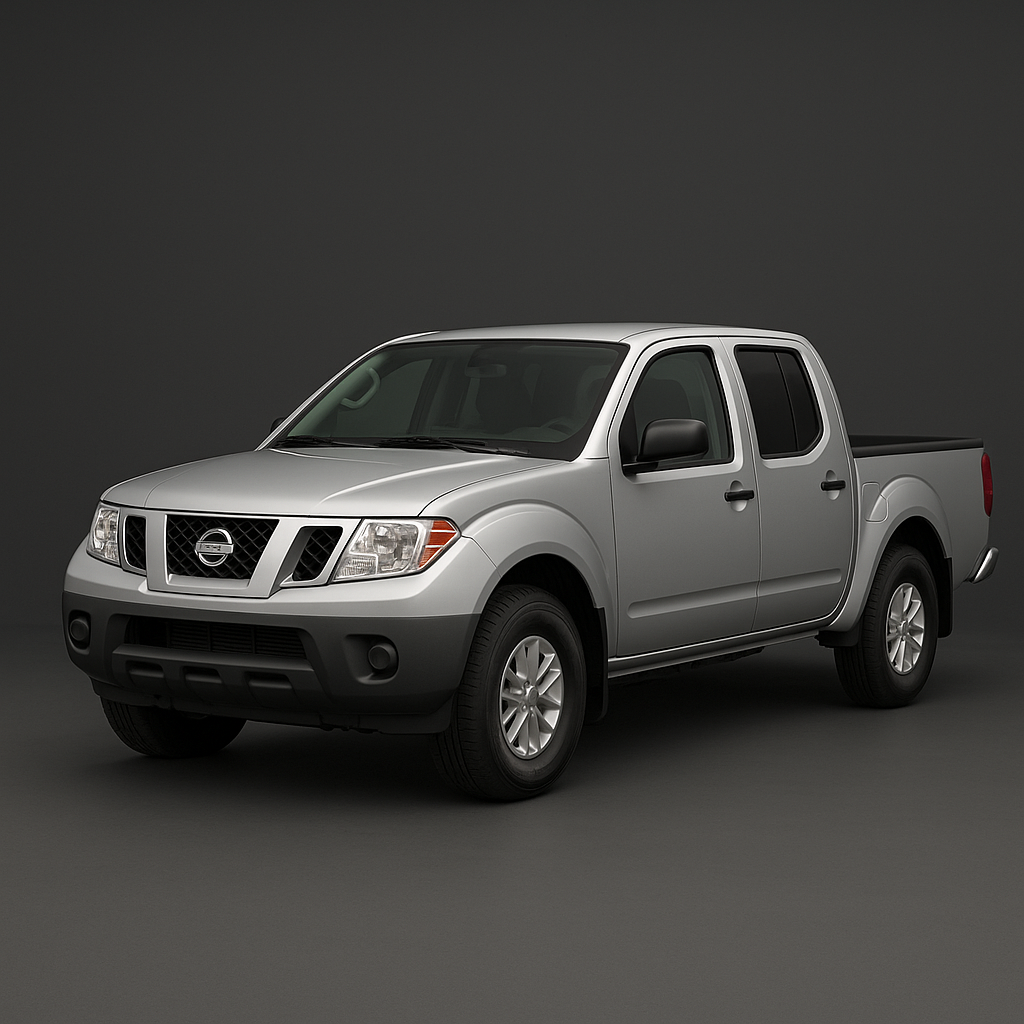

✨ AI-generated image for reference only

Vehicle Info

Nissan Frontier 2017
Generation
D40 (2005–2020)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel-end hardware (PCD, hub bore, thread size, lug count, torque) is the same across 2WD and 4WD and across trims; differences are in tire size, wheel diameter, width, and sometimes offset. Factory offset is approximately +30 mm for alloy wheels, with some database values ranging from +26 to +29 mm.

Wheel Specifications

Bolt pattern
6x114.3
Center bore
66.1 mm
Thread size
M12 x 1.25
Torque
133 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x717x7.518x7.5

Wheel & tire specs guide — Nissan Frontier 2017

The 2017 Nissan Frontier features a 6x114.3 bolt pattern, meaning it has 6 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 66.1mm, the wheels are secured with M12 x 1.25 threaded lug nuts torqued to 133 Nm.

Wheel-end hardware (PCD, hub bore, thread size, lug count, torque) is the same across 2WD and 4WD and across trims; differences are in tire size, wheel diameter, width, and sometimes offset. Factory offset is approximately +30 mm for alloy wheels, with some database values ranging from +26 to +29 mm.

From the factory, the Nissan Frontier 2017 is offered with OEM tires in the following sizes: 255/70R16, 265/65R17, 265/60R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
