2026 Nissan Rogue Bolt Pattern 5x114.3

Wheel and tire specifications for the Nissan Rogue 2026. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Nissan Rogue

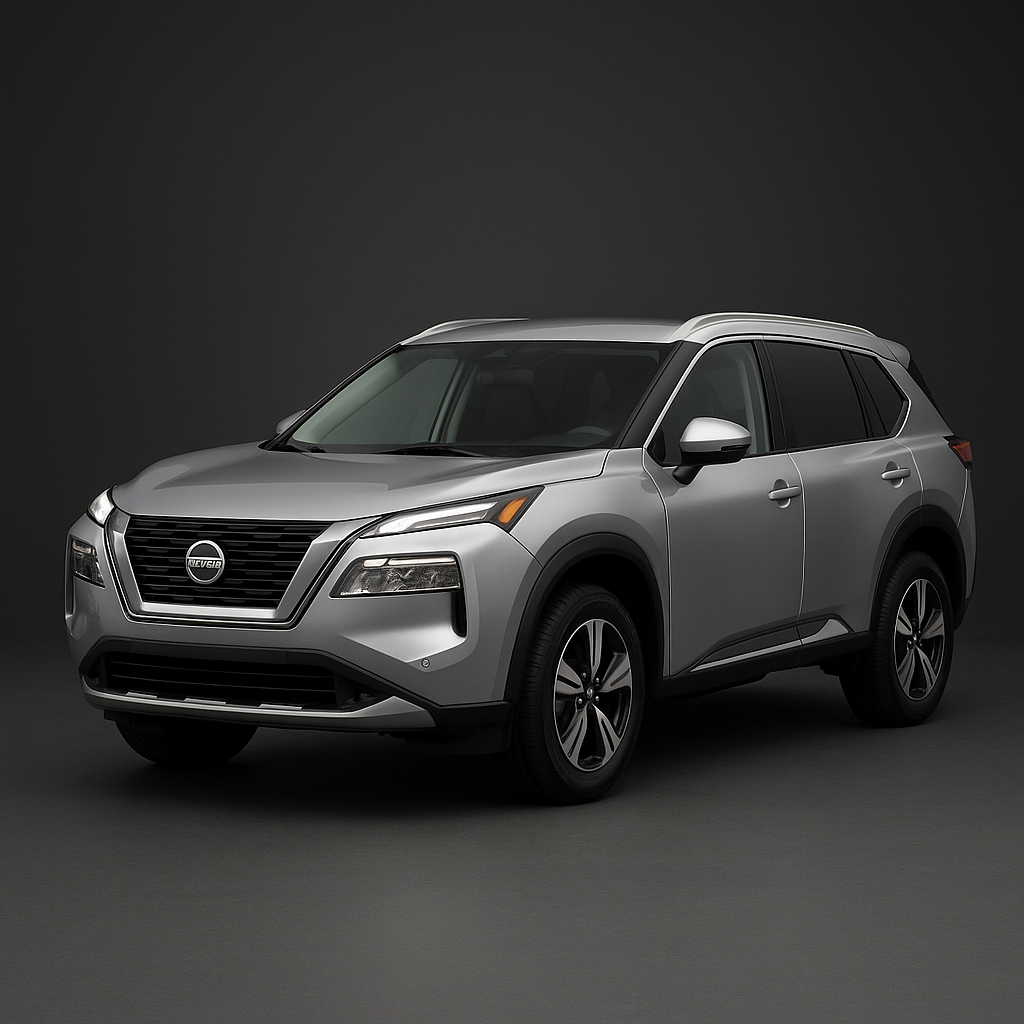

✨ AI-generated image for reference only

Vehicle Info

Nissan Rogue 2026
Generation
3rd Generation (2021–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel attachment specifications (PCD, hub bore, thread, torque, lug count) are common across FWD and AWD variants and all trims (S, SV, SL, Platinum). Differences are primarily in wheel diameter, width, and tire size. OEM offset is approximately +40mm, with aftermarket replacements often using +45mm.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
66.1 mm
Thread size
M12 x 1.25
Torque
113 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x7.518x7.519x7.5

Wheel & tire specs guide — Nissan Rogue 2026

The 2026 Nissan Rogue features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 66.1mm, the wheels are secured with M12 x 1.25 threaded lug nuts torqued to 113 Nm.

Wheel attachment specifications (PCD, hub bore, thread, torque, lug count) are common across FWD and AWD variants and all trims (S, SV, SL, Platinum). Differences are primarily in wheel diameter, width, and tire size. OEM offset is approximately +40mm, with aftermarket replacements often using +45mm.

From the factory, the Nissan Rogue 2026 is offered with OEM tires in the following sizes: 235/65R17, 235/60R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
