2013 Ram 1500 Bolt Pattern 5x139.7

Wheel and tire specifications for the Ram 1500 2013. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ram 1500

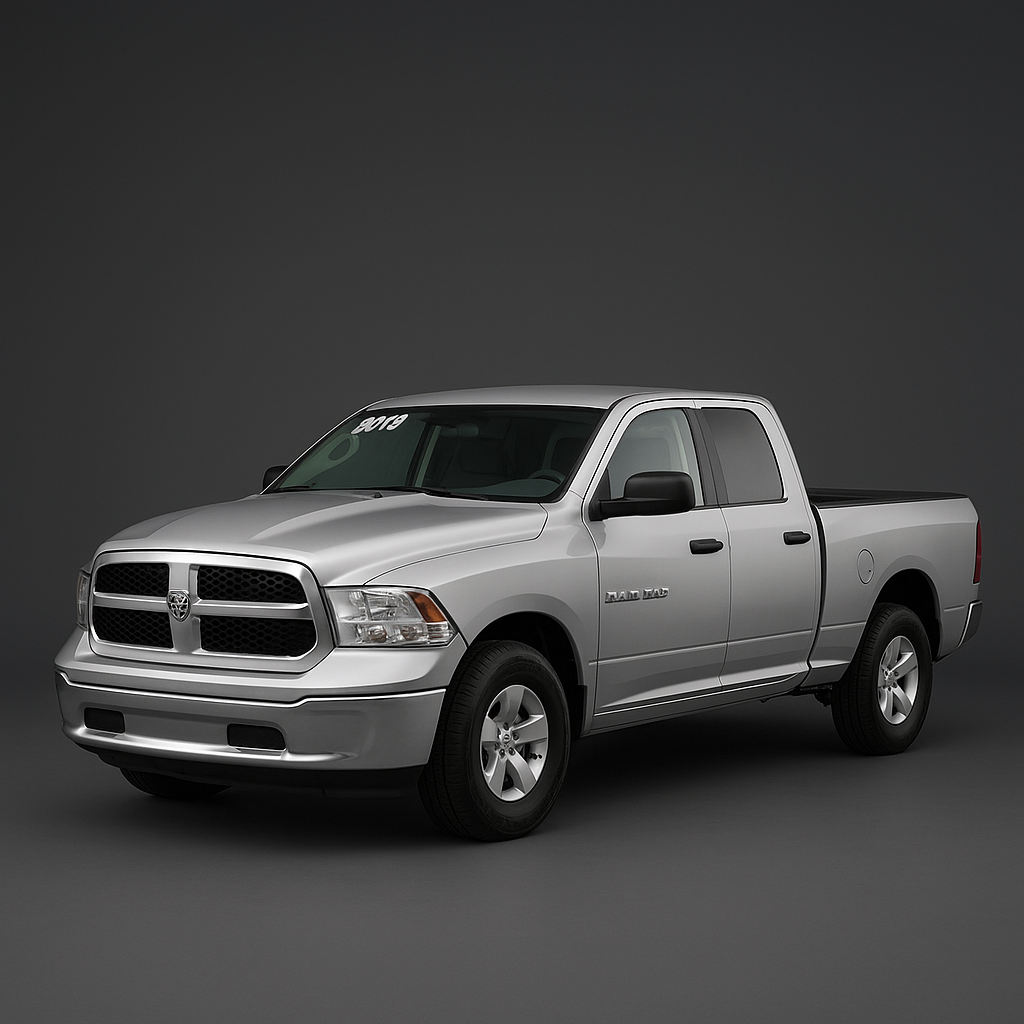

✨ AI-generated image for reference only

Vehicle Info

Ram 1500 2013
Generation
4th Generation (DS) (2009–2018)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All 2013 Ram 1500 half-ton trims (including 2WD and 4WD) share the same core wheel specifications (PCD, hub bore, stud holes, thread size). Different trims and option packages offer various OEM wheel diameters, widths, offsets, and tire sizes. The wheel tightening torque is approximately 130 ft-lb (176 Nm).

Wheel Specifications

Bolt pattern
5x139.7
Center bore
77.8 mm
Thread size
M14 x 1.5
Torque
176 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x717x820x822x9

Wheel & tire specs guide — Ram 1500 2013

The 2013 Ram 1500 features a 5x139.7 bolt pattern, meaning it has 5 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 77.8mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

All 2013 Ram 1500 half-ton trims (including 2WD and 4WD) share the same core wheel specifications (PCD, hub bore, stud holes, thread size). Different trims and option packages offer various OEM wheel diameters, widths, offsets, and tire sizes. The wheel tightening torque is approximately 130 ft-lb (176 Nm).

From the factory, the Ram 1500 2013 is offered with OEM tires in the following sizes: 265/70R17, 275/70R17, 275/60R20, 285/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
