2015 Ram 1500 Bolt Pattern 5x139.7

Wheel and tire specifications for the Ram 1500 2015. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Ram 1500

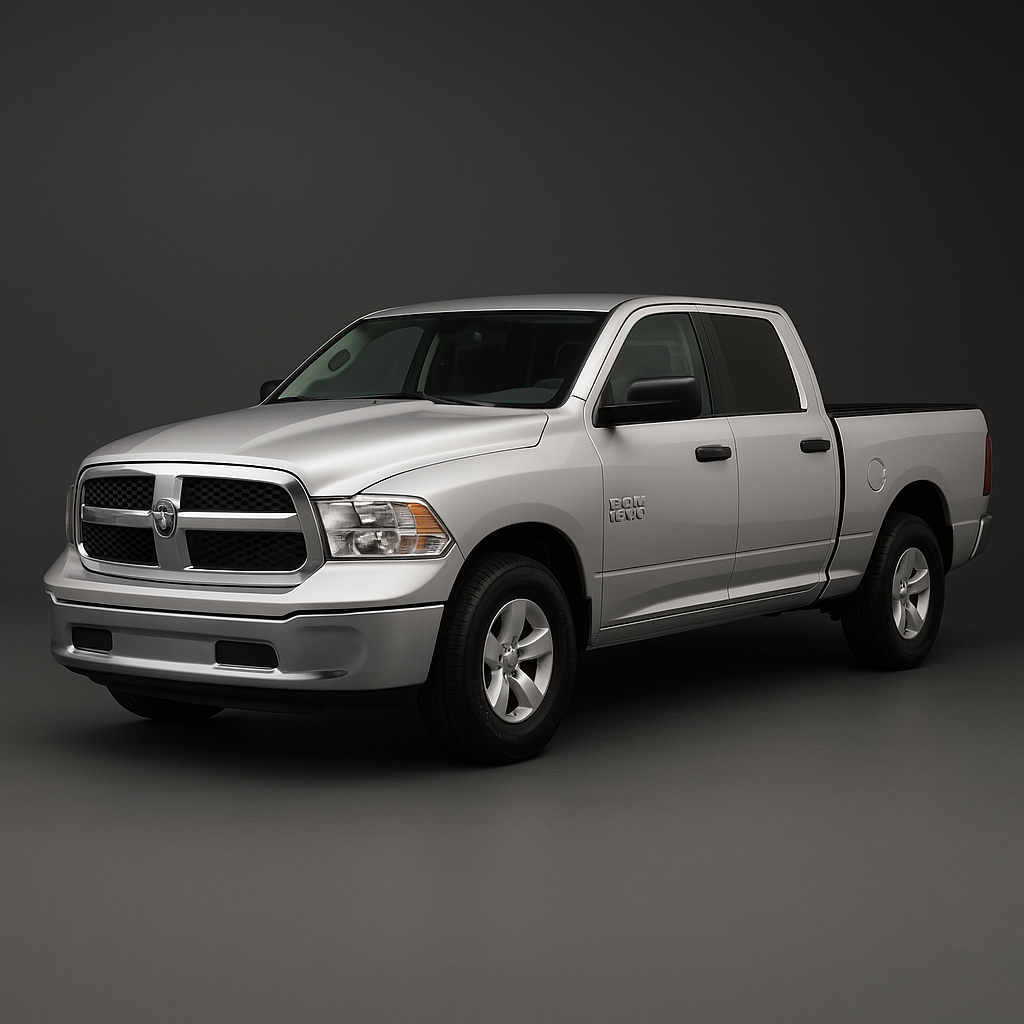

✨ AI-generated image for reference only

Vehicle Info

Ram 1500 2015
Generation
4th Generation (2009–2018)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Bolt pattern, hub bore, stud size, and lug torque do not change between 2WD and 4WD variants. OEM wheel diameter and tire size vary by trim and sometimes by drivetrain.

Wheel Specifications

Bolt pattern
5x139.7
Center bore
77.8 mm
Thread size
M14 x 1.5
Torque
176 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Wheel & tire specs guide — Ram 1500 2015

The 2015 Ram 1500 features a 5x139.7 bolt pattern, meaning it has 5 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 77.8mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

Bolt pattern, hub bore, stud size, and lug torque do not change between 2WD and 4WD variants. OEM wheel diameter and tire size vary by trim and sometimes by drivetrain.

From the factory, the Ram 1500 2015 is offered with OEM tires in the following sizes: 265/70R17, 275/70R17, 275/60R20, 285/70R17, 265/65R18, 275/65R18, 255/65R19, 285/55R20, 285/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
