2018 Ram 1500 Bolt Pattern 5x139.7

Wheel and tire specifications for the Ram 1500 2018. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

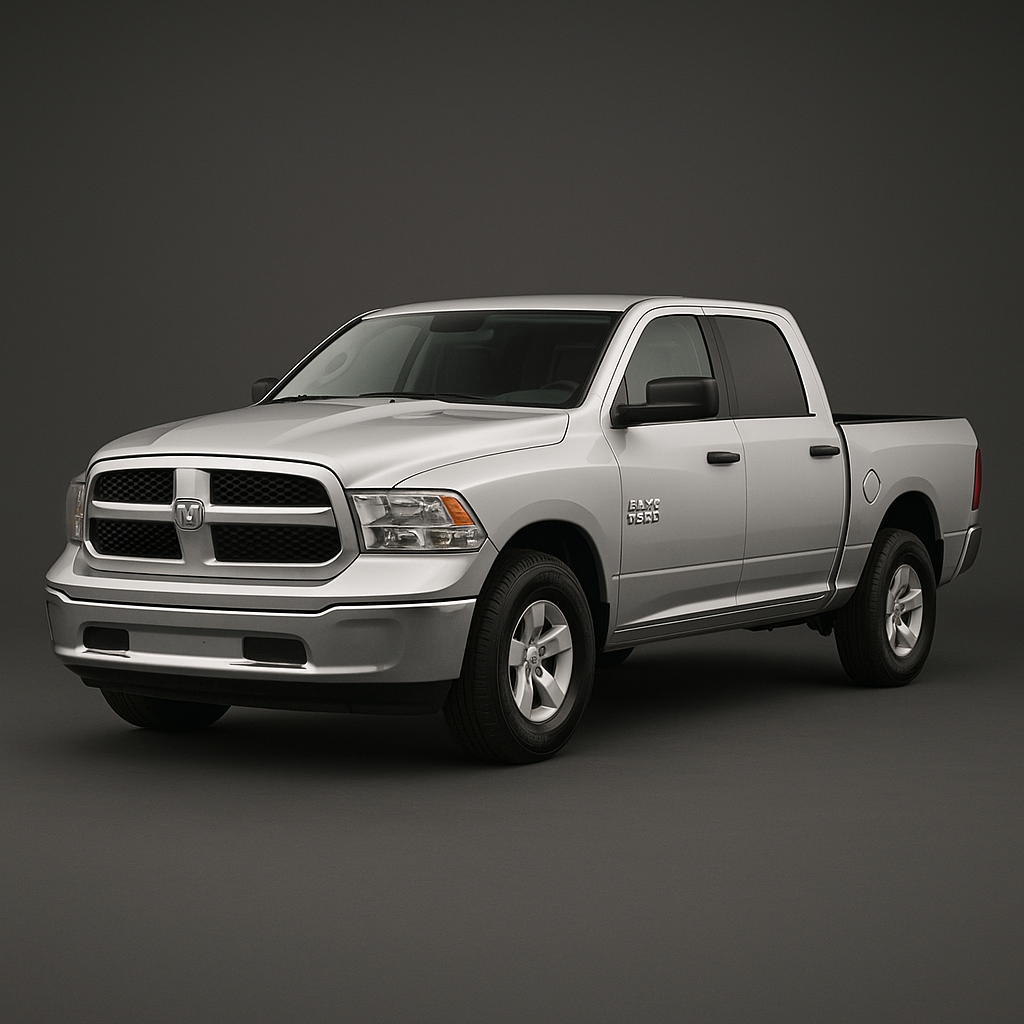

✨ AI-generated image for reference only

Vehicle Info

Ram 1500 2018

Generation

4th Generation (DS) (2013–2018)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Bolt pattern, hub bore, stud size, and lug torque are the same across all trims and drivetrains (2WD/4WD) for the 2018 Ram 1500. Differences are in wheel/tire dimensions and offsets.

Wheel Specifications

Bolt pattern

5x139.7

Center bore

77.8 mm

Thread size

M14 x 1.5

Torque

176 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x717x7.518x820x822x9

Wheel & tire specs guide — Ram 1500 2018

The 2018 Ram 1500 features a 5x139.7 bolt pattern, meaning it has 5 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 77.8mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

Bolt pattern, hub bore, stud size, and lug torque are the same across all trims and drivetrains (2WD/4WD) for the 2018 Ram 1500. Differences are in wheel/tire dimensions and offsets.

From the factory, the Ram 1500 2018 is offered with OEM tires in the following sizes: 235/75R17, 255/70R17, 265/70R17, LT275/65R18, 275/60R20, 285/45R22. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
