2020 Ram 2500 Bolt Pattern 8x165.1

Wheel and tire specifications for the Ram 2500 2020. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

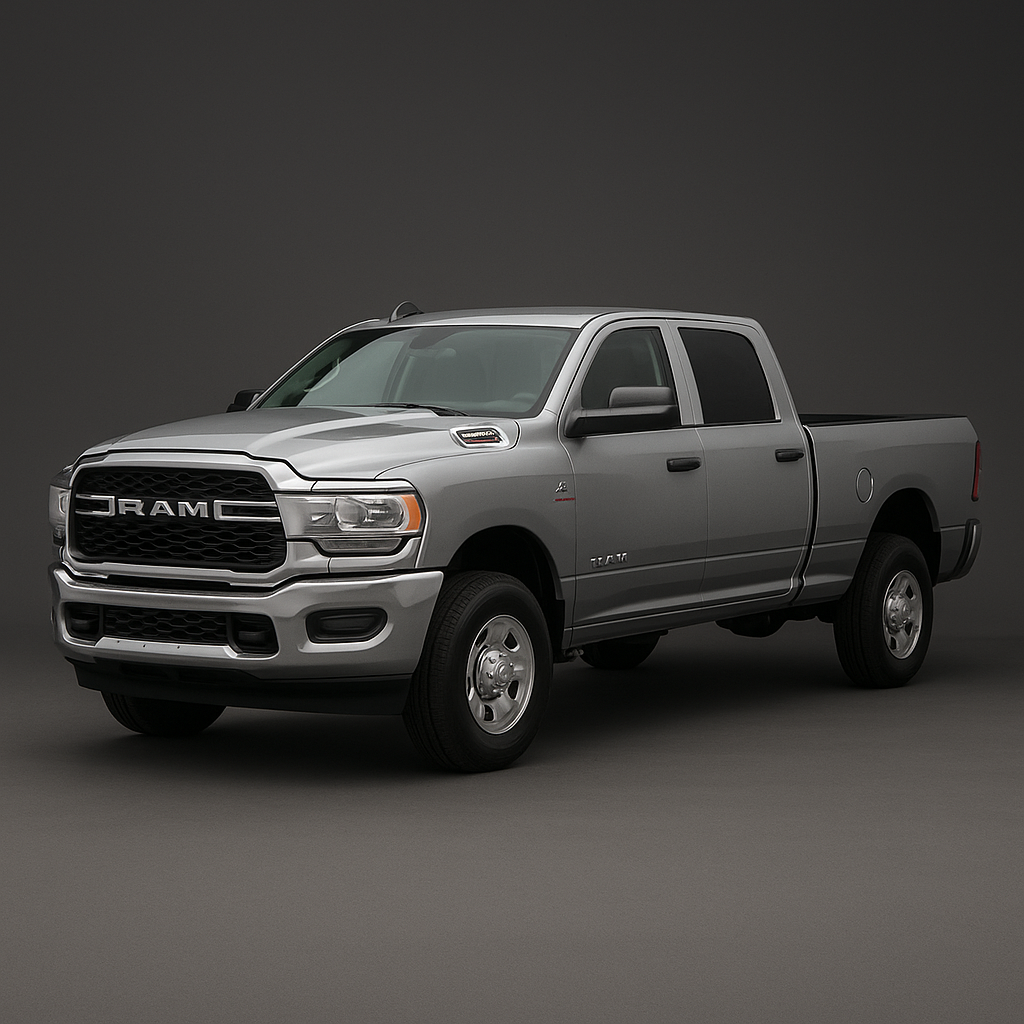

✨ AI-generated image for reference only

Vehicle Info

Ram 2500 2020

Generation

5th Generation (2019–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

PCD, hub bore, stud count/size, and torque do not vary by drivetrain (2WD/4WD) or trim. Wheel and tire fitment differences are by trim and appearance/off-road packages.

Wheel Specifications

Bolt pattern

8x165.1

Center bore

121.3 mm

Thread size

M14 x 1.5

Torque

176 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x7.518x820x8

Wheel & tire specs guide — Ram 2500 2020

The 2020 Ram 2500 features a 8x165.1 bolt pattern, meaning it has 8 lug nuts arranged on a 165.1mm diameter circle, the center bore measures 121.3mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

PCD, hub bore, stud count/size, and torque do not vary by drivetrain (2WD/4WD) or trim. Wheel and tire fitment differences are by trim and appearance/off-road packages.

From the factory, the Ram 2500 2020 is offered with OEM tires in the following sizes: LT245/70R17, LT275/70R18, LT285/60R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
