2023 Ram 2500 Bolt Pattern 8x165.1

Wheel and tire specifications for the Ram 2500 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

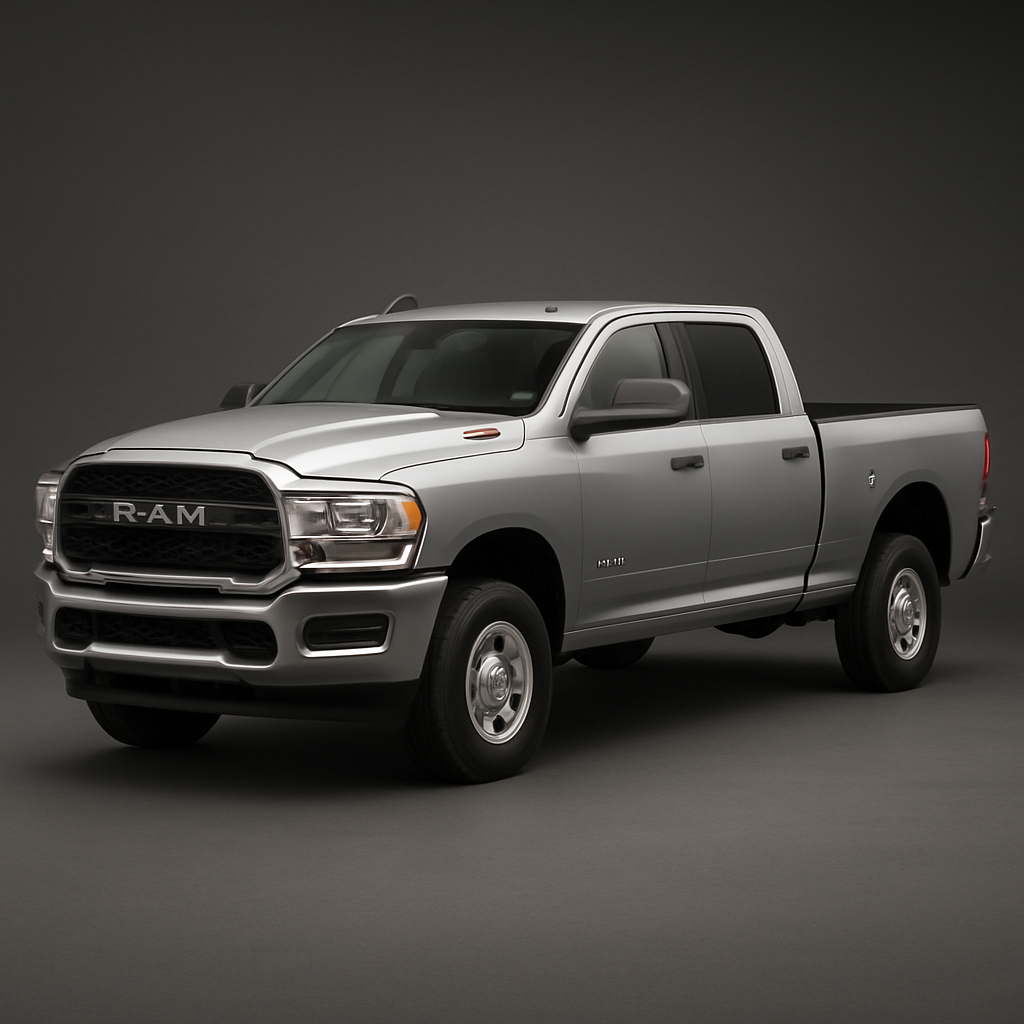

✨ AI-generated image for reference only

Vehicle Info

Ram 2500 2023

Generation

5th Generation (2019–2026)

Trim

Standard Trim

Modification

AI Verified Specs

Note

All 2023 Ram 2500 HD models use the same hub pattern, stud size, and lug count regardless of 2WD/4WD or trim. Differences occur in wheel diameter, width, tire size/type, and wheel material.

Wheel Specifications

Bolt pattern

8x165.1

Center bore

121.3 mm

Thread size

M14 x 1.5

Torque

176 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x7.518x820x8

Wheel & tire specs guide — Ram 2500 2023

The 2023 Ram 2500 features a 8x165.1 bolt pattern, meaning it has 8 lug nuts arranged on a 165.1mm diameter circle, the center bore measures 121.3mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 176 Nm.

All 2023 Ram 2500 HD models use the same hub pattern, stud size, and lug count regardless of 2WD/4WD or trim. Differences occur in wheel diameter, width, tire size/type, and wheel material.

From the factory, the Ram 2500 2023 is offered with OEM tires in the following sizes: LT245/70R17, LT275/70R18, LT285/60R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
