2023 Suzuki Swift Bolt Pattern 4x100

Wheel and tire specifications for the Suzuki Swift 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Suzuki Swift

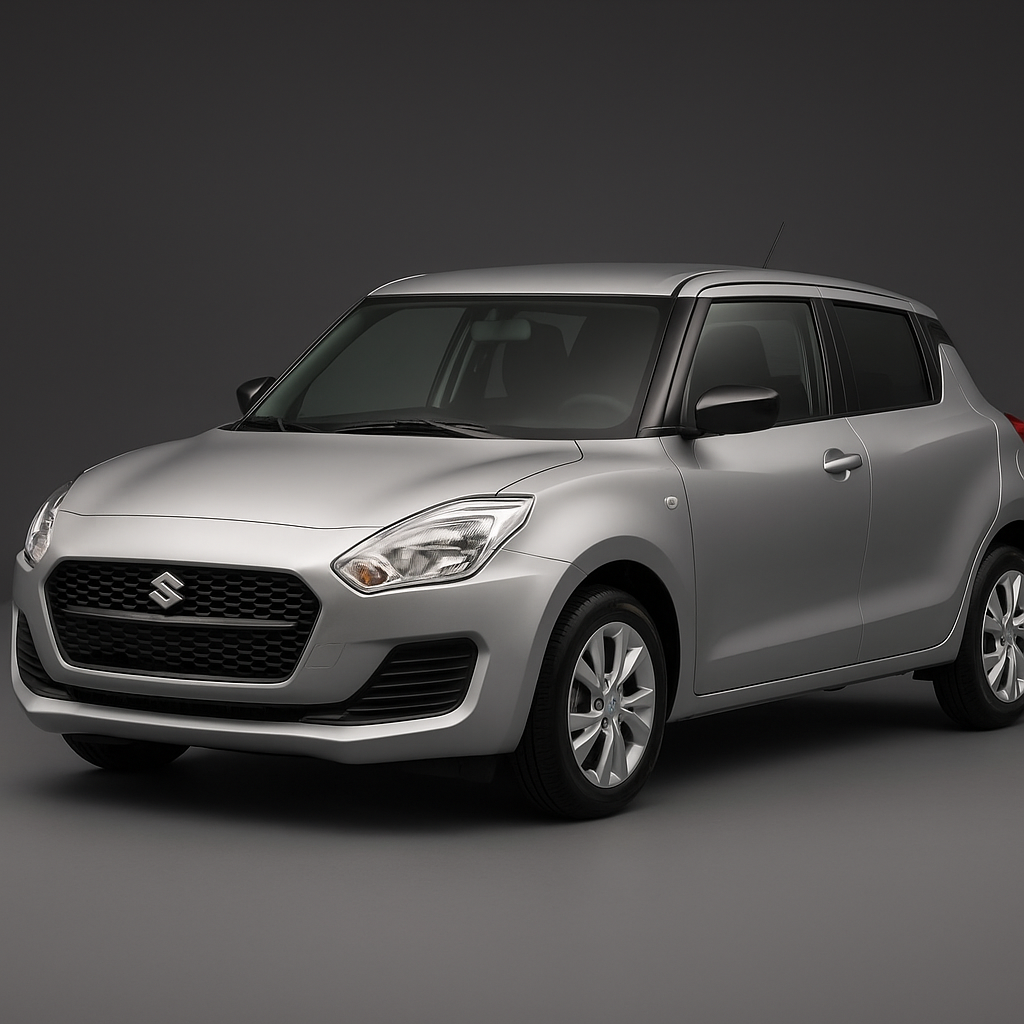

✨ AI-generated image for reference only

Vehicle Info

Suzuki Swift 2023
Generation
4th Generation (A2L) (2017–2023)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Specifications are based on the global 2023 Suzuki Swift platform, as a USDM-specific model was not broadly sold. No significant wheel-geometry differences found between 2WD and 4WD variants. Always verify against the owner’s manual or service information for the specific vehicle.

Wheel Specifications

Bolt pattern
4x100
Center bore
54.1 mm
Thread size
M12 x 1.25
Torque
100 Nm
Lugs
4
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
15x516x6

Wheel & tire specs guide — Suzuki Swift 2023

The 2023 Suzuki Swift features a 4x100 bolt pattern, meaning it has 4 lug nuts arranged on a 100mm diameter circle, the center bore measures 54.1mm, the wheels are secured with M12 x 1.25 threaded lug nuts torqued to 100 Nm.

Specifications are based on the global 2023 Suzuki Swift platform, as a USDM-specific model was not broadly sold. No significant wheel-geometry differences found between 2WD and 4WD variants. Always verify against the owner’s manual or service information for the specific vehicle.

From the factory, the Suzuki Swift 2023 is offered with OEM tires in the following sizes: 175/65R15, 185/55R16. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
