2023 Tesla Model Y Bolt Pattern 5x114.3

Wheel and tire specifications for the Tesla Model Y 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

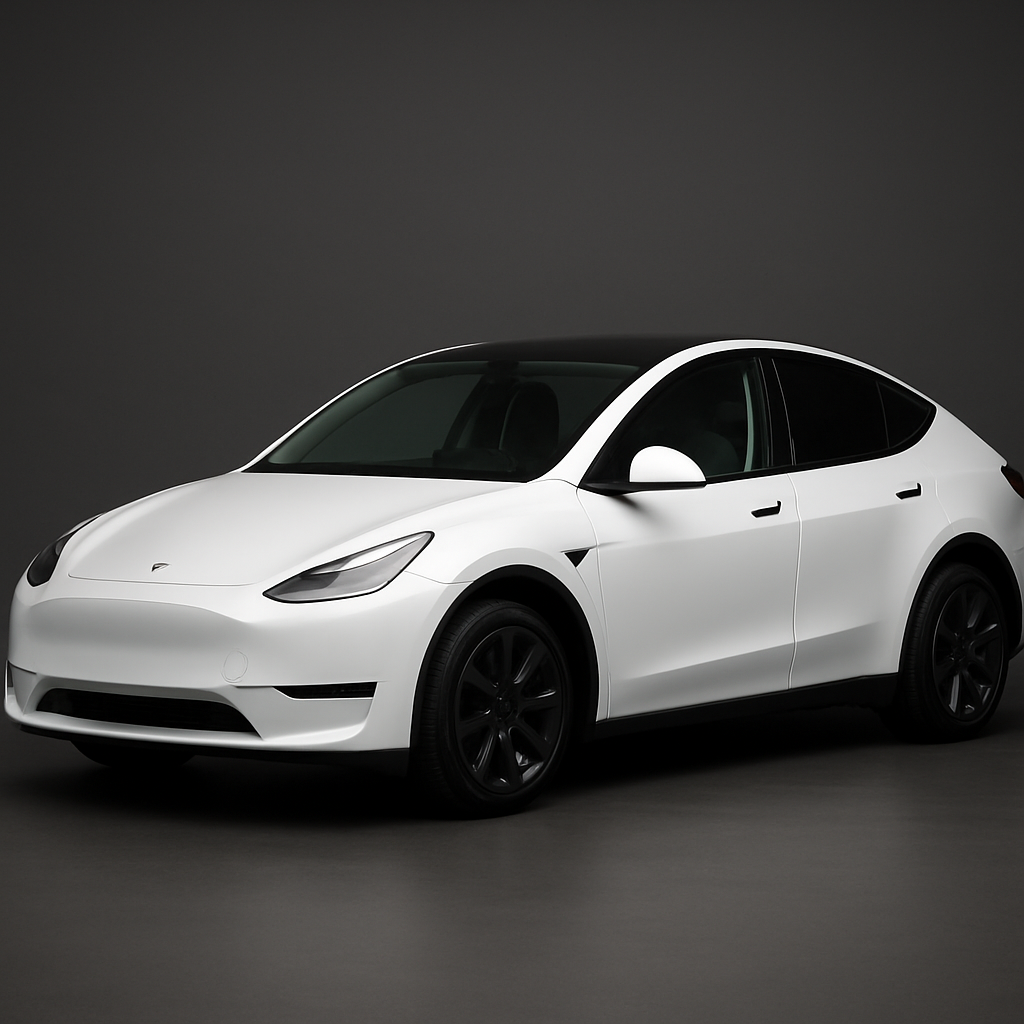

✨ AI-generated image for reference only

Vehicle Info

Tesla Model Y 2023

Generation

5th Generation (2020–2026)

Trim

All Trims

Modification

AI Verified Specs

Note

All 2023 US Model Y trims share the same basic wheel hardware (bolt pattern, hub bore, lug size, torque, number of lugs) and direct TPMS. Wheel/tire sizes and offsets differ by trim and wheel package. The 18x8.5J ET 35.5 wheel is documented in Tesla's manual but is more associated with later/other-market trims than mainstream 2023 US configurations.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

64.1 mm

Thread size

M14 x 1.5

Torque

175 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

18x8.519x9.520x9.521x9.521x10.5

Wheel & tire specs guide — Tesla Model Y 2023

The 2023 Tesla Model Y features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 64.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 175 Nm.

From the factory, the Tesla Model Y 2023 is offered with OEM tires in the following sizes: 235/55R18, 255/45R19, 255/40R20, 255/35R21, 275/35R21. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
