2023 Toyota Camry Bolt Pattern 5x114.3

Wheel and tire specifications for the Toyota Camry 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

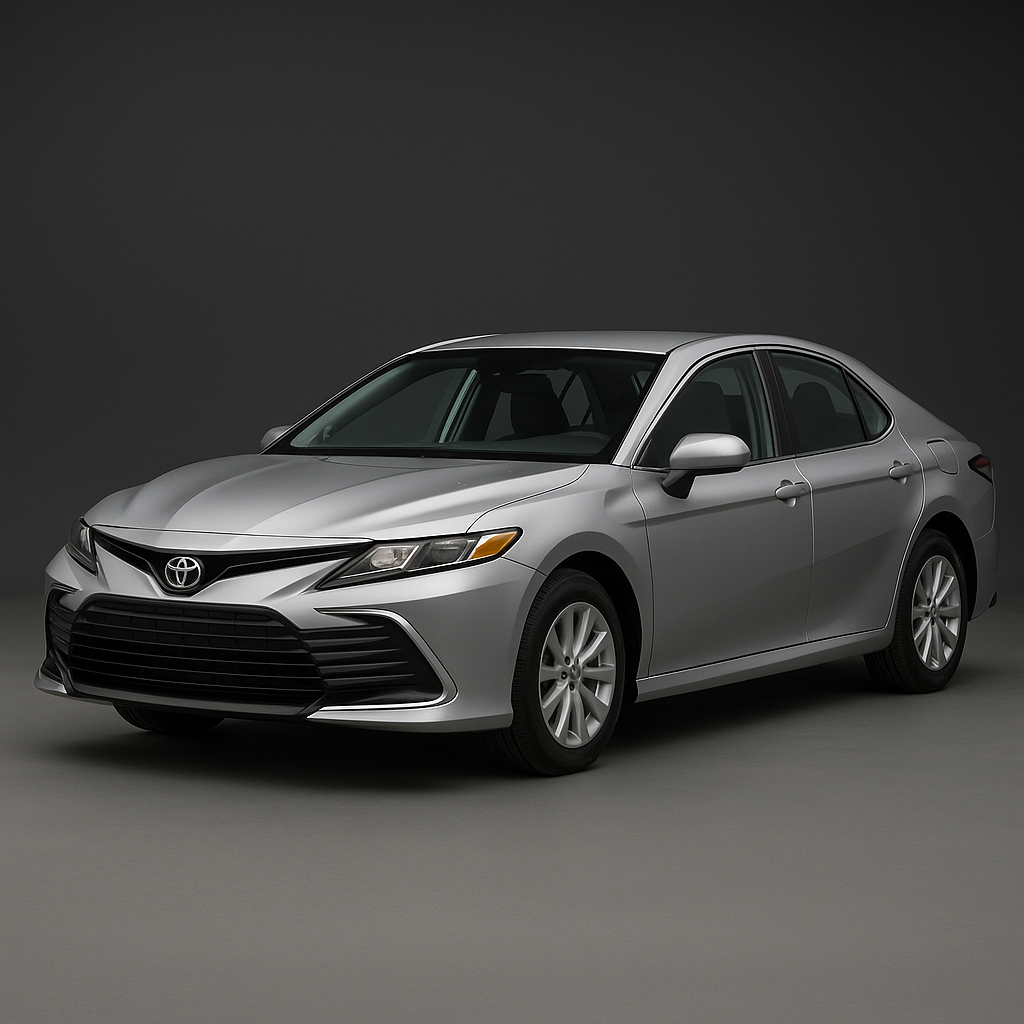

✨ AI-generated image for reference only

Vehicle Info

Toyota Camry 2023

Generation

XV70 (2018–2024)

Trim

Standard Trim

Modification

AI Verified Specs

Note

PCD, hub bore, lug count, and thread size are the same across all trims and drivetrains (FWD and AWD). Differences are in wheel diameter/width/offset and matching tire sizes by grade.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

60.1 mm

Thread size

M12 x 1.5

Torque

103 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

16x6.517x7.518x819x8

Wheel & tire specs guide — Toyota Camry 2023

The 2023 Toyota Camry features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

PCD, hub bore, lug count, and thread size are the same across all trims and drivetrains (FWD and AWD). Differences are in wheel diameter/width/offset and matching tire sizes by grade.

From the factory, the Toyota Camry 2023 is offered with OEM tires in the following sizes: 205/65R16, 215/55R17, 235/45R18, 235/40R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
