2023 Toyota Rav4 Bolt Pattern 5x114.3

Wheel and tire specifications for the Toyota Rav4 2023. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Toyota Rav4

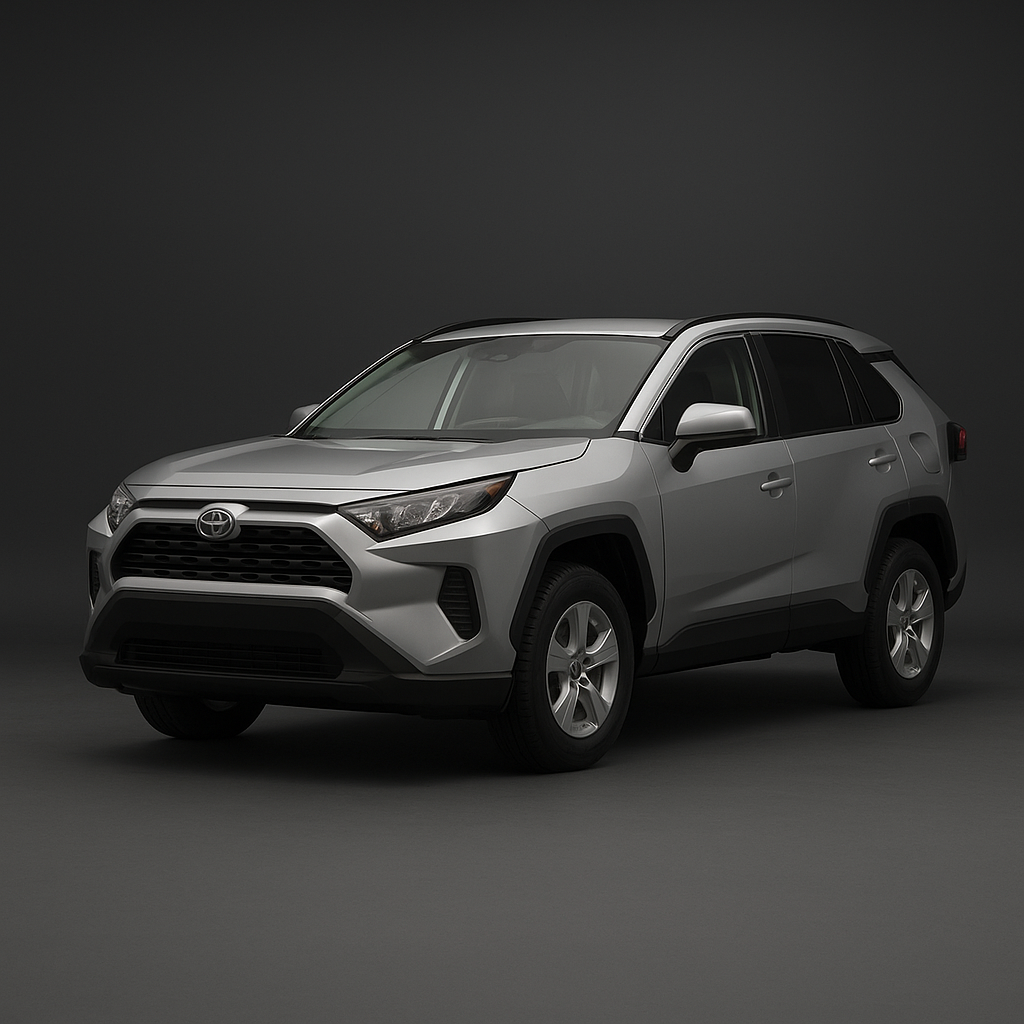

✨ AI-generated image for reference only

Vehicle Info

Toyota Rav4 2023
Generation
5th Generation (2019–2026)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Wheel and tire specifications vary by trim and wheel package, not by 2WD vs 4WD hardware. 20 inch option is for RAV4 Prime.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
60.1 mm
Thread size
M12 x 1.5
Torque
103 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
17x718x719x7.520x8

Wheel & tire specs guide — Toyota Rav4 2023

The 2023 Toyota Rav4 features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

Wheel and tire specifications vary by trim and wheel package, not by 2WD vs 4WD hardware. 20 inch option is for RAV4 Prime.

From the factory, the Toyota Rav4 2023 is offered with OEM tires in the following sizes: 225/65R17, 225/60R18, 235/55R19, 245/45R20. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
