2024 Toyota Rav4 Bolt Pattern 5x114.3

Wheel and tire specifications for the Toyota Rav4 2024. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

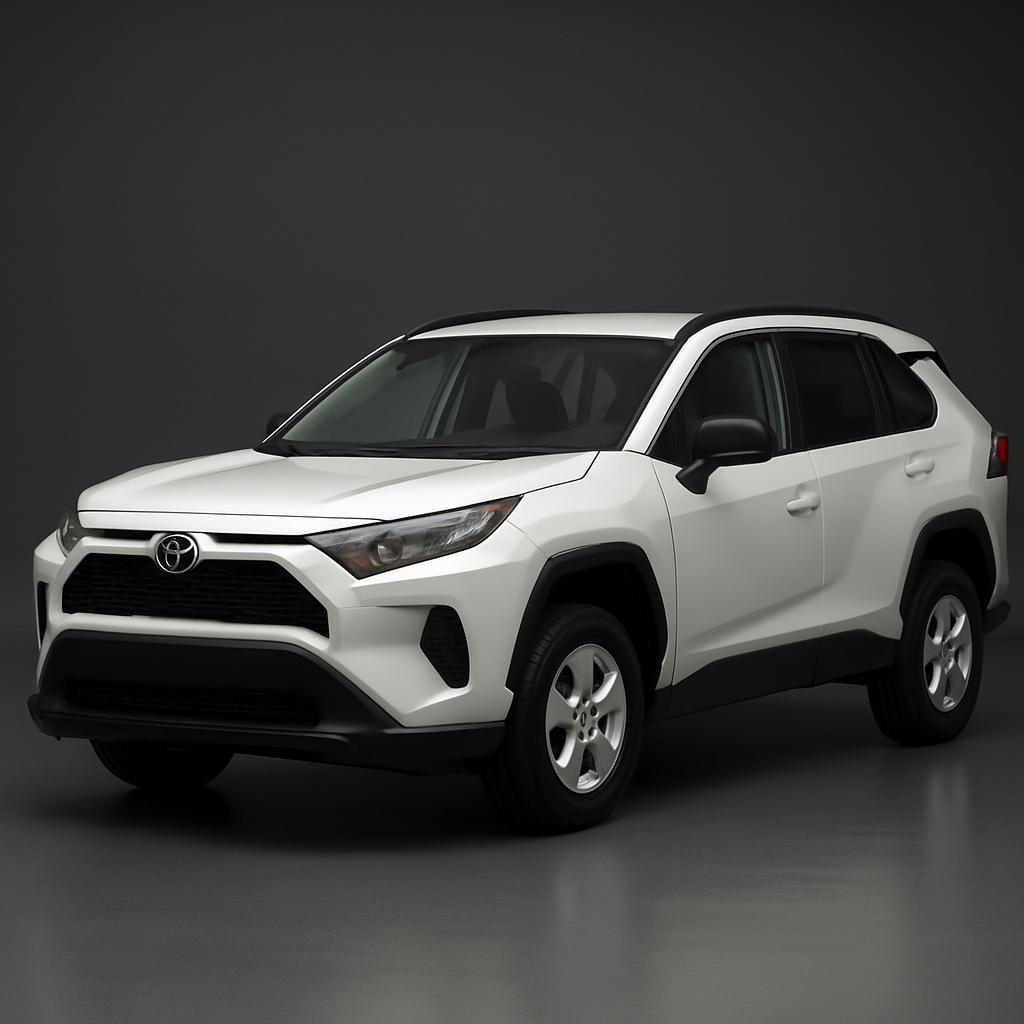

✨ AI-generated image for reference only

Vehicle Info

Toyota Rav4 2024

Generation

5th Generation (XA50) (2019–2026)

Trim

Standard Trim (Gasoline/Hybrid, non-Prime)

Modification

AI Verified Specs

Note

This data applies to the 2024 Toyota RAV4 USDM gasoline and hybrid models (non-Prime). Drivetrain (FWD vs AWD) does not change the basic bolt pattern, center bore, thread size, or lug count. Trims differ in wheel diameter, width, tire size, and offset. TPMS is standard on all models; many trims use indirect TPMS, some may use direct TPMS.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

60.1 mm

Thread size

M12 x 1.5

Torque

103 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x718x719x7.5

Wheel & tire specs guide — Toyota Rav4 2024

The 2024 Toyota Rav4 features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

From the factory, the Toyota Rav4 2024 is offered with OEM tires in the following sizes: 225/65R17, 225/60R18, 235/55R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
