2014 Toyota Sienna Bolt Pattern 5x114.3

Wheel and tire specifications for the Toyota Sienna 2014. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Toyota Sienna

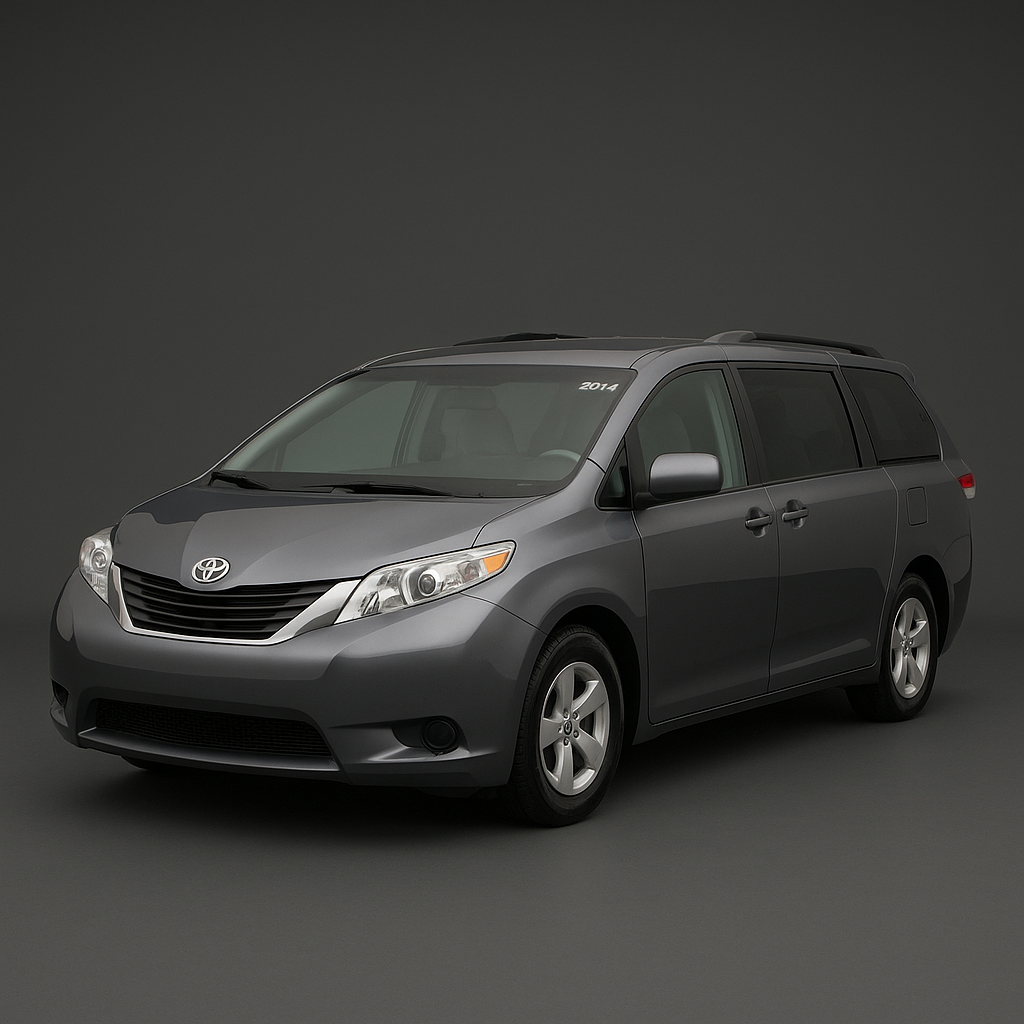

✨ AI-generated image for reference only

Vehicle Info

Toyota Sienna 2014
Generation
3rd Generation (2011–2020)
Trim
Standard Trim
Modification
AI Verified Specs
Note

Available in FWD and AWD variants. Wheel and tire specifications are trim-dependent, not drivetrain-dependent.

Wheel Specifications

Bolt pattern
5x114.3
Center bore
60.1 mm
Thread size
M12 x 1.5
Torque
103 Nm
Lugs
5
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x6.517x6.517x718x719x7

Wheel & tire specs guide — Toyota Sienna 2014

The 2014 Toyota Sienna features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

Available in FWD and AWD variants. Wheel and tire specifications are trim-dependent, not drivetrain-dependent.

From the factory, the Toyota Sienna 2014 is offered with OEM tires in the following sizes: 215/65R16, 225/65R17, 235/60R17, 235/55R18, 235/50R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
