2019 Toyota Sienna Bolt Pattern 5x114.3

Wheel and tire specifications for the Toyota Sienna 2019. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

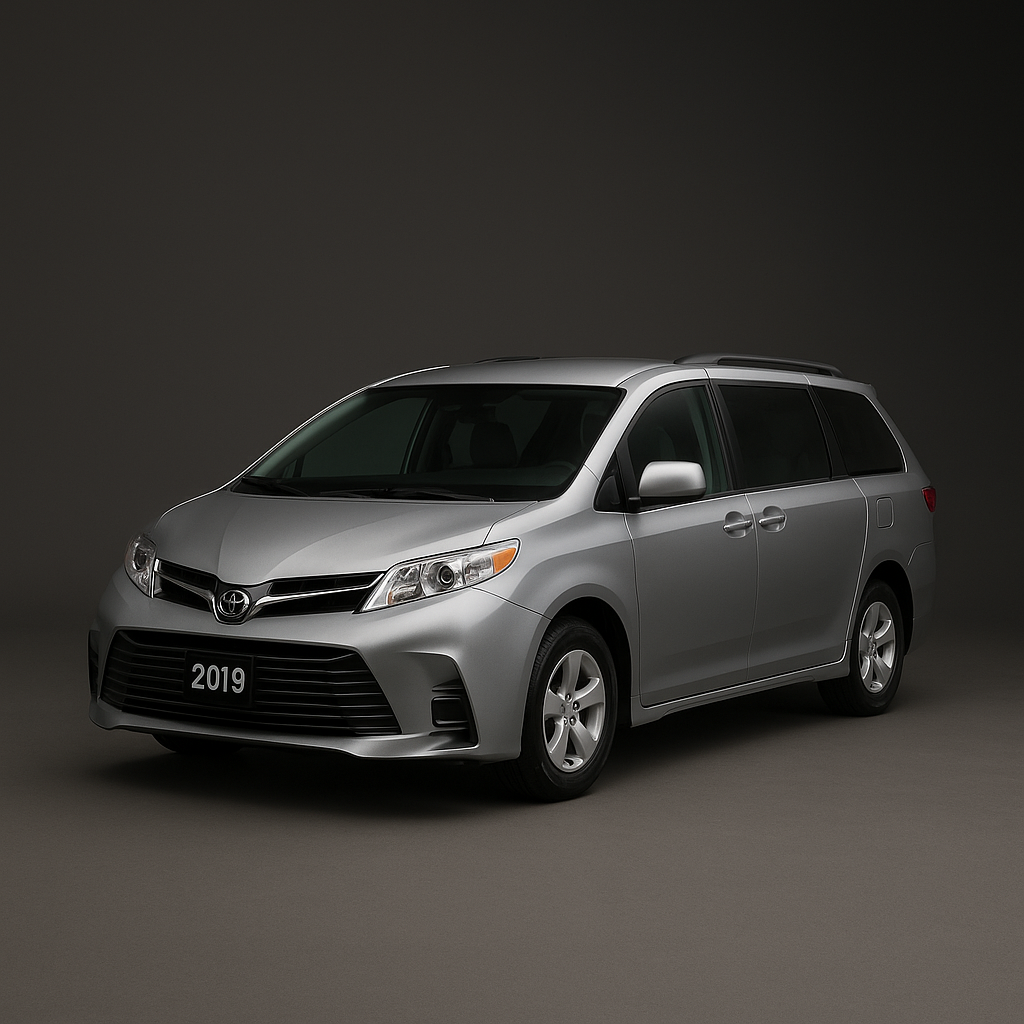

✨ AI-generated image for reference only

Vehicle Info

Toyota Sienna 2019

Generation

XL30 (Third Generation, Second Facelift) (2018–2020)

Trim

Standard Trim

Modification

AI Verified Specs

Note

All trims (L, LE FWD/AWD, SE FWD/AWD, XLE FWD/AWD, Limited FWD/AWD) share the same bolt pattern, center bore, lug count, and thread size. Differences are in wheel diameter and tire size.

Wheel Specifications

Bolt pattern

5x114.3

Center bore

60.1 mm

Thread size

M12 x 1.5

Torque

103 Nm

Lugs

Fastener type

lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

17x718x719x7

Wheel & tire specs guide — Toyota Sienna 2019

The 2019 Toyota Sienna features a 5x114.3 bolt pattern, meaning it has 5 lug nuts arranged on a 114.3mm diameter circle, the center bore measures 60.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 103 Nm.

All trims (L, LE FWD/AWD, SE FWD/AWD, XLE FWD/AWD, Limited FWD/AWD) share the same bolt pattern, center bore, lug count, and thread size. Differences are in wheel diameter and tire size.

From the factory, the Toyota Sienna 2019 is offered with OEM tires in the following sizes: 235/60R17, 235/55R18, 235/50R19. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
