2017 Toyota Tacoma Bolt Pattern 6x139.7

Wheel and tire specifications for the Toyota Tacoma 2017. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

Toyota Tacoma

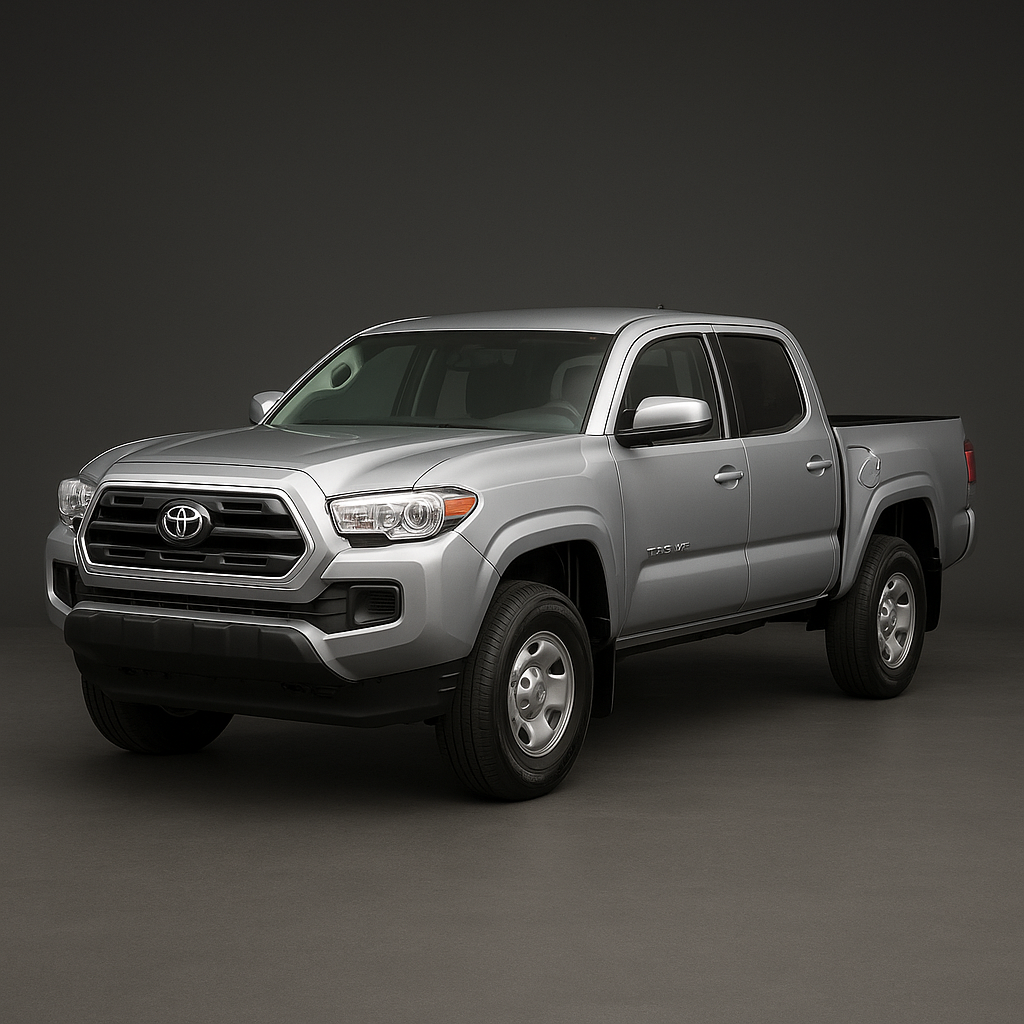

✨ AI-generated image for reference only

Vehicle Info

Toyota Tacoma 2017
Generation
3rd Generation (2016–2023)
Trim
Standard Trim
Modification
AI Verified Specs
Note

All 2WD and 4WD trims (SR, SR5, TRD Sport, TRD Off-Road, Limited) share the same bolt pattern, hub bore, stud count, and lug thread size. Differences are primarily in OEM wheel and tire sizes. 18-inch wheels are less common for USDM 2017 models but are listed as OE-type for 3rd-gen Tacoma.

Wheel Specifications

Bolt pattern
6x139.7
Center bore
106.1 mm
Thread size
M12 x 1.5
Torque
113 Nm
Lugs
6
Fastener type
lug nuts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes
16x717x717x7.518x7.5

Wheel & tire specs guide — Toyota Tacoma 2017

The 2017 Toyota Tacoma features a 6x139.7 bolt pattern, meaning it has 6 lug nuts arranged on a 139.7mm diameter circle, the center bore measures 106.1mm, the wheels are secured with M12 x 1.5 threaded lug nuts torqued to 113 Nm.

All 2WD and 4WD trims (SR, SR5, TRD Sport, TRD Off-Road, Limited) share the same bolt pattern, hub bore, stud count, and lug thread size. Differences are primarily in OEM wheel and tire sizes. 18-inch wheels are less common for USDM 2017 models but are listed as OE-type for 3rd-gen Tacoma.

From the factory, the Toyota Tacoma 2017 is offered with OEM tires in the following sizes: 245/75R16, 265/70R16, 265/65R17, 265/60R18. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
