2019 Volkswagen Atlas Bolt Pattern 5x112

Wheel and tire specifications for the Volkswagen Atlas 2019. Find the bolt pattern, rim size, center bore and more. Most available tire prices include installation at Avansys Tire Shop, Miami Gardens.

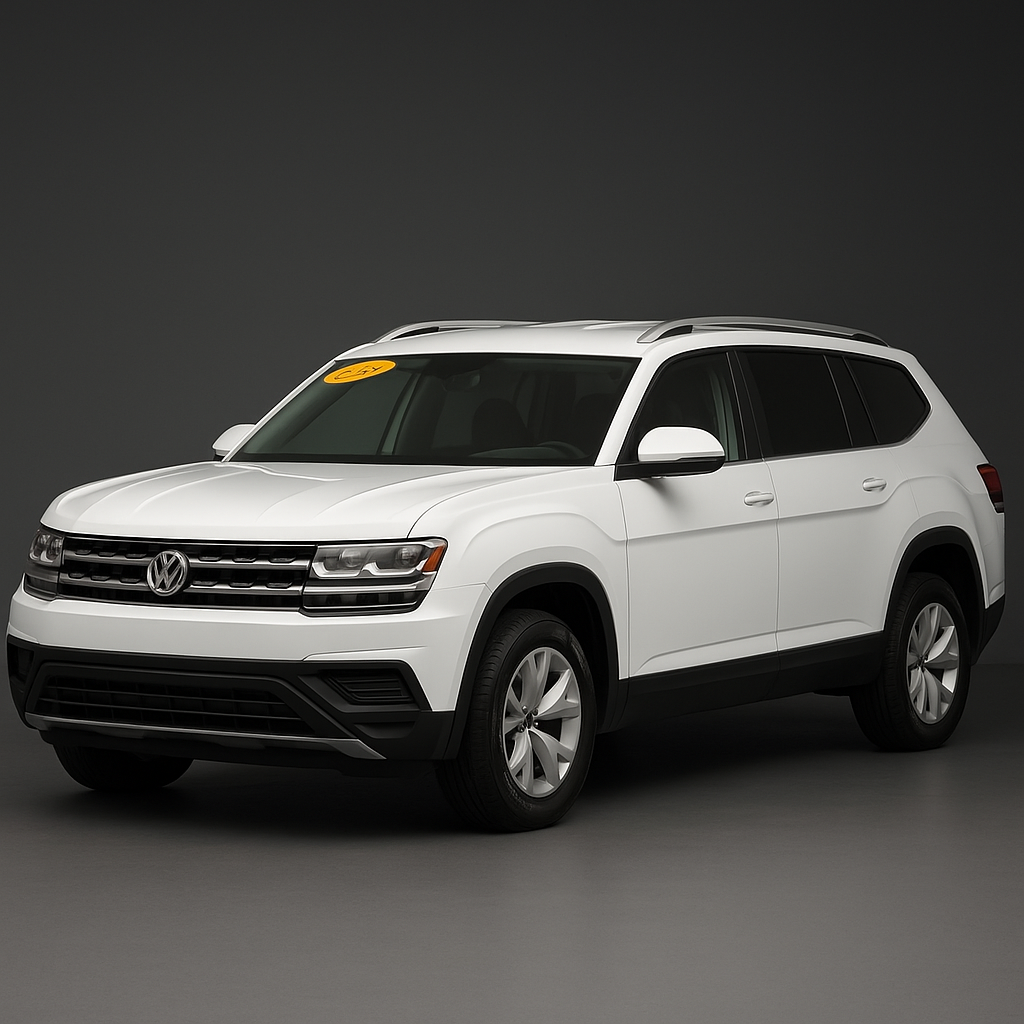

✨ AI-generated image for reference only

Vehicle Info

Volkswagen Atlas 2019

Generation

1st Generation (2017–2023)

Trim

Standard Trim

Modification

AI Verified Specs

Note

Bolt pattern, center bore, lug count, and thread size are the same across FWD (2.0T) and 4MOTION (V6) variants. Wheel width for 21-inch wheels may also be 8J for some SEL Premium packages.

Wheel Specifications

Bolt pattern

5x112

Center bore

57.1 mm

Thread size

M14 x 1.5

Torque

120 Nm

Lugs

Fastener type

lug bolts

Tire & Wheel Sizes

Tire sizes

Click a size to see available tires.

Rim sizes

18x820x821x9

Wheel & tire specs guide — Volkswagen Atlas 2019

The 2019 Volkswagen Atlas features a 5x112 bolt pattern, meaning it has 5 lug nuts arranged on a 112mm diameter circle, the center bore measures 57.1mm, the wheels are secured with M14 x 1.5 threaded lug nuts torqued to 120 Nm.

Bolt pattern, center bore, lug count, and thread size are the same across FWD (2.0T) and 4MOTION (V6) variants. Wheel width for 21-inch wheels may also be 8J for some SEL Premium packages.

From the factory, the Volkswagen Atlas 2019 is offered with OEM tires in the following sizes: 245/60R18, 255/50R20, 265/45R21. These sizes determine compatibility when shopping for replacement or upgraded tires and wheels.
